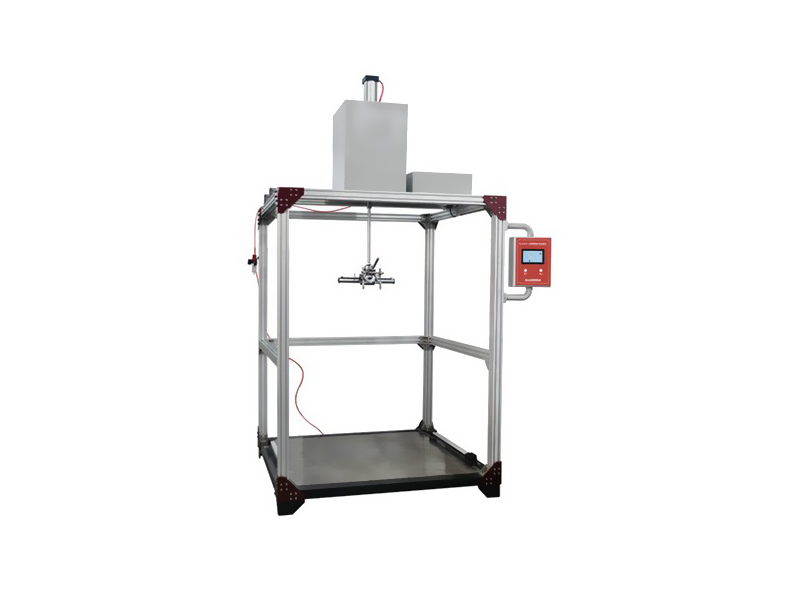

Luggage vibration impact testing machine

Luggage vibration impact testing machine

The purpose is to test the strength of the fasteners, sewing and overall structure of the luggage, load the luggage with the specified load, and perform an impact test at a speed of 20 times per minute. The test results can be used as a reference for product improvement.

Description

The purpose is to test the strength of the fasteners, sewing and overall structure of the luggage, load the luggage with the specified load, and perform an impact test at a speed of 20 times per minute. The test results can be used as a reference for product improvement.



Parameters of  Luggage vibration impact testing machine

Way to controlColor touch screen (convenient and practical), man-machine interface operation mode
Impact height150mm0-8 inches adjustable
Vibration methodspring
Spring constant17.54+0.88N/mm
Times setting0~99999999 automatic shutdown
Test speed20+2 times/min
Test methodTwo kinds (1 impact 2 suction cups do not release reciprocating fatigue)
AccessibilityWith infrared automatic induction device, it will automatically stop when the test piece is dropped in the middle.
Volume140x120x200cm (LxWxH)
WeightAbout 180kg
Power supplyAC~220V50HZ
Gas sourcePrepared by customer
