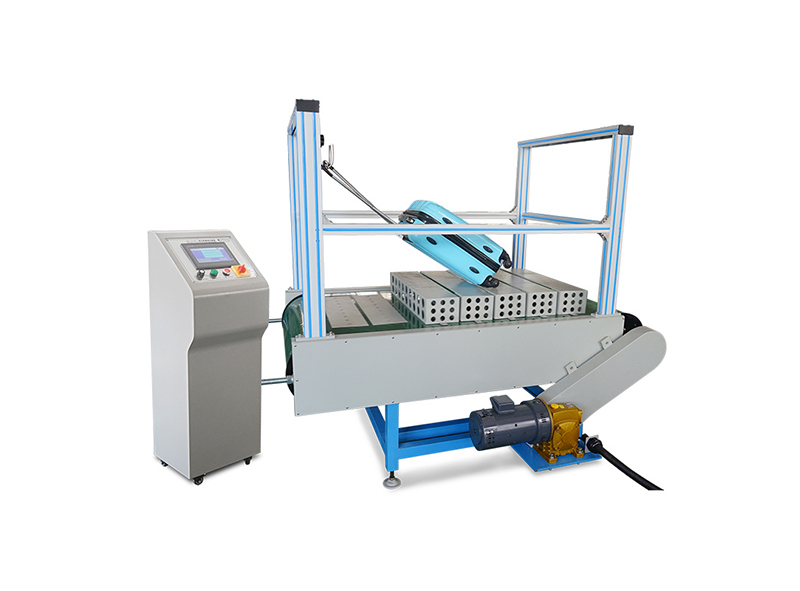

The luggage wheel down-stairs testing machine is specially designed to simulate the walking conditions that suitcases often encounter in daily life, including up and down stairs, and outdoor cement stairs. This testing machine is mainly provided to test the comprehensive performance of the wheels, understand the adaptability of the product, and do to product control and prevention.
Features of Luggage Staircase Simulation Testing Machine
The walking test of the luggage is to load the specified load in the sample, and use the roller or conveyor belt of the roller or conveyor belt to rub and collide with the sample wheel when the roller or conveyor belt rotates to produce shock oscillation and wear on the sample. To simulate the use state of the luggage when walking, check the quality of the sample wheel, axle, wheel frame, tie rod and box body, and calculate the wear amount of the wheel.
Parameters of Luggage Staircase Simulation Testing Machine
| Horizontal motor | 750W |
| Dimensions L×W×H | 1800*1300*1500mm |
| Speed adjustable range | 0-5KM/H |
| Belt size | Length 3900mm, width 800mm |
| Barrier block (block) | 5 pieces |
| Size | (W*L*H) 160mm*700mm*120mm |
| Iron plate thickness | About 2.5mm |
| Steel plate | Quantity 2 pieces |
| Size | (thickness*length*width) 2mm*600mm*160mm |
| Bag pulling direction | Can be used for 45 degree oblique pull or parallel to the steps |
