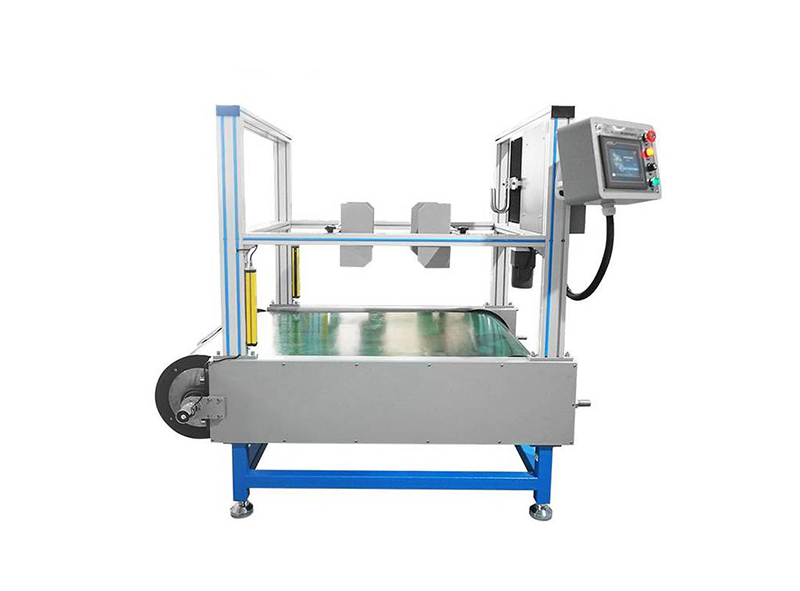

Features of Luggage mileage life tester
The test is to hook the bag handle on the hook of the mileage tester, fasten it with a rope, then put a certain weight of load in the bag, set the time and speed, and start the test to understand its wheels and overall structural performance. This product is used for the walking test of suitcases, travel bags, baby carriages... And the loss, check the properties of the wheel material and the overall structure of the box for damage and deformation, and the test results can be used as a reference for improvement. The ball test scale board is used to detect whether the ball accessories on the toy may pose a choking hazard for children to swallow, block the airway and esophagus
Parameters of Luggage mileage life tester
| Test speed | Adjustable from 0 to 5km/hr, 10min intermittent for every 2km of operation |
| Time setting | PLC control, touch screen operation |
| Bump board | Made of aluminum, 5mm/6 pieces, hardness HB (40±5) |
| Specification | 300mm*30mm |
| The left and right spacing of the bump plate | 80mm |
| Front and rear spacing | 300mm |
| Belt circumference | 490cm |
| Belt width | 80cm |
| Test group | 2 teams |
| Machine dimensions L×W×H | 2500*1300*1500mm |
| Weight | 360Kg |
| Power supply | 1∮, 220V/50H |
| Appendix | Suitcase fixed adjustment seat |
