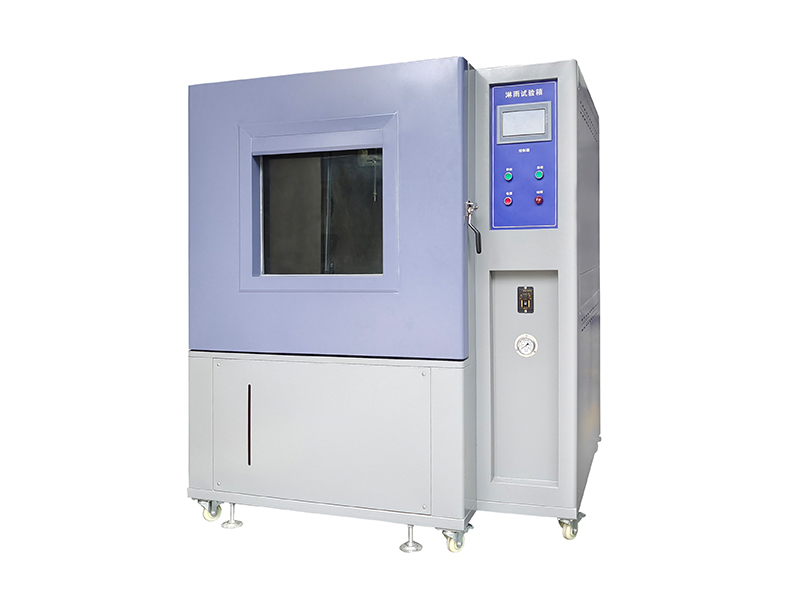

IPX9K Waterproof Test Chamber

IPX9K Waterproof Test Chamber

The main function of this device is to test the performance of the product during storage, transportation and use under high temperature, high pressure and rainy weather. This equipment is mainly used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, etc. Under the climatic conditions of high temperature, high pressure and rain, the physical and other related properties of the product are tested under the conditions of simulated high temperature, high pressure and rain. After testing, the performance of the product is judged by verification to meet the requirements of product design and improvement.


Features of IPX9K Waterproof Test Chamber

Application background: The damage to products and materials caused by natural water (rainwater, seawater, river water, etc.) causes incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength reduction, expansion, mildew, etc., especially electrical products are prone to fire due to short circuit caused by rain. Therefore, it is an indispensable key procedure to conduct the shell protection water test for a specific product or material.

General application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.

Parameters of IPX9K Waterproof Test Chamber

Studio sizeW1000 × H1000 × D1000mm
DimensionsW1450 × H1750 × D1500mm
Test time30s (120 positions in 4 positions)
Water spray ring angle0 °, 30 °, 60 °, 90 °
Number of water jets4
Water spray temperatureRoom temperature -85 ℃
Water spray distance100mm ~ 200mm
Water spray pressure8-10mpa
Speed of sample table1 ~ 5r / min
Load capacity of sample platform15kg
High temperature flow meterFlow rate is 14 ~ 16 L / min
Spray water temperature80 ℃ ± 5 ℃
Jet water pressure80 ~ 100 bar (8000 ~ 10000kpa)
Water spray flow14 ~ 16L / min
Water spray distance10 ~ 15cm
Water spray angle and time0 °, 30 °, 60 °, 90 °, water spray at each angle for 30 seconds
Turntable300mm diameter
