The main function of this equipment is to test the physical and other related properties of products such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rain conditions. After the test, it is judged whether the performance of the product meets the requirements through verification, so as to facilitate product design, improvement, verification and factory inspection.

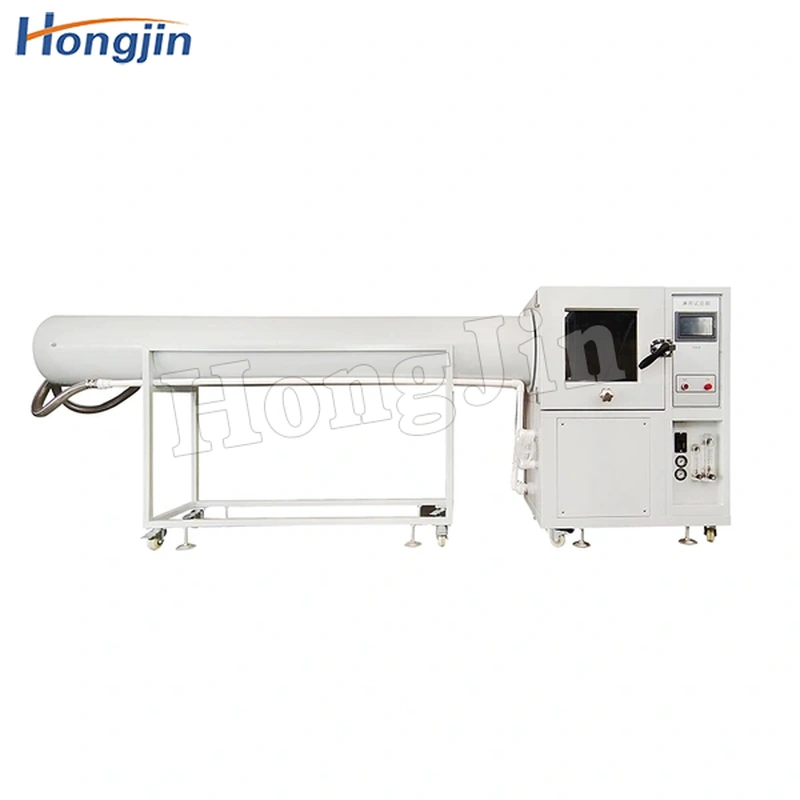

Features of IPX5.6 waterproof test box
Application background: The damage to products and materials caused by natural water (rainwater, seawater, river water, etc.) causes incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength reduction, expansion, mildew, etc., especially electrical products are prone to fire due to short circuit caused by rain. Therefore, it is an indispensable key procedure to conduct the shell protection water test for a specific product or material.
General application areas:
outdoor lighting, household appliances, auto parts and other electronic and electrical products.
Parameters of IPX5.6 waterproof test box
|HJ-IPX5.6-600||Inner box size: W600xD600xH600|
|HJ-IPX5.6-800||Inner box size: W800xD800xH800|
|HJ-IPX5.6-1000||Inner box size: W1000xD1000xH1000|
|IPX5 spray water flow||12.5±0.625 (L/min)|
|IPX6 spray water flow||100±5 (L/min)|
|Flow control method||Manual adjustment (rotor flowmeter)|
|Spray distance||2.5*3 meters (control by test personnel)|
|How to fix the spray gun||Mechanical fixation (the angle of spray gun can be adjusted manually)|
|Maximum load-bearing capacity of turntable||50KG|
|Lifting range of turntable||Not liftable (fixed)|
|Water spray method||Recyclable|
|Undertake customized large-scale open waterproof experimental equipment|
Note: The control systems are all 7-inch touch controllers. If you need to customize other non-standard specifications of the waterproof test box, please consult with the relevant customer service staff for details."
