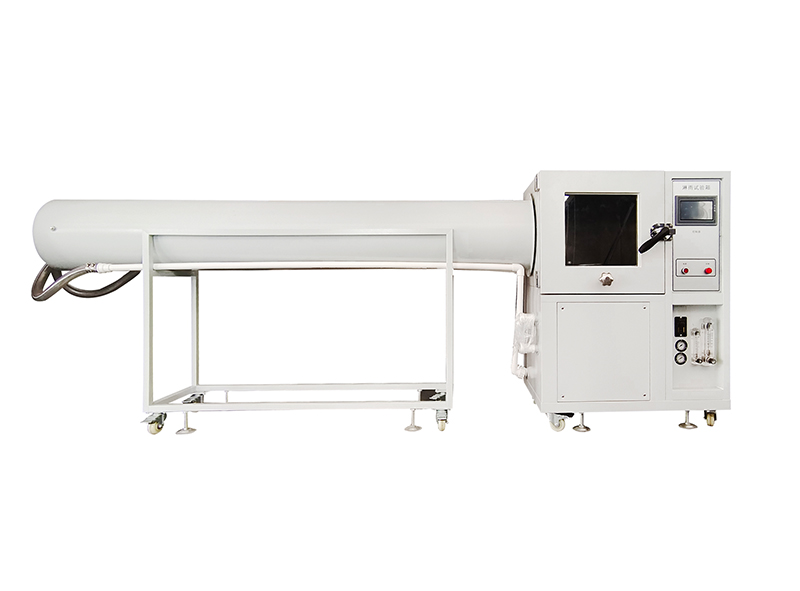

Features of IPX184.108.40.206 waterproof test chamber
1. It is suitable for IPX3, IPX4, IPX5, IPX6 waterproof level testing of products.
2. The shell is made of domestic high-quality steel plate, and the surface is sprayed with baking paint, which is beautiful and durable.
3. The inner box, turntable, swing tube, etc. are all made of SUS304# stainless steel plate to ensure long-term use without rust.
4. Box-type structure; it has its own water tank to circulate water; the water storage tank is equipped with a water level float valve, which automatically controls the water intake and has a low water level alarm detection.
5. There is a transparent observation window (toughened glass material) on the door, and LED lighting is installed in the box, which is convenient for observing the internal test situation.
6. IPX34: The drive of the swing tube adopts a servo stepping motor, the speed and angle of the swing tube are precisely adjustable, and there is no out-of-step problem (out-of-step: it will cause the swing tube to move abnormally, hit the middle turntable shaft, and cause equipment damage)
Parameters of IPX220.127.116.11 waterproof test chamber
|Inner box size: W600*D600*H600||Swing tube radius: 200mm|
|Inner box size: W800*D800*H800||Swing tube radius: 300mm|
|Inner box size: W1000*D1000*H1000||Swing tube radius: 400mm|
|Turntable maximum load||50KG|
|Turntable lift height||400mm|
|Turntable can be tilted||0° or 15° (horizontal)|
|Turntable speed||1 -5r/min (accurately adjustable)|
|Turntable rotation||Always rotate forward / alternate between forward and reverse rotation / intermittent rotation|
|Flow adjustment method||Manual flow adjustment by means of a flow meter with adjustment panel|
|Testing time||0-999 min|
|Total mass of equipment||250kg|
