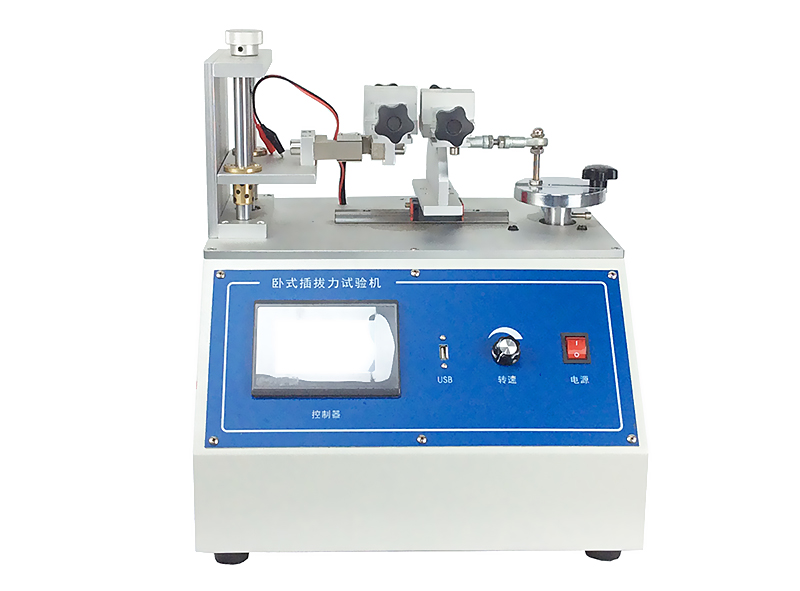

This machine is suitable for the insertion force and extraction force test of various connectors.With the special automatic centering device, completely accurate insertion force test and inspection report can be obtained. The automatic centering device is used to solve the fixture problems of various connection tests, and the male and female connection products can be automatically aligned during the test, and there will be no problem of eating one side.
Features of Insertion force life testing machine
1. It can be used for single-hole plug-in test of connector
2. It can be used to connect the whole row of plug-in test and receive the connector plug-in life test
3. It can be used as a single connector for the plastic retention test
4. Can do connector NORMAL FORCE test
5, can do general compression, tensile failure test
6. It can be used at the same time at the contact impedance machine (optional)
7. Graphics can be printed and stored (plug-in displacement curve diagram, life curve diagram, inspection report)
8. The test data is stored on the hard disk (every data can be stored, unlimited times);
9. The test conditions are all set in writing by the computer, which is convenient and fast (including plugging stroke, speed, pause time, etc.)
Parameters of Insertion force life testing machine
| Supply voltage | 220V±10% |
| Frequency range | 0-999999 |
| Speed range | 5-60 times/minute |
| Stroke adjustment range | 0-80mm |
| Machine size | 500×450×350mm |
| Operating Voltage | Single phase 220V |
| Machine weight (approx) | 50kg |
