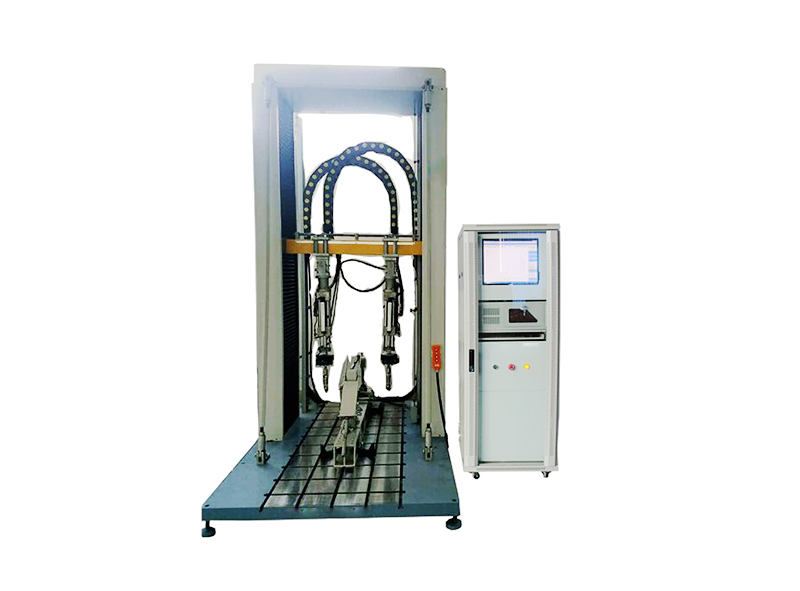

Hydraulic double station dynamic fatigue testing machine

Hydraulic double station dynamic fatigue testing machine

This testing machine is designed according to the fatigue resistance test standard of bicycle frame. It adopts double hydraulic cylinders to exert force. The bicycle frame is installed on the tool of the testing machine. After being fixed, a certain frequency, load and number of tests are applied to the fatigue force. After the test is completed The quality of the sample is judged by examining the degree of damage to the sample.


Description


Parameters of Hydraulic double station dynamic fatigue testing machine

Capacity(kgf)500kgf x 2 sets
Test force value accuracy±5%
Maximum working amplitude (mm)±100
Motion detectorLVDT accuracy ±0.01mm
Power sourceHydraulic Servo Control System
Frequency Range1HZ-15HZ adjustable
Software interfaceFeihong control system
Dimensions (W*D*H)Host 195*45*90(cm)
Weight (approx.)160KG
Power supplyAC220V, 15A
