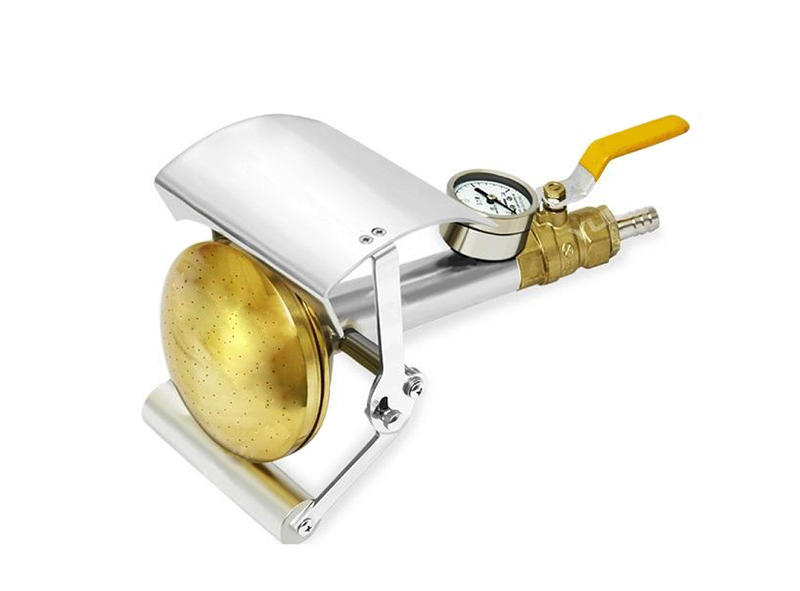

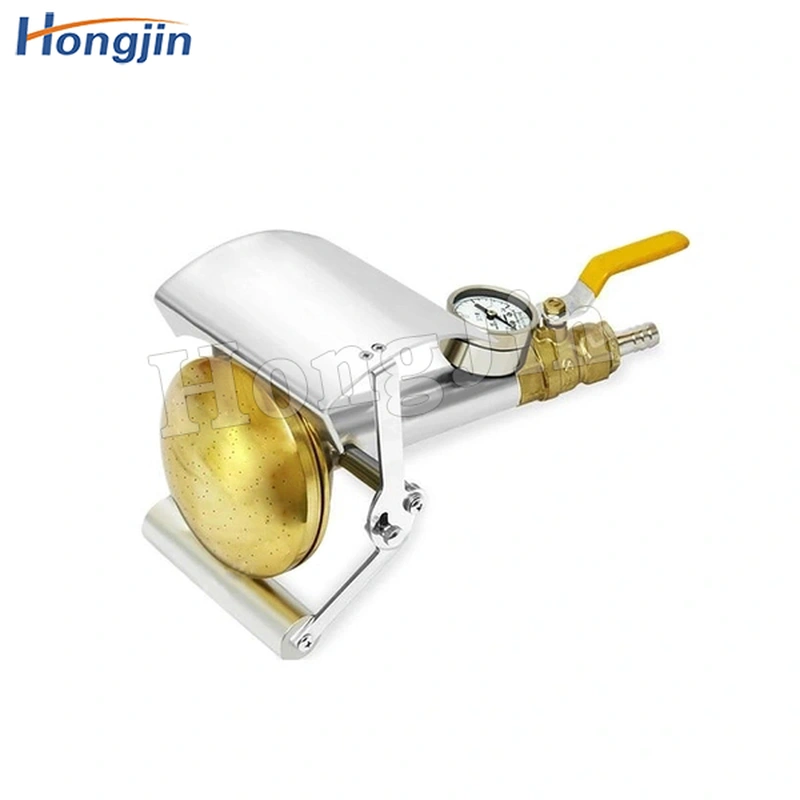

Features of Handheld waterproof test device
1. It is suitable for the waterproof level test of the product.
2. The shower head is processed by numerical control process (CNC), the shower head is made of pure brass material, and the surface is mirror-polished, like a bronze mirror, beautiful and fashionable, and corrosion-resistant.
3. The movable baffle is made of aluminum alloy (fully in line with the requirements of standard materials), and the surface is first sanded and then anodized, which is beautiful and durable.
4. The surface of the shower nozzle is sprayed with anti-rust coating, which can prevent the watermark on the surface of the nozzle from producing patina and affecting the appearance.
5. The stainless steel pressure gauge is used, the surface diameter is 40mm, the precision is 2.5, and the display is intuitive.
6. Numerical control is added to 121 holes, the aperture and angle fully meet the standard requirements, and can be tested and certified by a third-party measurement unit.
7. Water spray method: hand-held, can be directly connected to tap water.
Parameters of Handheld waterproof test device
|Outer dimensions of the device||About length 370* width 115* height 165mm|
|Brass nozzle size||Φ102mm|
|Number of spray holes||121|
|The diameter of the spray hole||Φ0.5mm|
|Opening position||12 holes/circle inside 2 circles, spacing 30°|
|24 holes/circle outside 4 circles, spacing 15°|
|Outer diameter of water inlet||Φ16mm|
|Stainless steel water pipe outer diameter||Φ28mm|
