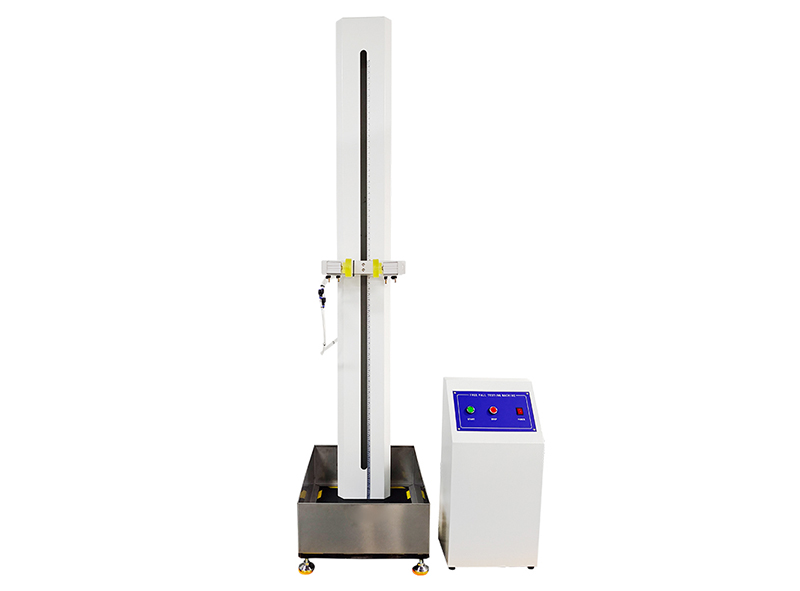

The spectacle lens automatic drop tester is used to simulate the quality test of spectacle lens drop.
Features of Glasses lens automatic drop tester
1. After the test is completed, the acceleration and speed will be automatically displayed
2. Solve the problem of flipping the phone when it falls, and the impact part is accurate 3. Automatic induction adsorption function
4. After each drop, it will automatically return to the adsorption height
5. The drop height and adsorption height can be set, and the number of drops can be displayed. 6. Various drop plate configurations: marble, wood, steel
7. Chinese and English operation interface
Parameters of Glasses lens automatic drop tester
| Multi-angle drop device | 0°, 45°, 90° |
| Drop height indicator | 1cm |
| Drop height | 300--1800mm (optional 2000mm) |
| Allowable specimen weight | 2kg |
| Drop floor medium | Steel plate, marble, solid wood board |
| Drop range | 500x600mm |
| Use air source | ≥0.5Mpa |
| Machine size | W800XD900XH2200mm |
| Power supply | AC220V 50HZ 5A |
