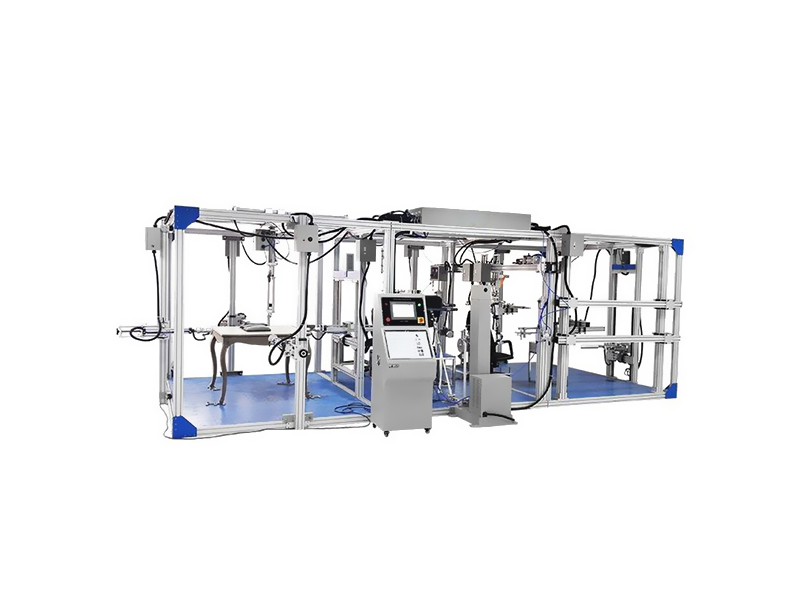

Various tests of the chair can be carried out on the same testing machine. It saves the investment of equipment and can also test furniture according to the requirements. The user can complete the mechanical performance test of the chair seat - seat back, armrests, sides and other parts through simple and quick adjustment.

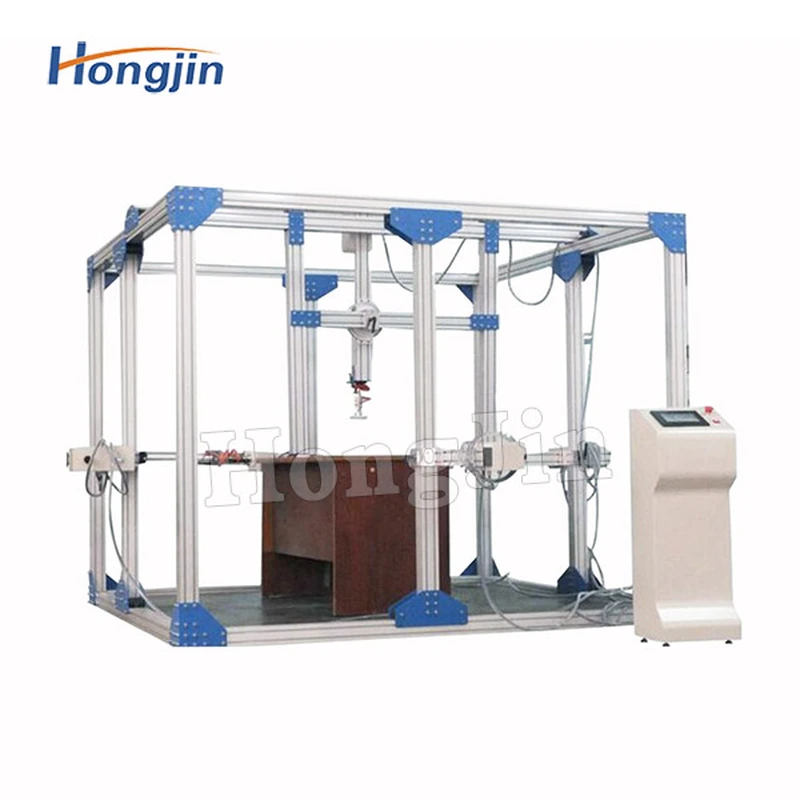

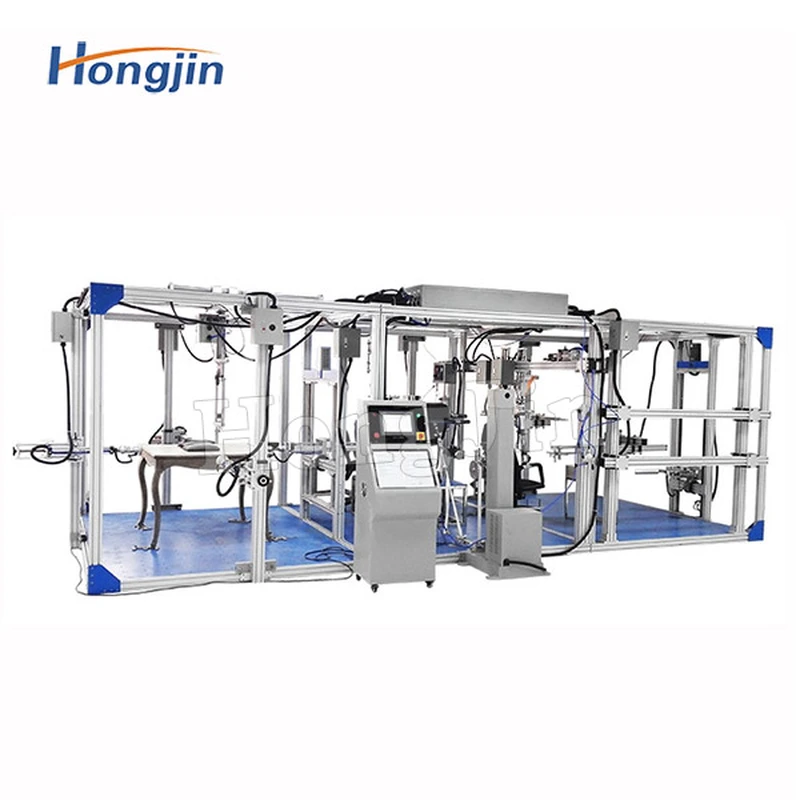

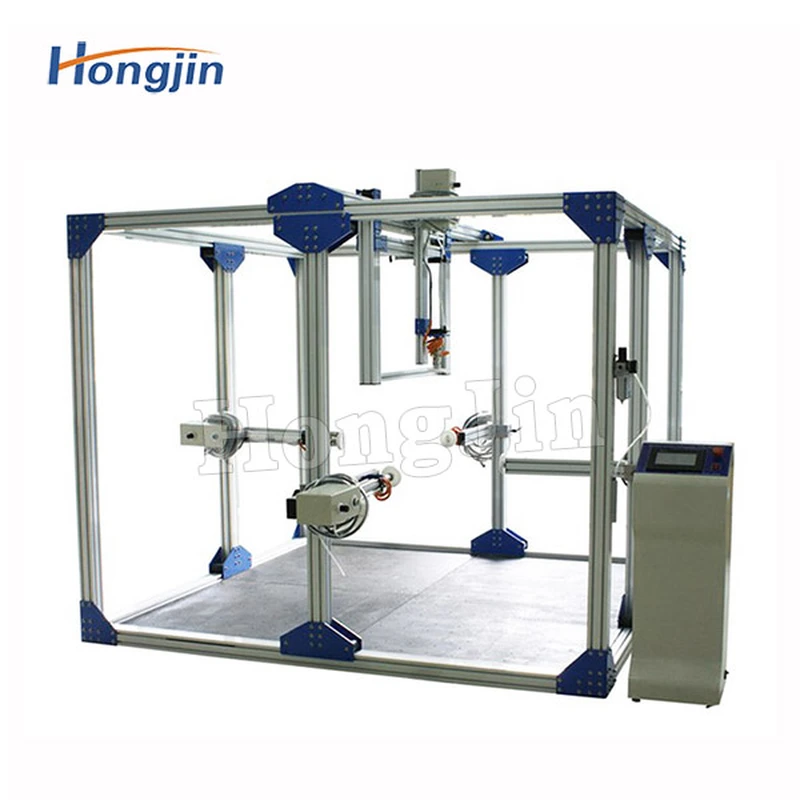

Parameters of Furniture comprehensive tester
| Chair Seat Loading Capacity | 5~200kg |
| Chair backrest loading capacity | 5~100kg |
| Armrest height adjustment range | 550mm～950mm |
| Specimen size and width | 1000mm |
| Test rate | 10～30 times/min |
| Test space size | 6000mmx3000mmx1800mm |
| Voltage | 220~240V |
| power | 1500W |
| compressed air pressure | 6kg/cm2 |
| load cell capacity | 0~300kg, can be set arbitrarily (10~300Kg) |
| Load cell accuracy | 1/250000 |
| Test accuracy | Static ±0.1%, dynamic ±0.3% |
| Test result display | Automatic digital display, single force display for each cylinder, automatic reading of offset, no need for manual measurement |
