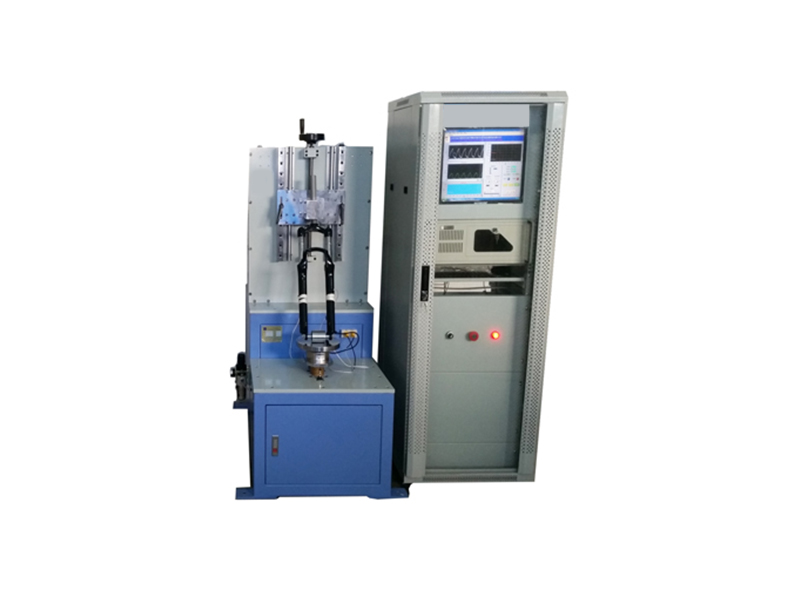

Front Fork Vibration and Shock Testing Machine

This machine is specially required for the horizontal vibration and impact damage test of bicycle front forks: fix the front fork on the testing machine and observe the damage of the front fork, such as deformation, fracture, etc., under a certain frequency, force and impact.

Description

Parameters of Front Fork Vibration and Shock Testing Machine

Capacity(kgf)	500kgf x 1 group
Test force value accuracy	±5%
Maximum working amplitude (mm)	±100
Motion detector	LVDT accuracy ±0.01mm
Power source	Air pressure servo control system
Frequency Range	1HZ-15HZ adjustable
Software interface	Feihong control system
Dimensions (WDH)	Host 1954590(cm)
Weight (approx.)	160KG
Power supply	AC220V, 15A
Air source requirements	Need to prepare 7Kg/cm² dry air source
