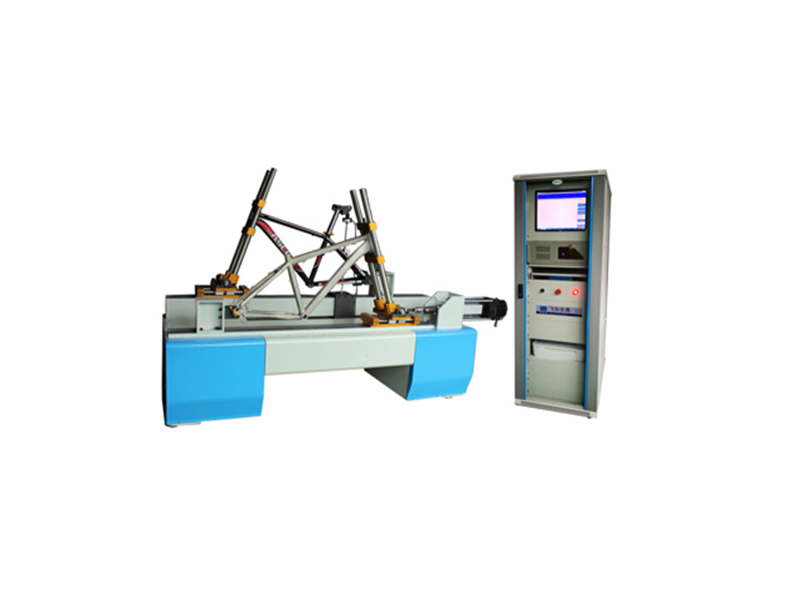

Frame horizontal force fatigue testing machine

Frame horizontal force fatigue testing machine

This testing machine is designed for the horizontal direction fatigue resistance test standard of bicycle frame. After the bicycle frame is installed on the fixture of this testing machine and fixed, a certain frequency, load and number of tests are applied to it. After the test is completed, the sample is checked Judging by the degree of damage.


Parameters of Frame horizontal force fatigue testing machine

Capacity(kgf)500kgf x 1 group
Load cell resolution1/10.000
Displacement sensor range0-125mm
Power sourceElectric cylinder servo control system
Software interfaceFeihong control system
Database functionAutomatic recording of each measurement result for easy analysis and evidence
Dimensions (W*D*H)Host 195*45*90(cm)
Weight (approx.)160KG
Power supplyAC220V, 15A
