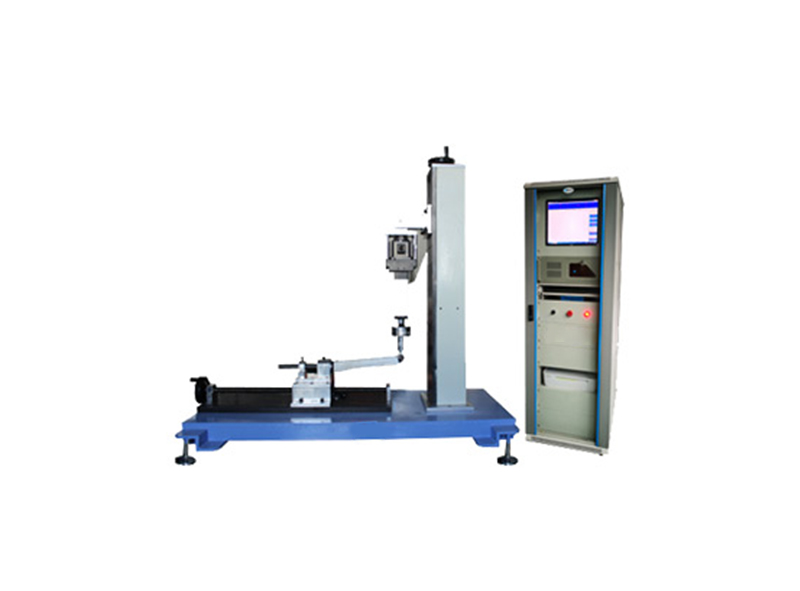

Frame front fork fatigue testing machine

Frame front fork fatigue testing machine

It is suitable for fatigue test of bicycle front fork parts. The test items can perform dynamic fatigue test of front fork shaft structure, disc brake disc structure dynamic fatigue test, brake fulcrum structure dynamic fatigue test and other requirements. The adjustment position locking screw adopts quick release type, which is easy to operate, and the adjustment position adopts screw adjustment.


Parameters of Frame front fork fatigue testing machine

Capacity(kgf)500kgf x 1 set
load cell resolution1/10.000
Displacement sensor range0-125mm
Power sourceElectric cylinder servo control system
Software interfaceFeihong control system
Database functionAutomatic recording of each measurement result for easy analysis and evidence
Dimensions (W*D*H)Host 195*45*90(cm)
Weight (approx.)160KG
Power supplyAC220V, 15A
