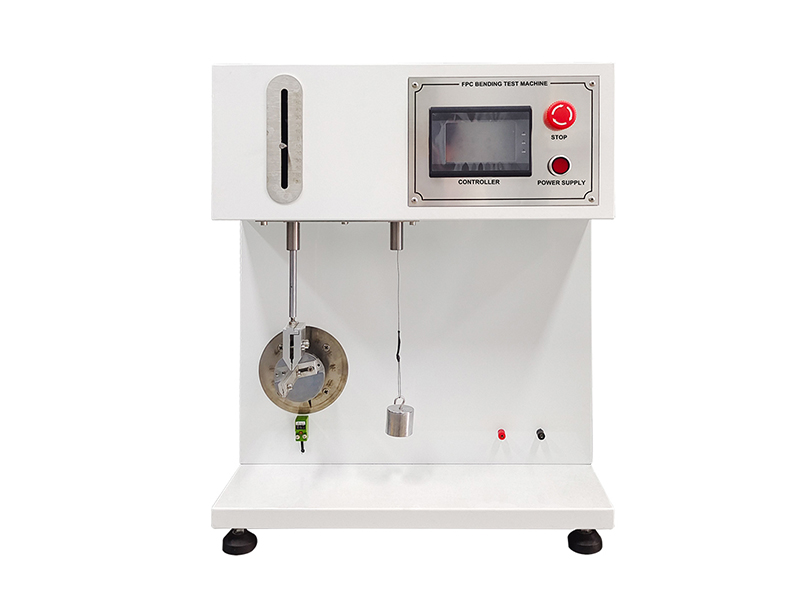

FPC folding endurance testing machine

FPC folding endurance testing machine

The circuit board is used for the bending test, which can be called the FPC bending resistance testing machine and the FPC bending resistance testing machine; it can be used for the bending resistance and inflection resistance life test of the FPC flexible board of electronic products. The machine uses the crankshaft for reciprocating push-pull action, adjustable speed, adjustable bending angle, automatic counting, and automatic shutdown when the set number of times is reached.

Description

The circuit board is used for the bending test, which can be called the FPC bending resistance testing machine and the FPC bending resistance testing machine; it can be used for the bending resistance and inflection resistance life test of the FPC flexible board of electronic products. The machine uses the crankshaft for reciprocating push-pull action, adjustable speed, adjustable bending angle, automatic counting, and automatic shutdown when the set number of times is reached.


Features of FPC folding endurance testing machine


1. The machine is driven by servo motor, with high precision positioning, low noise, and can be used for a long time;


2. Program-controlled origin reset, no need to place the fixture in place by hand;


3. The machine adopts touch screen display controller for program input;


4. The test angle, speed, test times, and the return of the motor to the origin can be set, and the count is automatic. When the product is bent to the point of disconnection and cannot be powered on, it can automatically stop the operation.


Parameters of FPC folding endurance testing machine

Bending angle±180 can be set
Bending speed10~120 times/min
Bending Jig R Angle1. OR
Countero-999999999
Volume (approx.)550cm x40cm x66cm
Weight (approx.)40kg
Power supply1fAC220v
