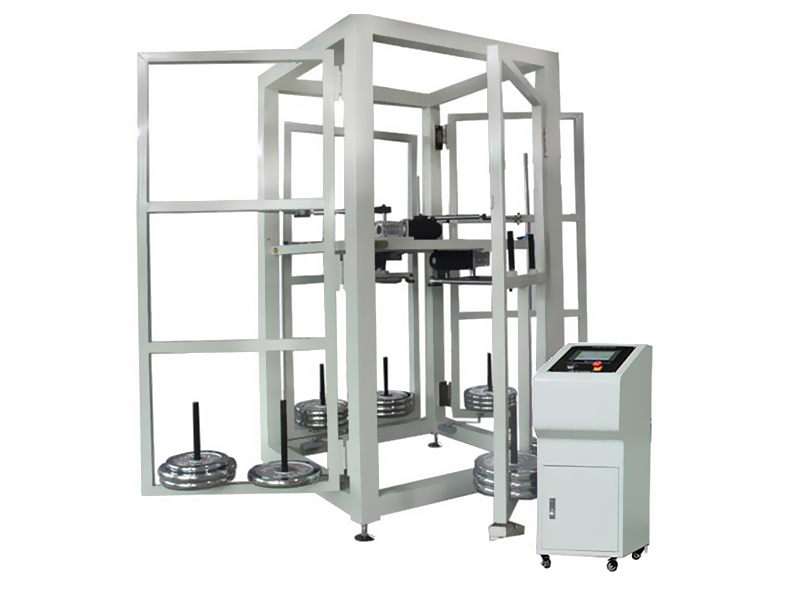

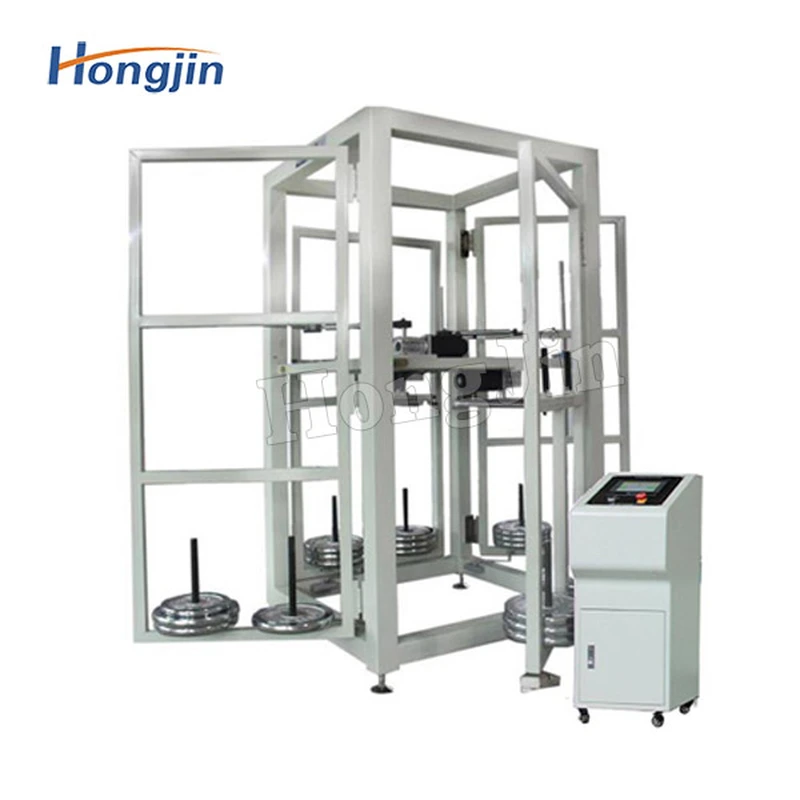

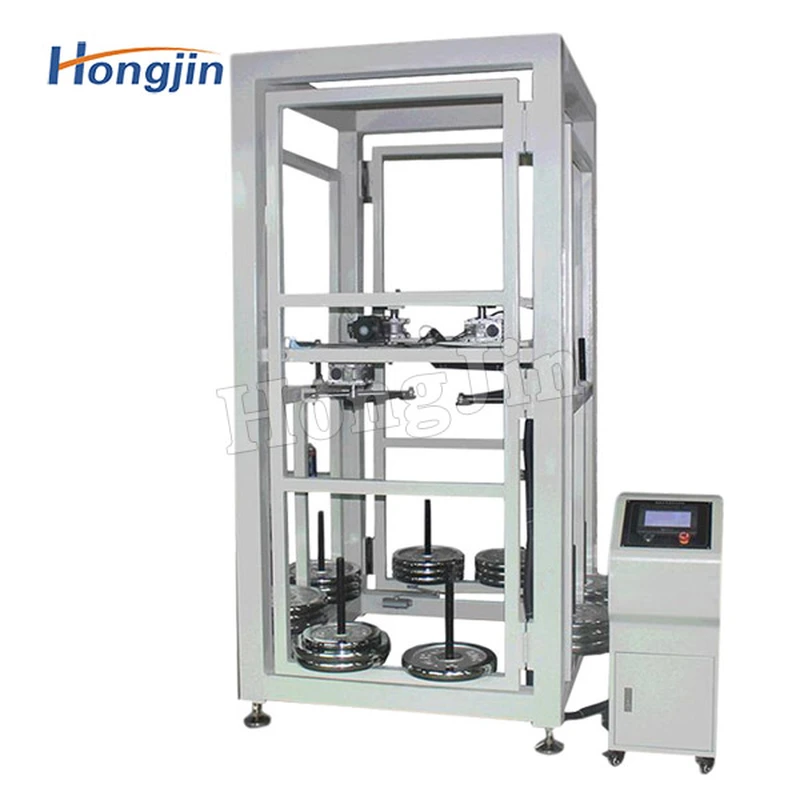

Four-station hinge life testing machine

Features of Four-station hinge life testing machine

1. The Overall Dimensions Of The Equipment Are ~1300X1214X2350Mm (The Minimum Space Occupied After Opening The Door During Operation Is ~3600X3200Mm)

2. Voltage Ac220V Frequency Adjustable (1-30 Times/Min)

3. It Can Clamp Four Hinge Test Doors At The Same Time. The Door Rulers Of Two Of The Test Doors Made In Accordance With The Requirements Of The European Standard En1935 Are ~2000X1000X50Mm (Basic Weight 40Kg, 480Kg Can Be Added As A Weight), And The Door Rulers Of The Other Two Test Doors Made In Accordance With The Requirements Of The American Ans/Bhmaa156, 1 Are: 2134 Standard Weight).

4. The Main Body Of The Rack Adopts A Detachable Mechanism. The Four Main Columns Of The Main Body Are Made Of 100X100 Square Tubes, And The Door Frame Is Made Of 50X50 Square Tubes.

5. The Opening Angle Is Between 0-90 Degrees, Easy To Adjust.

6. American Standard Doors Are Equipped With Iron Bars To Install Three Hinges (Made According To The Dimensions Required By The Standard), And Each Door Is Provided With A Set Of Hinge Installation Fixtures.

7. A Hinge Is Installed On The European Standard Door, With The Bearing Of The Adjustable Core Below As A Support. A Set Of Hinge Clamps Is Provided For Each Door.

8. The Driving Force For Opening The Door Is To Step On The Cylinder As The Driving Force For Opening The Door (The Door Opening Angle And Door Opening Speed Are Both Adjustable)

9. There Is A Protective Device To Prevent The Simulated Door From Falling Down If It Malfunctions And The Hinge Is Completely Broken.

10. Independent Control Cabinet, The Main Controller Adopts Delta Plc And Weilun Hmi.

11. The Surface Treatment Is Baking Paint And The Fixture Is Electroplated.

Parameters of Four-station hinge life testing machine
