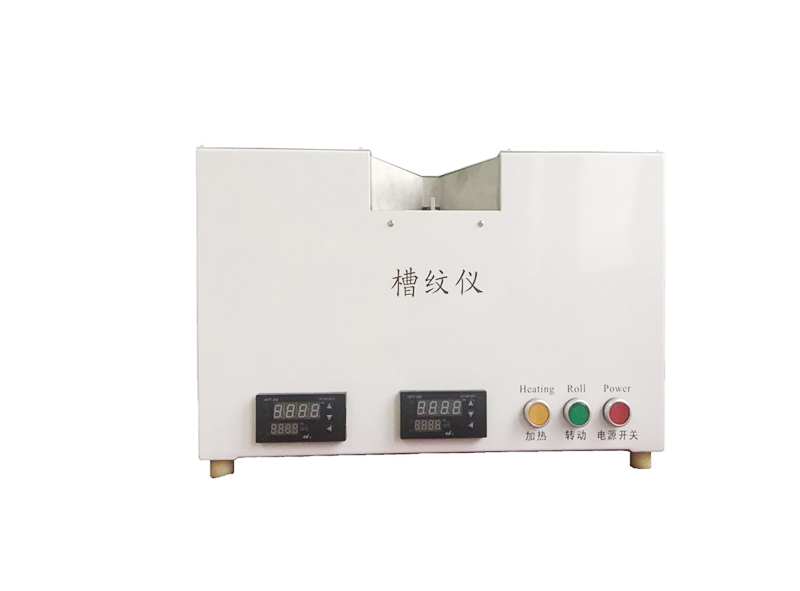

Flute meter

Flute meter

The corrugator is used to prepare samples for corrugated core flat press (CMT) and corrugated vertical press (CCT) tests to press standard corrugated waveforms (ie, corrugated core paper laboratory corrugation). The flat compressive strength (CMT) and vertical compressive strength (CCT) of the corrugated core base paper can be measured after corrugated core paper is corrugated with a computer compression tester.

Description

The corrugator is used to prepare samples for corrugated core flat press (CMT) and corrugated vertical press (CCT) tests to press standard corrugated waveforms (ie, corrugated core paper laboratory corrugation). The flat compressive strength (CMT) and vertical compressive strength (CCT) of the corrugated core base paper can be measured after corrugated core paper is corrugated with a computer compression tester.


Features of Flute meter


1. The high-precision temperature controller accurately adjusts the temperature, and the PID control mode with automatic temperature compensation mode.


2. Fast response speed and high steady-state accuracy.


3. Digital display of actual temperature and set temperature, with over-temperature protection device, set parameters can be automatically memorized after power failure, with parameter self-tuning function.


4. Finished copper corrugated gear, large heat capacity, good heat transfer and wear resistance. The standard button is sensitive and durable, and the corrugated base paper is automatically corrugated.


Parameters of Flute meter

Working speed4.5r/min
Temperature display resolution1°C
Temperature measurement accuracy0.5 grade ± 1 word
Working temperature adjustable rangeRoom temperature~200 °C
Working pressure adjustable range(49~108)N
Standard operating temperature175°C
Spring tension100N
Dimensions (length X width X height)About 564mm×377mm×330mm
Power supplyAC220V, 50Hz
