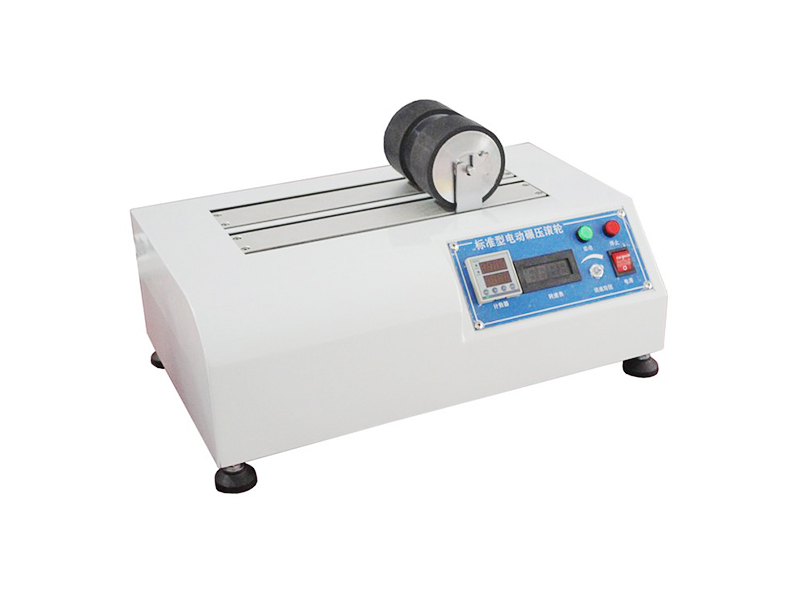

Electric rolling roller testing machine

Electric rolling roller testing machine

The cellophane tape paper selected according to the standard and the printed surface of the sample ink after adjustment of the test environment are bonded together with the standard load, rolling speed and rolling times, placed and adjusted for a certain period of time, and then with a certain pressure. They are peeled off at the peeling speed, and the condition of the ink layer of the measurement sample being peeled off is observed, so as to judge and analyze the bonding fastness of the printed ink layer. It is used for the preparation of test specimens for the peel strength and stickiness of adhesive tapes. With a fixed pressure and speed, the adhesive tape sample is standardized and evenly adhered to the standard test substrate. With the weight of the pressure roller itself, roll the tape test piece so that the test piece can be completely adhered to the test plate for the purpose of adhesion and retention test.

Description

Features of Electric rolling roller testing machine

The cellophane tape paper selected according to the standard and the printed surface of the sample ink after adjustment of the test environment are bonded together with the standard load, rolling speed and rolling times, placed and adjusted for a certain period of time, and then with a certain pressure. They are peeled off at the peeling speed, and the condition of the ink layer of the measurement sample being peeled off is observed, so as to judge and analyze the bonding fastness of the printed ink layer. It is used for the preparation of test specimens for the peel strength and stickiness of adhesive tapes. With a fixed pressure and speed, the adhesive tape sample is standardized and evenly adhered to the standard test substrate. With the weight of the pressure roller itself, roll the tape test piece so that the test piece can be completely adhered to the test plate for the purpose of adhesion and retention test.

Parameters of Electric rolling roller testing machine

Appearance materialAdvanced imitation marble paint + stainless steel
Display methodLED counter display
Rolling speed25W speed regulating motor, 300mm/min
Rolling load2000±50g
Covering rubber thickness6mm
The diameter of the roller covered with rubber84±1mm
Wheel width45mm metal wheels
Rubber hardnessHs80±5
N umber of roundsGroup 1
CounterLED, 0~999.999
Dimensions(L×W×H) 520*330*250mm
Weight20kg
Power supply1∮,AC220V,1A
