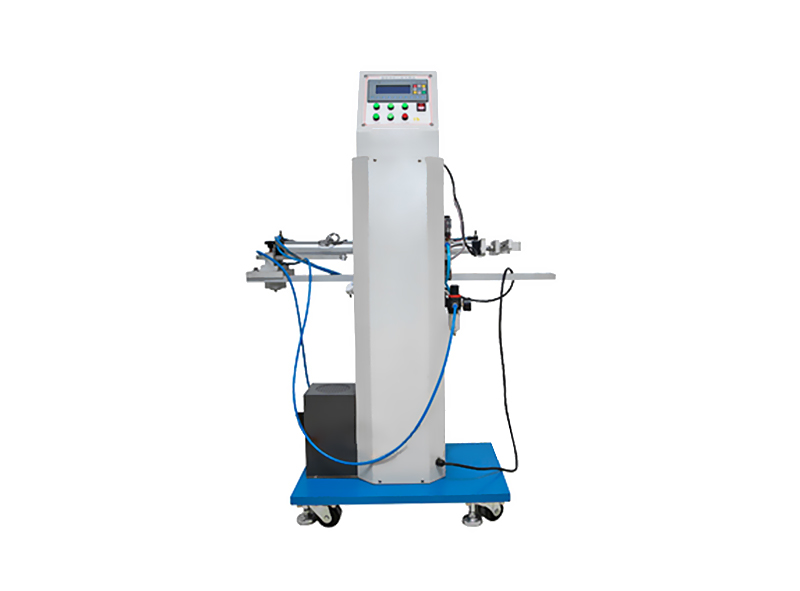

Drawer Cabinet Door Fatigue Testing Machine

Drawer Cabinet Door Fatigue Testing Machine

The instrument can be used for the reciprocating fatigue test of finished drawer rails and cabinet door hinges. The preset counter will automatically stop when the test cycle is set. The instrument can be used for reciprocating fatigue testing of finished drawer rails and door hinges.

Description

The instrument can be used for the reciprocating fatigue test of finished drawer rails and cabinet door hinges. The preset counter will automatically stop when the test cycle is set. The instrument can be used for reciprocating fatigue testing of finished drawer rails and door hinges.


Parameters of Drawer Cabinet Door Fatigue Testing Machine

Drawer Specifications150-800mm (adjustable)
Load0-1000N
Speed0.8m/s
Absolute error of the measured stroke≤±2.5mm
Stroke control range0~800mm
Absolute error of measurement time0.1 seconds
ControllerPLC, control
Power supplyAC220V 50HZ
Compressed air6 kg
