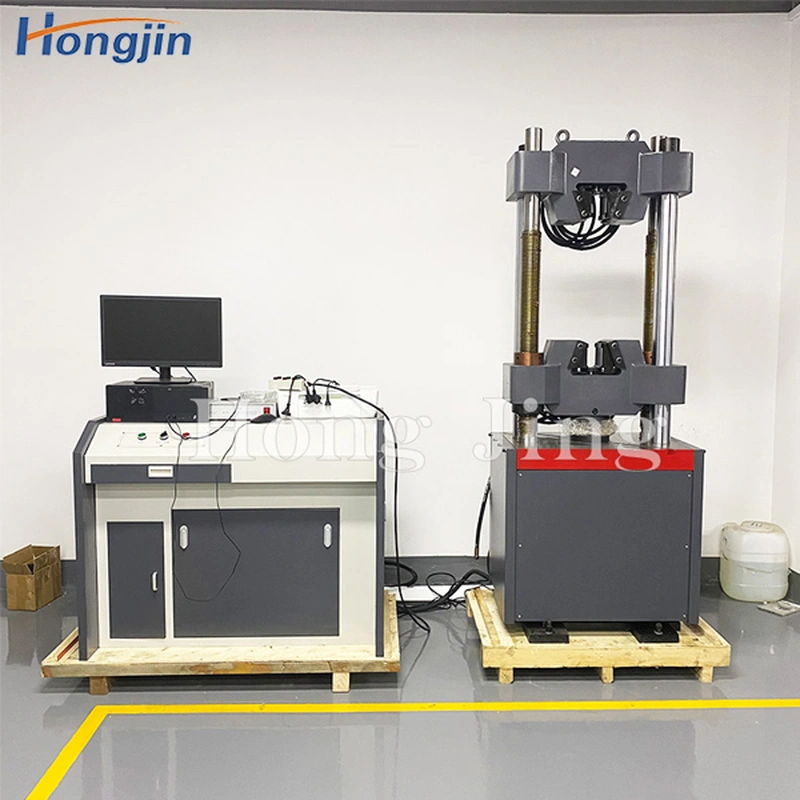

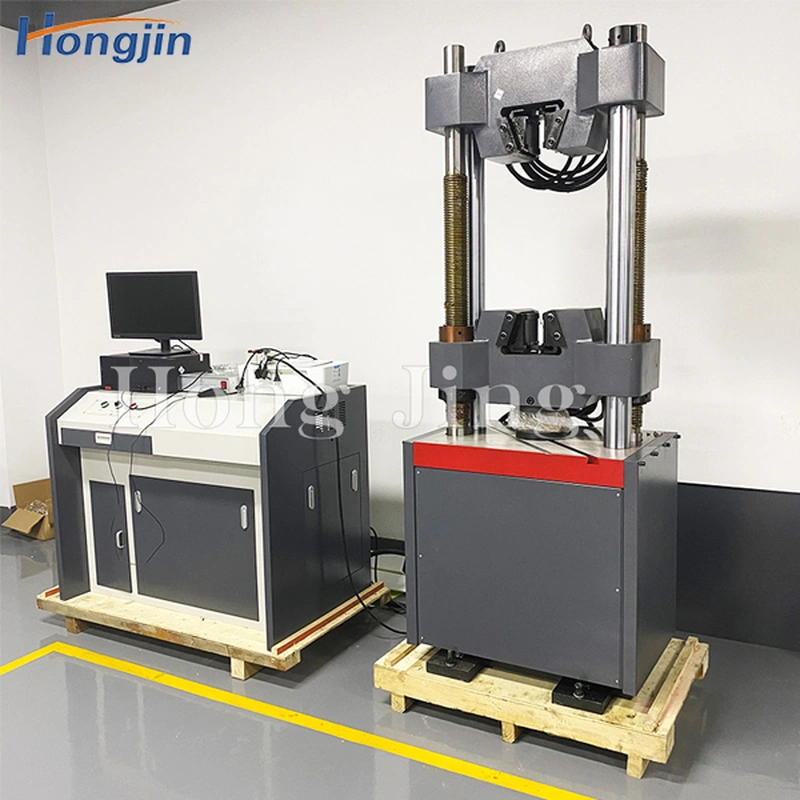

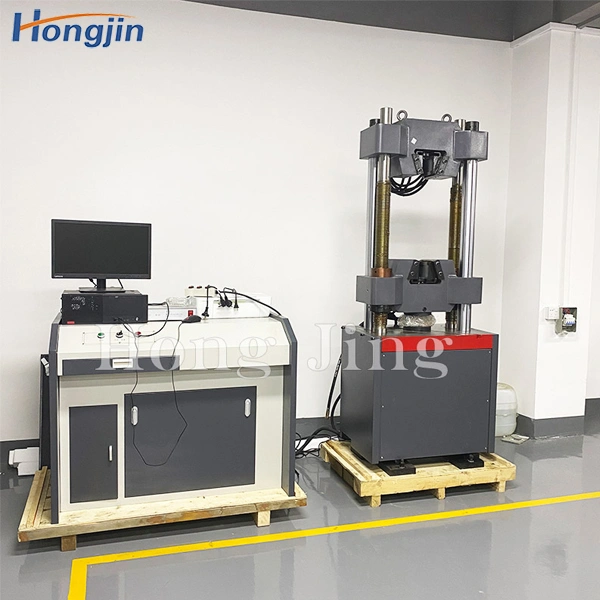

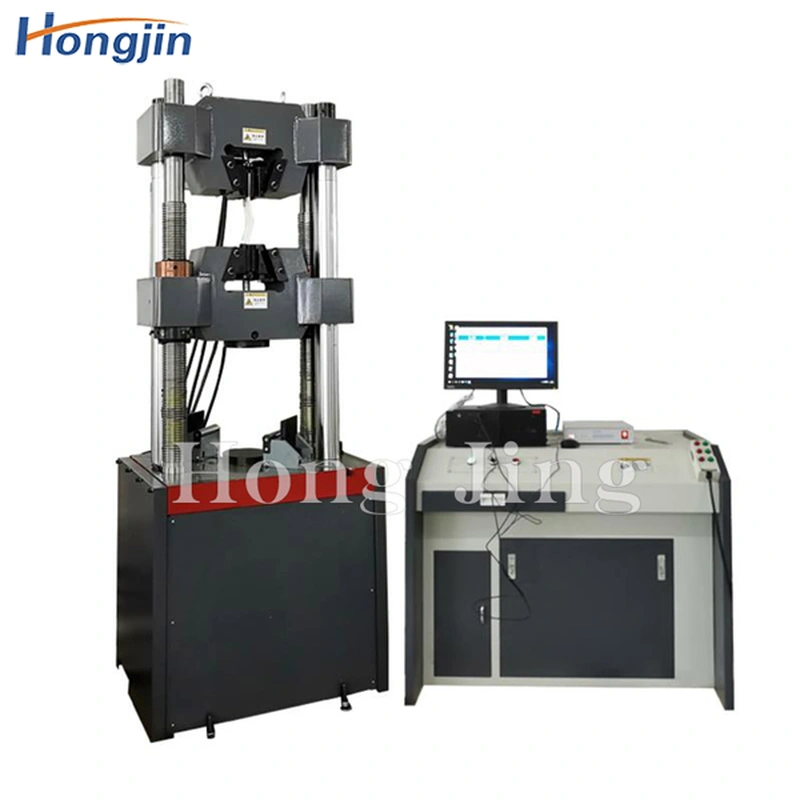

The computer screen type hydraulic universal testing machine is mainly used for tensile, compression, bending and other mechanical properties test of metal materials. After adding simple accessories, it can test cement, concrete, brick, tile, rubber and its products.

This machine is composed of a four-column double-screw oil cylinder under-mounted high-strength main engine and a piano-type oil source control cabinet. The oil pump adopts a low-noise high-performance gear pump imported from Italian Marzucci. The tensile space is located above the main engine, and the compression and bending tests are located under the main engine, that is, between the middle beam and the workbench. The adjustment of the test space is realized by moving the middle beam, and the lifting and lowering of the middle beam is driven by a chain. Manually adjust the oil intake of the oil feed valve to realize the tensile, compression, bending and other tests of the material. After the test, the test results such as FM, REH, REL, RPO.2, RP1, RM and elastic modulus E of the material are automatically taken.

Description

Features of Computer screen type hydraulic universal testing machine


1. When the special super-thick jaw seat is used to hold the sample in the jaw, the jaw is completely contained in the jaw seat, which makes the sample clamping more reliable, and eliminates the possibility of horn-shaped deformation and damage due to the shallow jaw seat. Improve the service life of the equipment.

2. A wear-resistant lining plate is added between the jaw seat and the jaw plate to prevent the oxide skin from falling in during the metal stretching process, resulting in scratches on the inclined surface of the jaw seat, making the clamping process smoother and the addition more reliable.

3. The measurement and control software is based on the Chinese windowsXP operating system platform, with fast running speed, gentle interface, menu prompts, mouse operation, and a variety of sample information input modes, which can meet the test of different materials. It can automatically generate batches of samples with the same conditions once input, and can also create condition templates.

4. The resolution of the test force display remains unchanged throughout the process to ensure the accuracy of the test data measurement.

5. The experimental data (test force, loading rate) and the test curve are displayed on the screen in real time with the test process.

6. After the experiment, the test data will be automatically analyzed, automatically stored and printed.

7. Automatic overload protection and shutdown when the load exceeds 2%-5% of the full scale

10. According to the test date, the relevant historical records can be automatically inquired

11. The software reserves a database interface, which is convenient for local area networking between laboratories and convenient for experimental data management.


Parameters of Computer screen type hydraulic universal testing machine


Product numberHJ-100BHJ-300BHJ-600BHJ-1000B
Host structureDouble-column double-screw cylinder under-mounted structure
maximum test force100 kN300 kN600 kN1000 kN
Testing machine levelLevel 1
Test force measurement range2%-100%
force resolution1/300000
Deformation measuring deviceElectronic Extensometer
Deformation indication≦±0.5% of the indicated value
Relative error
Displacement measuring devicePull wire photoelectric encoder
Displacement indication≦±1% of indicated value
Relative error
Displacement resolution0.01mm
Piston maximum moving speed70(mm/min)
Beam adjustment speed120(mm/min)
piston stroke250mm
way to controlManual loading
Effective stretch space650mm
Effective compression space550mm
Column spacing540mm540mm540
Clamping methodHydraulic automatic clamping
Round Specimen Holder Diameterφ6-φ26mmφ6-φ26mmφ13-φ40mmφ13-φ40mm
Flat specimen clamping thickness0-15mm0-15mm0-15mm0-30mm
Flat specimen clamping width70mm70mm75mm75mm
Upper and lower platen sizeφ160/204*204mm(选配)
Bending roller spacing600 mm
Bending roll width140mm
Safety protection deviceMechanical limit protection and software overload protection
Mainframe dimensions (mm)810×560×2050810×560×2050830×580×215010600×660×2450
Host power0.55KW0.55KW0.55KW0.75KW
Dimensions of oil source control cabinet (mm)960×630×900960×630×900960×630×900960×630×900
Control cabinet power supply1.5 KW1.51.51.5
Host machine weight1500kg1800kg2100kg2800kg
