Carton sliding angle tester

Carton sliding angle tester

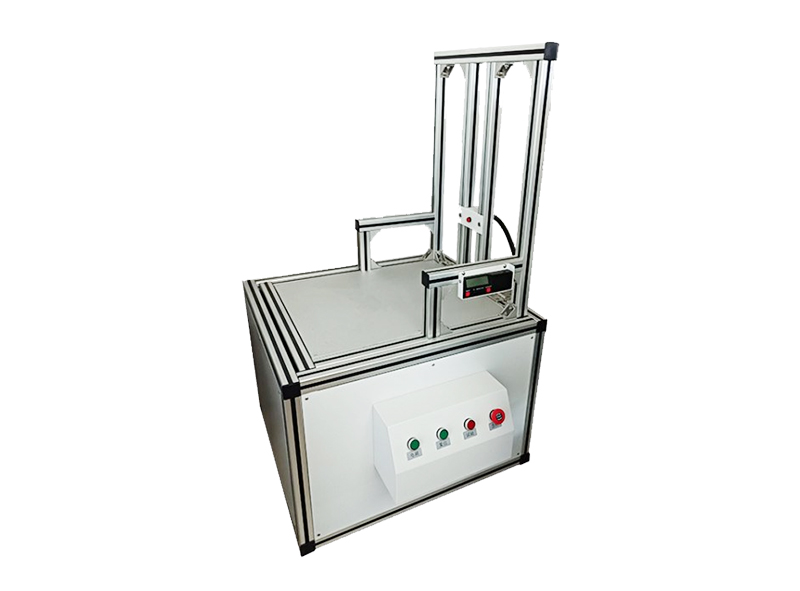

This testing machine is composed of test platform, motor, digital display inclinometer, braking device and control box.

Description

This testing machine is composed of test platform, motor, digital display inclinometer, braking device and control box.


Features of Carton sliding angle tester


Carton slip angle tester Packaging slip resistance tester, used to test the slip resistance of cartons. The instrument has the characteristics of compact structure, complete functions, convenient operation, stable performance, and reliable safety protection. When beer boxes or other packaging boxes are stacked and transported, if the surface friction coefficient is too small, it is easy to cause slippage. This machine test is used to improve the packaging slip resistance. In order to minimize the impact of defective corrugated boxes and fiber cartons on their online work efficiency/process losses; to determine the online operation of related packaging materials, a specially developed instrument for measuring the friction angle of various cartons. In particular, the online sliding performance detection of beer boxes and beverage packaging boxes is very beneficial.



Parameters of  Carton sliding angle tester

Power supplyAC220V±10% 5A 50Hz
Tolerance value150 kg (can be customized according to customer requirements)
Indication error± 1%
Indication variability≤ 1%
Resolution0.1°
Measuring range0.1°~35°
Slope(1.5±0.2)°/s
Working environmentIndoor temperature (20 ± 10) °C; relative humidity < 85%
Dimensions(935 × 640 × 770) mm (length × width × height)
WeightAbout 80 kg
