It is suitable for life aging test of key switches, computer keyboards, electronic dictionaries, remote controllers, mobile phones, MP3, conductive, rubber keys or the same type of keys.

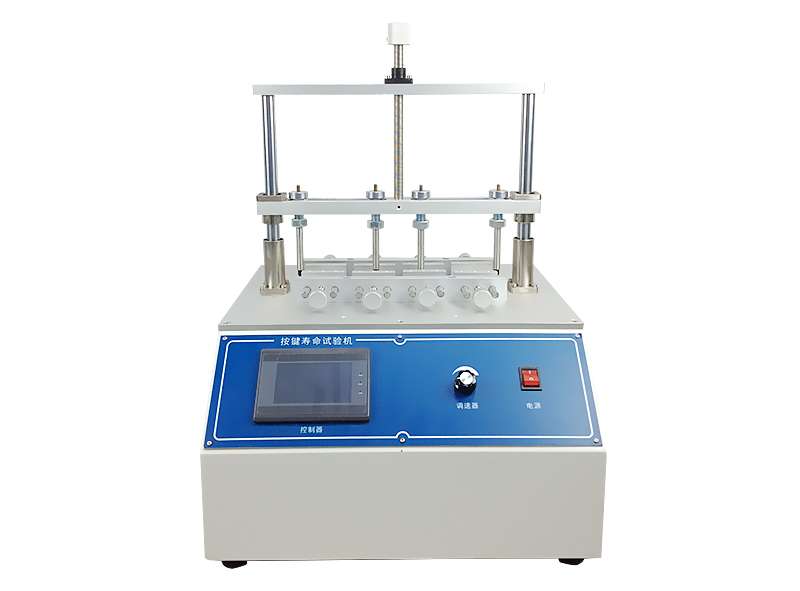

Features of Button life tester (touch type)
It can accurately reflect the fatigue life of the key (silicon rubber) or the mechanical life of the conductive adhesive. Using embedded microcomputer technology, the working times, sampling count rate, allowable count error, etc. can be set.
Parameters of Button life tester (touch type)
| Test station | 4 (working at the same time) |
| Load weight | 50, 100, 200, 300, 500g each of four (optional) |
| Test timer | 0~99999999 times |
| Test conduction times counter | 0~999999 times (automatic counting when four-station is turned on, and counting automatically when disconnected) |
| Test speed | 5~60 times/min (adjustable knob, LCD display |
| Test stroke | 0~20mm |
| Conventional clamping range of test fixture | 60×70mm (adjustable by hand) |
| Adjustable range of test rod fixture | 0~180mm |
| Dimensions (L*W*H) | 500×400× 550mm |
| Machine weight | 25kg |
