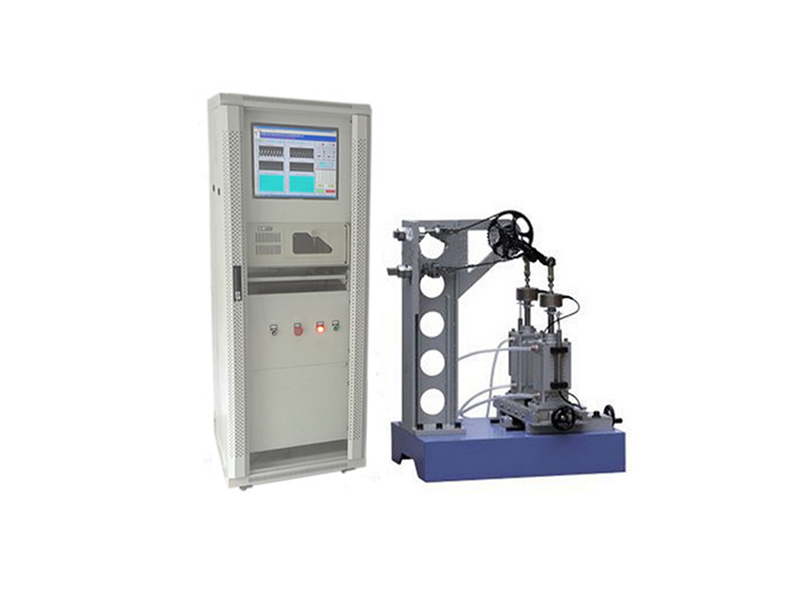

Parameters of Bicycle crank sprocket assembly fatigue testing machine
| Capacity(kgf) | 200kgf x 2 sets |
| Test force value accuracy | ±5% |
| Maximum working amplitude (mm) | ±100 |
| Motion detector | LVDT accuracy ±0.01mm |
| Power source | Air pressure servo control system |
| Frequency Range | 1HZ-15HZ adjustable |
| Software interface | Feihong control system |
| Dimensions (W*D*H) | Host 195*45*90(cm) |
| Weight (approx.) | 160KG |
| Power supply | AC220V, 15A |
| Air source requirements | Need to prepare 7Kg/cm² dry air source |
