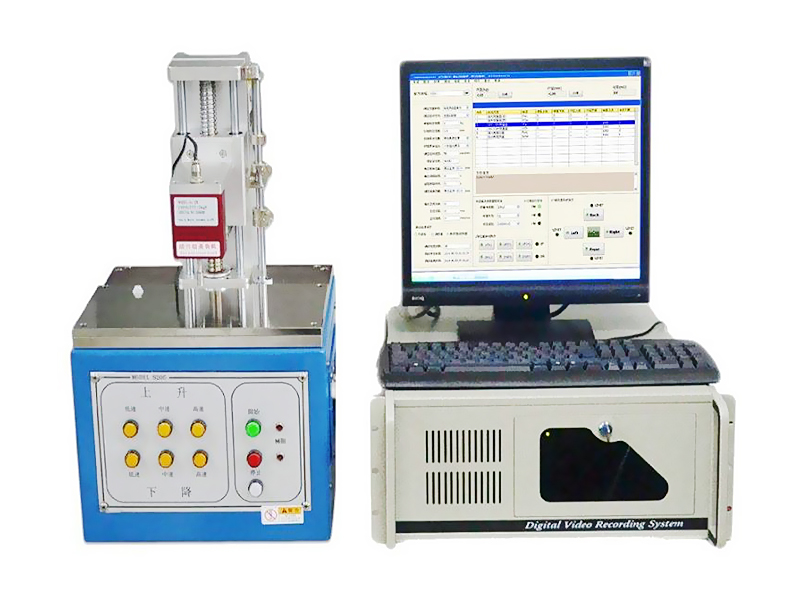

The fully automatic button load elasticity curve tester is suitable for various RUBBER, metal shrapnel, key switches, computer keyboards, mobile phone buttons, etc. for [load-stroke] curve test, and completes down pressure and rebound force test at the same time.
Features of Automatic button load meter
※ PEAK FORCE, RETURNFORCE, DISTANCE and CLICK rate can be directly displayed on the graph without manual calculation.
※ The measurement curve is memorized by the computer and can be enlarged or reduced at any time. A piece of A4 paper can arbitrarily place N graphs.
※ The upper and lower specification values of the measurement items can be input, and the measurement results can be automatically judged as OK or NO.
※ The maximum measuring stroke and load can be input, and the computer is automatically controlled.
※ The test report can be converted into EXCEL and other document report formats.
※ The inspection report can be generated automatically, no need to input again.
※ The content of the header of the inspection report can be modified at any time.
※ The test conditions are all set by the computer screen, which is convenient and fast.
※ The test data is stored in the hard disk. (Each data can be stored, unlimited times)
※ The computer directly prints and stores the force-displacement curve graph and checks the report.
※ The load unit display N, Ib, g, kg can be switched freely.
Parameters of Automatic button load meter
|Determine the maximum load||Determination of the maximum load: 2kg, 5kg, 10kg optional|
|Maximum measuring height||100mm|
|Minimum fine-tuning distance||0.01mm|
|Measuring speed range||0-100mm/min|
|Transmission mechanism||Ball screw rod|
|Drive motor||Servo motor|
|Test environmental conditions||Room temperature 20±5℃, relative humidity≤85%R.H|
