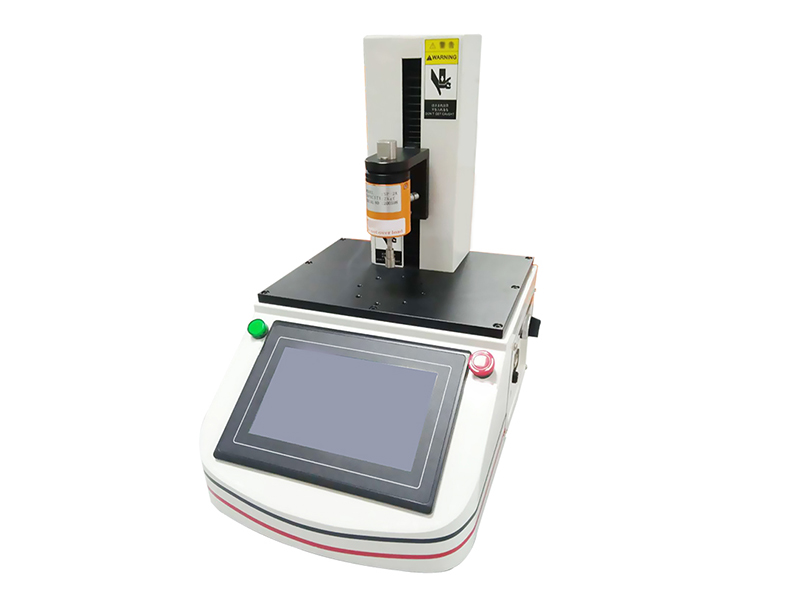

Automatic button load meter (touch type)

Automatic button load meter (touch type)

The fully automatic button load elasticity curve tester is suitable for various RUBBER, metal shrapnel, key switches, computer keyboards, mobile phone buttons, etc. for [load-stroke] curve test, and completes down pressure and rebound force test at the same time.

Description

The fully automatic button load elasticity curve tester is suitable for various RUBBER, metal shrapnel, key switches, computer keyboards, mobile phone buttons, etc. for [load-stroke] curve test, and completes down pressure and rebound force test at the same time.


Features of Automatic button load meter (touch type)

※ PEAK FORCE, RETURNFORCE, DISTANCE and CLICK rate can be directly displayed on the graph without manual calculation.


※ The measurement curve is memorized by the computer and can be enlarged or reduced at any time. A piece of A4 paper can arbitrarily place N graphs.


※ The upper and lower specification values of the measurement items can be input, and the measurement results can be automatically judged as OK or NO.


※ The maximum measuring stroke and load can be input, and the computer is automatically controlled.


※ The test report can be converted into EXCEL and other document report formats.


※ The inspection report can be generated automatically, no need to input again.


※ The content of the header of the inspection report can be modified at any time.


※ The test conditions are all set by the computer screen, which is convenient and fast.


※ The test data is stored in the hard disk. (Each data can be stored, unlimited times)


※ The computer directly prints and stores the force-displacement curve graph and checks the report.


※ The load unit display N, Ib, g, kg can be switched freely.


Parameters of Automatic button load meter (touch type)

Determine the maximum loadDetermination of the maximum load: 2kg, 5kg, 10kg optional
Minimum resolution0.1g
Maximum measuring height100mm
Minimum fine-tuning distance0.01mm
Measuring speed range0-100mm/min
Transmission mechanismBall screw rod
Drive motorServo motor
Physical dimension300*270*500(W*D*H)mm
Weight30Kg
Power supplyAC220V
Test environmental conditionsThe room temperature is 20±5℃, the relative humidity is ≤85%R.H
