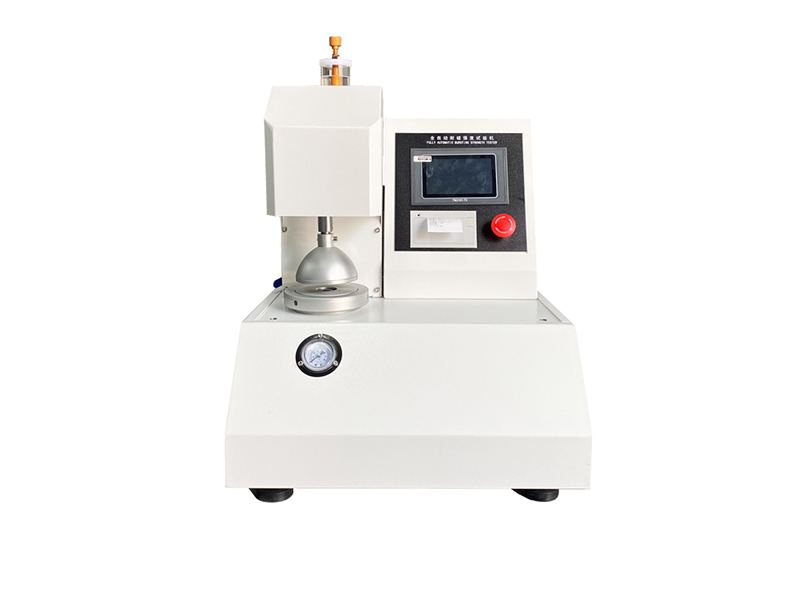

Automatic burst strength testing machine

Automatic burst strength testing machine

Comply with relevant standards, adopt pneumatic clamping sample, liquid crystal display, suitable for determination of bursting strength of cardboard, corrugated cardboard and other sheet-like plates.

Description

Comply with relevant standards, adopt pneumatic clamping sample, liquid crystal display, suitable for determination of bursting strength of cardboard, corrugated cardboard and other sheet-like plates.


Features of Automatic burst strength testing machine

1. After the cardboard is crushed, it will automatically stop and return to the initial position;


2. Fully automatic one-button operation;


3. Can store 50 sets of data at the same time;


4. Equipped with micro printing, can print test results;


5. Equipped with emergency stop button to improve operation safety;


6. Equipped with air pressure gauge to monitor pressure at any time;


7. High-definition LCD display.


8. Change the traditional method of glycerin + water and use silicone oil, the machine is not easy to rust and prolong the life of the machine.



Parameters of  Automatic burst strength testing machine

Induction methodpressure converter
Savings resultWith printing function, 10 sets of data can be printed to automatically calculate the average value
Display methodHigh-definition LCD display, digital A/D value feed rate 100 times/S, high test accuracy
Unit of strengthkgf/cm2 , Lb/in2 , Kpa (with unit switching function)
Measuring range250~6000kPa
Resolution1kPa
Measurement accuracyIndication error (better than ±1%FS), indicating value variability (better than ±1%)
Hydraulic speedHigh pressure type 170±10ml/min
Film resistanceRaised 10mm, 170kPa~220kPa; Raised 18mm, 250kPa~350kPa
Clamp materialStainless steel
Holding force>690Kpa (adjustable)
Inner diameter of upper clamp ring holeφ(31.5±0.05)mm
Inner diameter of lower clamp ring holeφ(31.5±0.05)mm
Upper chuck diameter95mm
Lower chuck diameter135mm
Hydraulic oilsilicone oil
Volume430*530*520mm
WeightAbout 70KG
Power supply1∮, AC220V
The standard configuration5 rubber films, 1 wrench, 10 calibration sheets, 1 bottle of silicone oil
