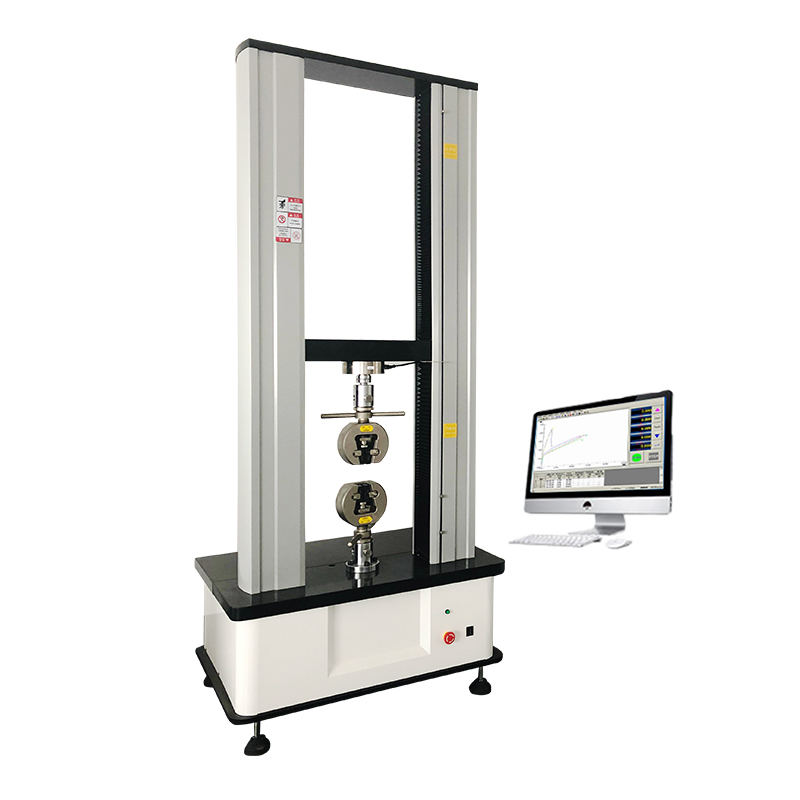

The 100KN Double Column Computerized Tensile Testing Machine can test the tensile and compressive strength, elongation and elongation of various materials, semi-finished products and finished products. Can do peeling, tearing, compression, bending, compression and other tests.
Features Of 50KN Double Column Computerized Tensile Testing Machine
This product can test the tensile, compressive strength, elongation, and elongation of various materials, semi-finished products and finished products, and can be used for peeling, tearing, bending, bending, and compression tests. It is suitable for paper, cardboard, and packaging. Film, adhesive tape and other materials quality testing. The testing machine measurement and control system is a measurement and control system designed for microcomputer electronic universal testing machines, microcomputer hydraulic universal testing machines, and microcomputer presses. It can be stretched, compressed, bent, sheared, and torn. Cracking and peeling test. PC and interface board are used for data collection, storage, processing and printing of test results. The maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus and other parameters can be calculated; Curve processing, multi-sensor support, graphical interface, flexible data processing, and MS-ACCESS database support make the system more powerful.
Test Standards For 50KN Double Column Computerized Tensile Testing Machine
Mainly suitable for testing of metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belts, safety belts, leather belt composite materials, plastic profiles, waterproof coils, steel pipes, copper materials, profiles, spring steel , Bearing steel, stainless steel (and other high-hardness steels), castings, steel plates, steel strips, non-ferrous metal wires for stretching, compression, bending, shearing, peeling, tearing, two-point extension (extensometer required) And many other tests.
This machine adopts mechatronics design and is mainly composed of load cell, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer. It has a wide and accurate loading speed and force measurement range, and has high accuracy and sensitivity in the measurement and control of load and displacement. It can also carry out automatic control tests of constant velocity loading and constant velocity displacement. Floor-standing models, styling and painting are fully considered the relevant principles of modern industrial design and ergonomics.
ASTM DIN JIS BS GB/T528—1998 /T529—1999
Parameters of 50KN Double Column Computerized Tensile Testing Machine
|Controller||Full computer operation|
|Maximum force||Optional within 100KN|
|Double column width||425mm|
|Features||Full computer control, curve, displacement, report output|
|Force display accuracy||0.001kg|
|Equipment level||0.5 level|
|Transmission||Ball screw rod|
|Fixture||A pair of tensile and rotary clamps are provided as standard|
