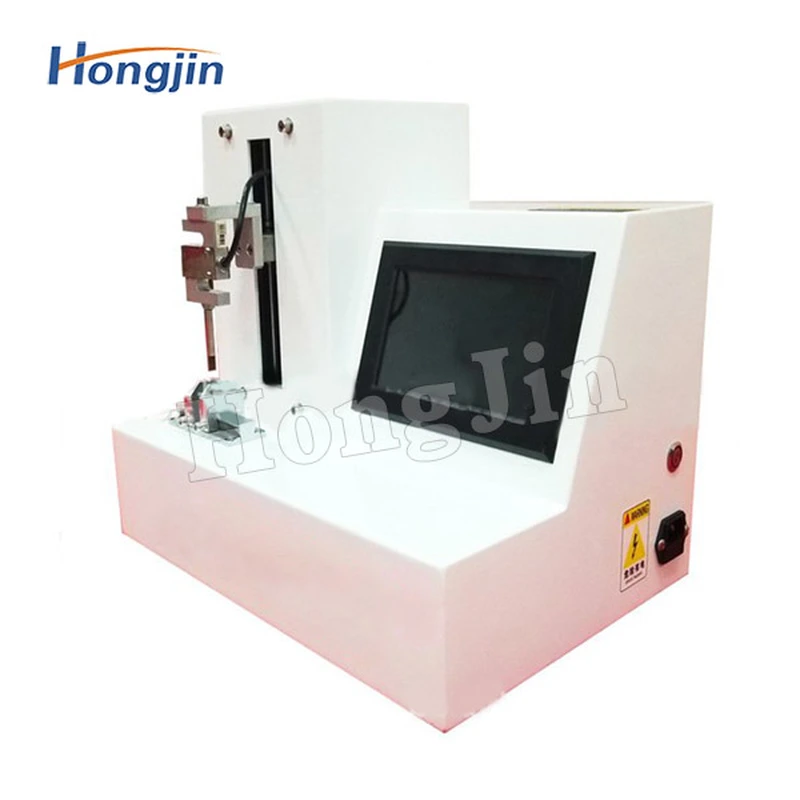

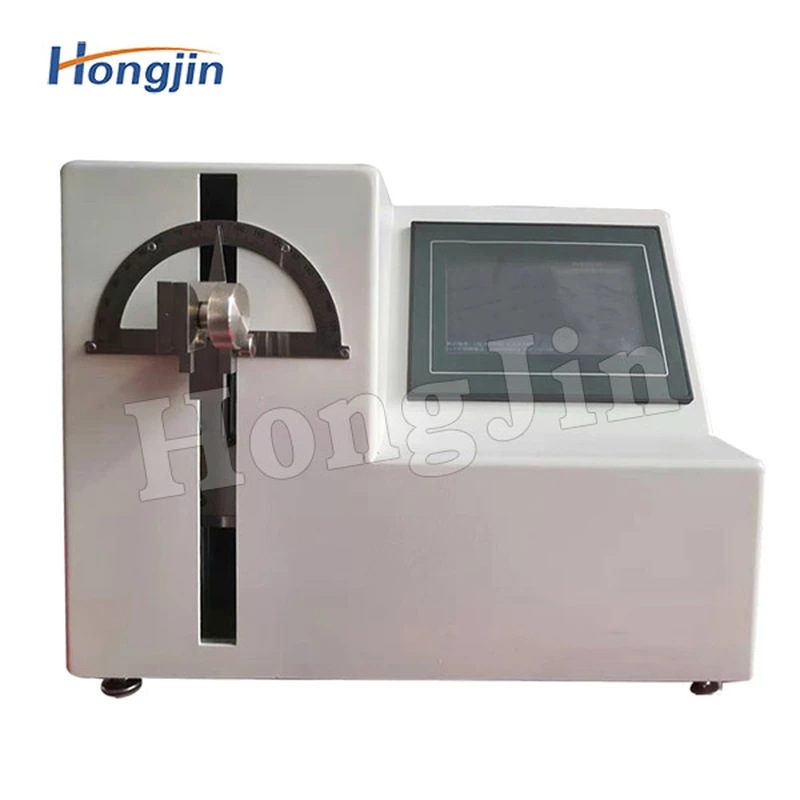

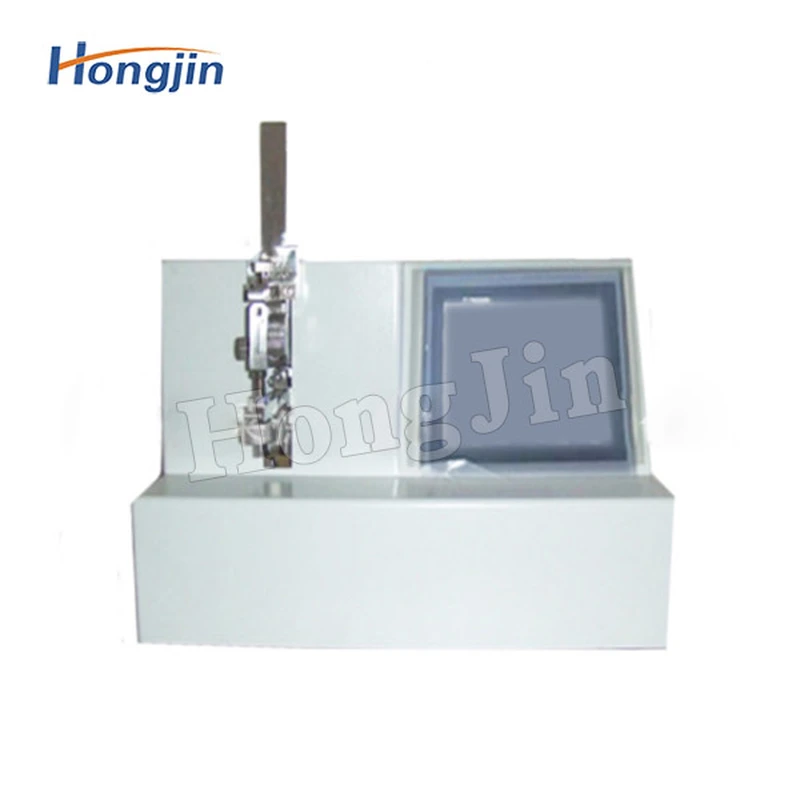

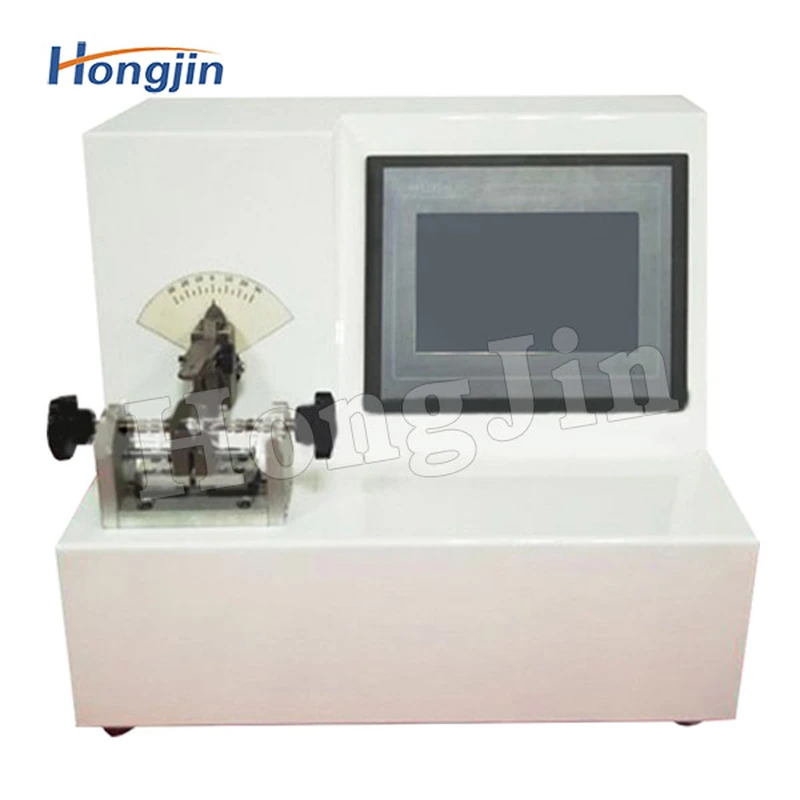

Wire bending testing machine

Two Test purpose

1. Bending resistance of wire.

2. The influence of bending on the wire.

Three. Test procedure description

The test is carried out by simulating the bending action of the conductor in the process of user use.

The two ends of the wire are fixed in the clamping block on both sides of the clamping part → both cylinders are pushed out at the same time to achieve the bending action of the wire → both cylinders are withdrawn at the same time to complete the action of the wire release.

Four. Function realization

1. The cylinder realizes the action; PLC control.

2. Large touch screen interface control.

3. Manual, automatic switch.

Product parameter table
