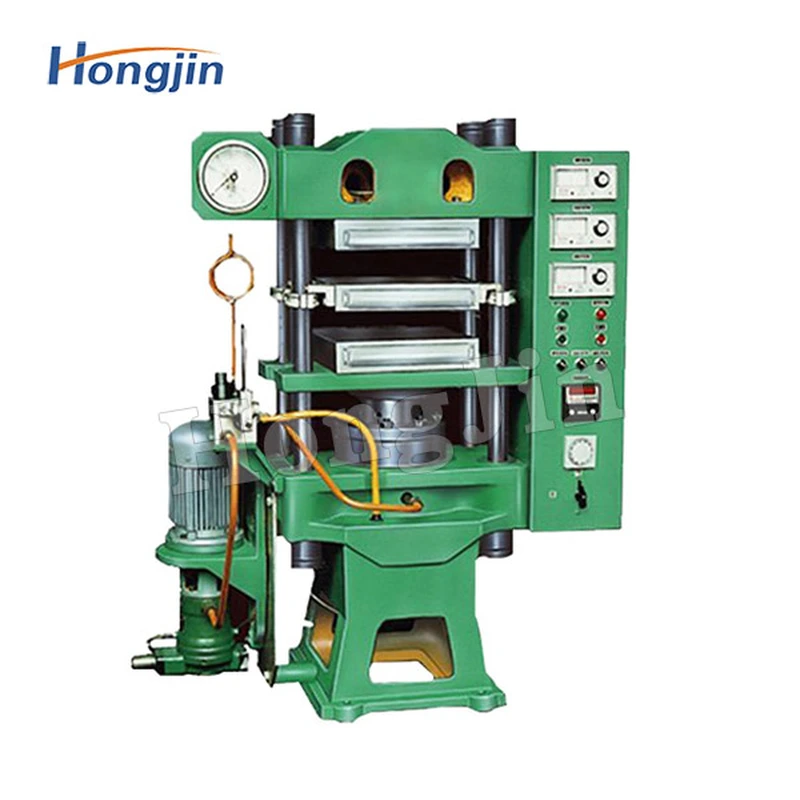

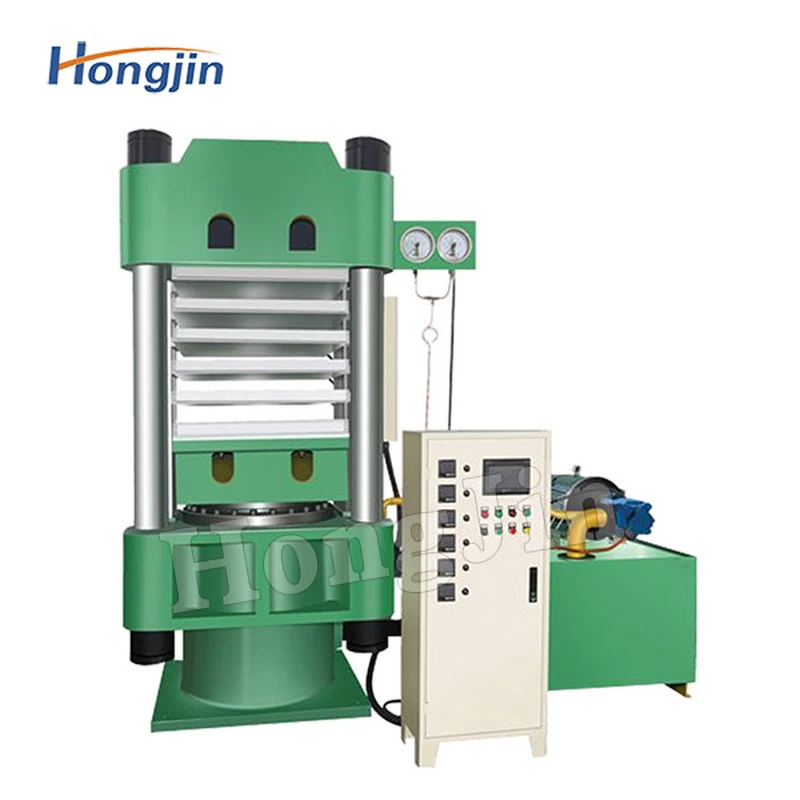

Small flat plate vulcanizing machine

Scope Of Application: Mainly Used For Pressing Various Rubber Products And Thermosetting Plastic Products. It Can Also Be Used For Ordinary Hydraulic Machinery. The Machine Adopts Column Type And Frame Structure, Which Is Simple And Reasonable In Structure, Flexible In Operation, Spacious In Space And Beautiful In Appearance. The Oil Cylinder And Plunger Of This Machine Are Made Of High-Quality Materials. The Hydraulic Station And The Electric Control Box Are Located On Both Sides Of The Main Engine, Which Is Easy To Operate.

описание

Product parameter table

Product numberHJ-350x 350×2HJ-400x 400×2HJ-500x 500×2HJ-600x600×2/4HJ-600x600×2/4HJ-1000x 1000×2
Nominal clamping force (MN)0.250.50.8112.5
Hot plate spacing(mm)125125125125125200
Working layers of hot plate22244961449612
Heat plate unit area pressure (Mpa)2.043.132.522.782.782.5
Plunger stroke250250250250/500250/500400
heating methodElectricity/steamElectricity/steamElectricity/steamElectricity/steamElectricity/steamElectricity/steam
main motor power2.22.22.22.22.25.5
External thermal power2.4kw/board3kw/board37.5kw/board7.5kw/board10.8kw/board
Dimensions length x width x height (mm)1450×400×13501600x400x14401450x690x18181880x780x1660 (2150)1880x780x1660 (2150)2400x960x2500
Machine weight (kg)1200150017002500/31002500/31008300
structure typeColumnColumnColumnColumnColumnframe
