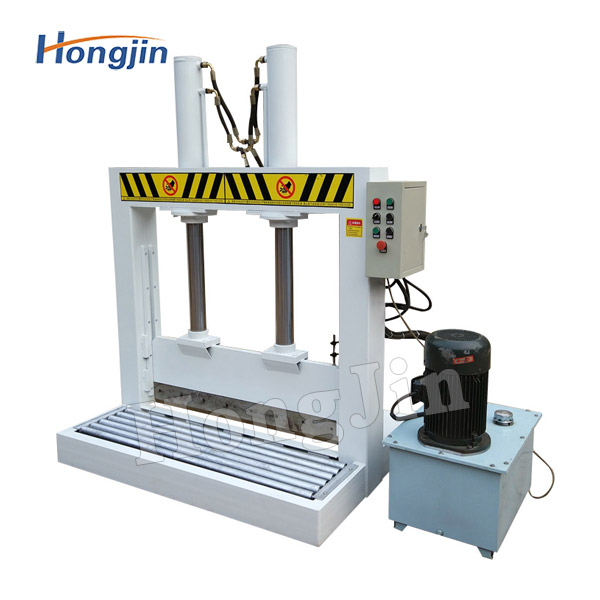

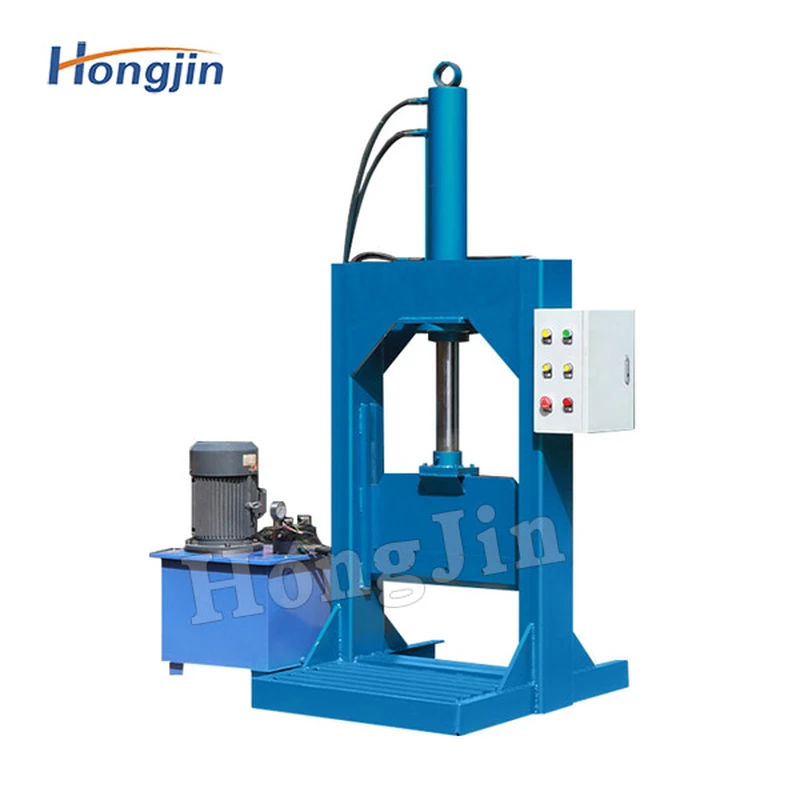

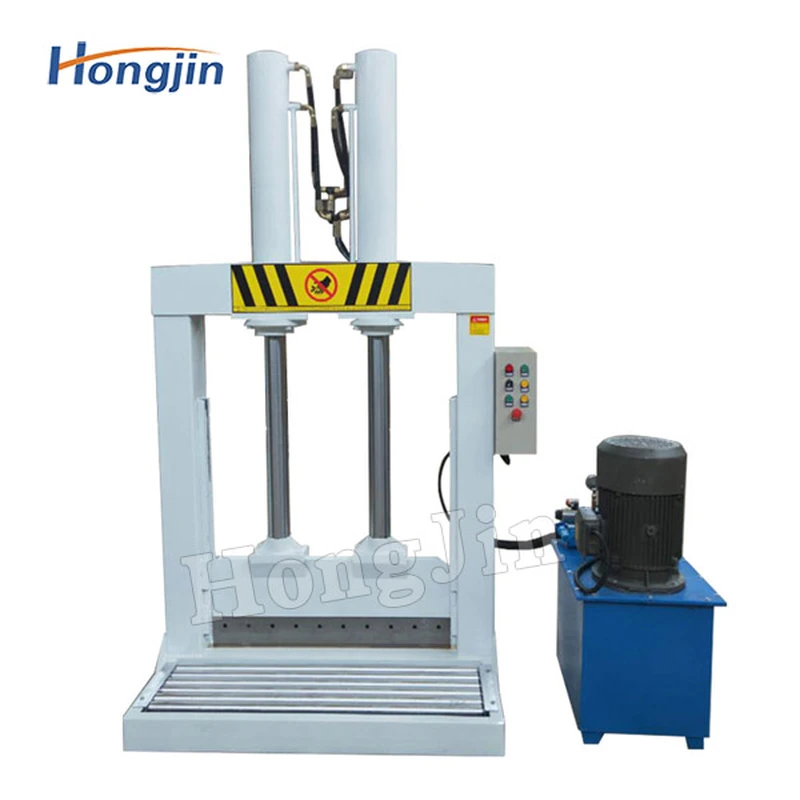

Single knife hydraulic glue cutting machine

This Machine Is Mainly Suitable For Cutting Natural Rubber, Synthetic Rubber And Other Plastic Materials, Especially Suitable For Installation Next To The Internal Mixer, Cutting Small Pieces Of Rubber And Crushing. This Machine Is Mainly Composed Of Rubber Cutter, Frame, Working Oil Cylinder, Base, Auxiliary Workbench, Hydraulic System, Electrical System And Other Parts. The Base Under The Rubber Cutter Is Equipped With A Nylon Rubber Backing Plate To Protect The Blade Of The Rubber Cutter. When Cutting Raw Rubber, Put The Rubber Material Under The Rubber Cutter Manually, And Then Press The Start Button, And The Rubber Cutter Will Fall Along The Slideway On The Frame Driven By The Piston Rod To Cut The Rubber Material. There Are Two Upper And Lower Limit Switches On The Frame To Control The Reversing Valve To Change The Movement Direction Of The Rubber Cutter, And At The Same Time To Protect The Cylinder Head Of The Piston Cylinder.
