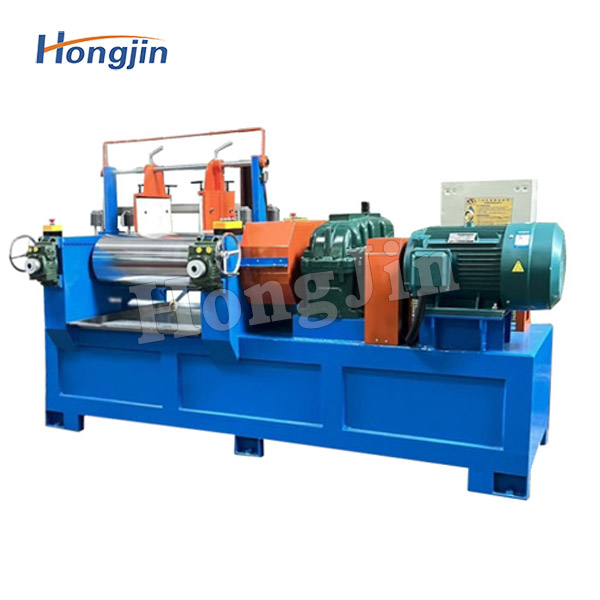

Rubber mixing machine

This series of machines is mainly used for heat refining, molding, plasticizing and mixing of rubber. The structural type is open gear transmission.

Product parameter table

Product number	HJ-550B	HJ-660	HJ-660
Roller working diameter (m)	550	660	660
Roller working length (mm)	1500	2130	2130
Front roller speed (n/min)	27.94	28.6	32.53
Roller speed ratio	1:1.22	1:1.24	1：1.09
Maximum roller distance (min)	15	15	15
Amount of glue added at one time (kg)	50-60	165	165
Motor power (kw)	110	245	245
Dimensions: length X width X height (mm)	5870×2475×2045	7465×3662×2080	7465×3662×2075
Product weight(kg)	27000	49000	49000
