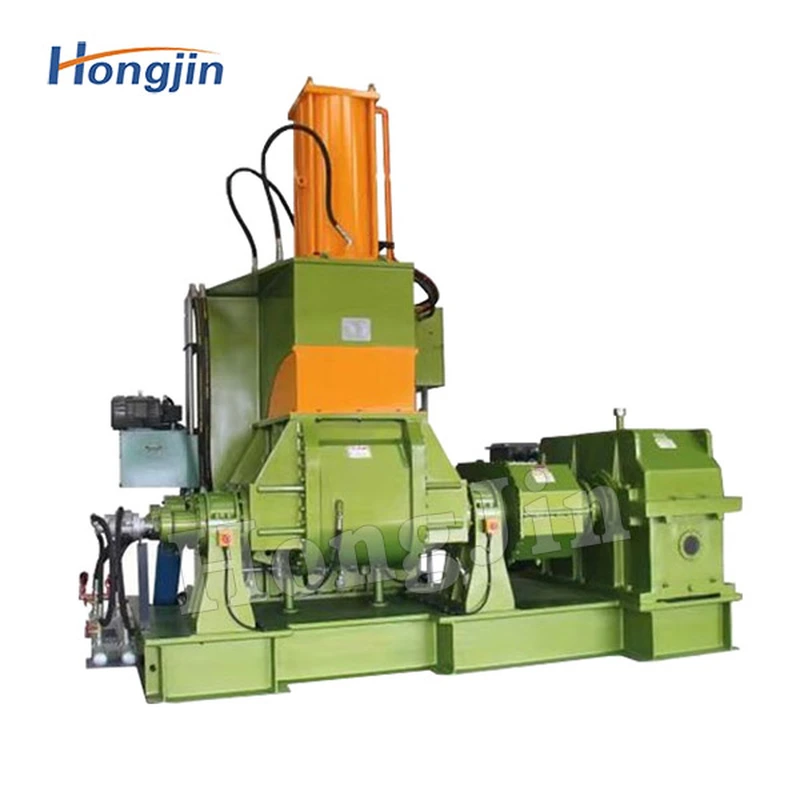

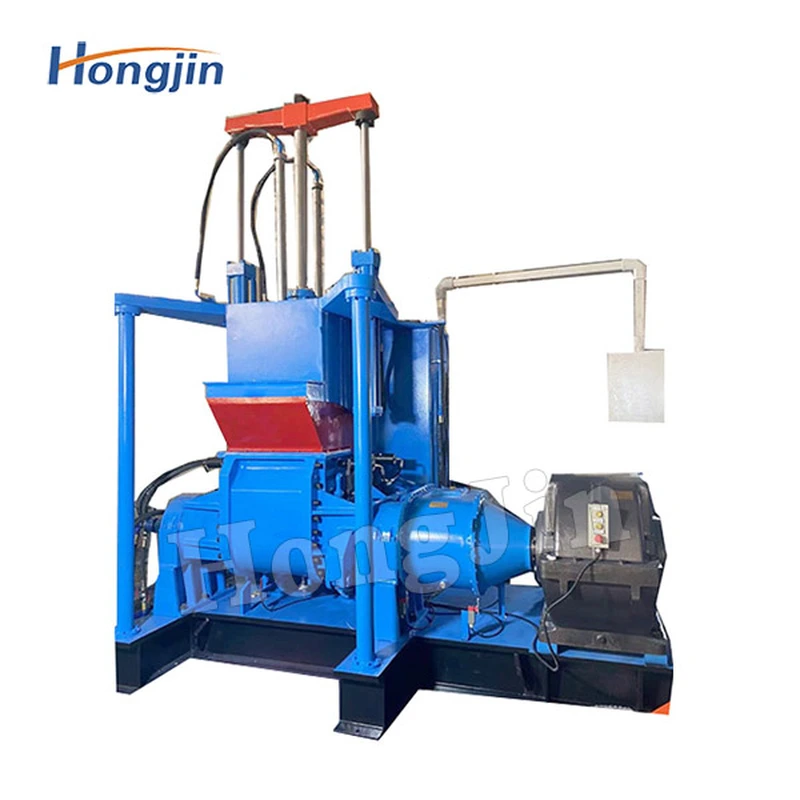

Rubber kneading machine

This machine is mainly used for mastication and mixing of natural rubber, synthetic rubber, raw rubber and plastics, blending of rubber and plastics, and also suitable for mixing of various low-viscosity materials.

описание

Advantages Of The Main Push Model:

The Sealing Device Does Not Leak Powder, The Mixing Chamber Is More Wear-Resistant, The Turning Mechanism Is Not Easy To Damage, And The Gear Of The Reducer Is Durable


Basic Structure And Features:

This Machine Is Based On The Machine Base And The Frame Is The Bone Support. It Is Equipped With A Mixing Mechanism, A Turning Mechanism, A Pressing Device, A Transmission System, A Cooling (Heating) System, An Air Pressure Control System And An Electrical Control System.


Scope Of Application:

Suitable For High-Viscosity Sealants, Plastics, Rubber, Silicone Rubber, Dyes, Pigments, Inks, Food, Gum Base, Pharmaceuticals, Architectural Coatings, Carbon, Cellulose, Neutral Acid Glass Glue, Chewing Gum, Bubble Gum, Pulp, Fiber Elements, Batteries, Resins, Cosmetics And Other Industries.


Product parameter table


projectHJ-20/32HJ-35/30HJ-55/30HJ-75/30HJ-110/30
Total capacity of mixing chamber45L75L125L180L250L
Mixing effective capacity20L35L55L75L110L
Front and rear rotor speed30/24.5rpm
Drive motor power37kw55kw75kw110kw185kw
Flip motor power1.5kw2.2kw4kw
Mixing chamber flip angle140°
compressed air pressure0.6-0.8Mpa
cooling water pressure0.2-0.4Mpa
heating steam pressure0.5-0.8Mpa
Dimensions2675*1850*2620mm3165*1893*2850mm3260*2050*2930mm3625*2570*3130mm4075*2712*3580mm
machine weight4500KG6500KG7800KG10500KG14500KG
Note: The above are stock specifications, other specifications such as 3L/5L/10L/25L/150L/200L can be customized according to customer requirements.
