Product parameter table

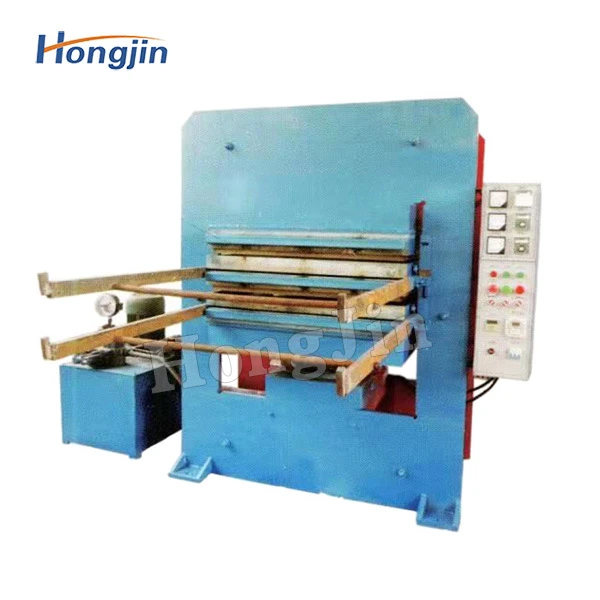

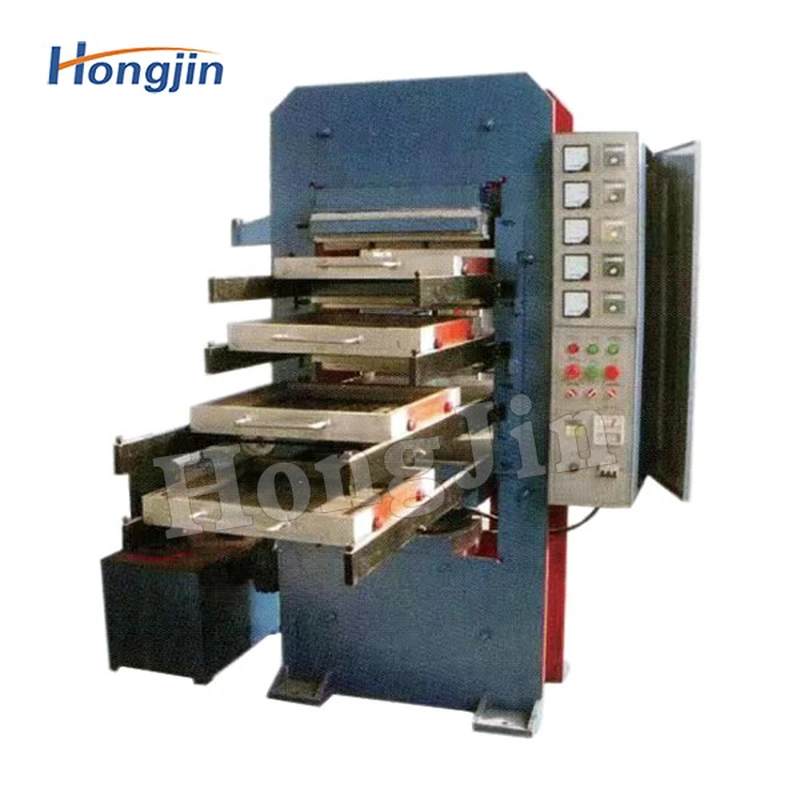

project | HJ-DZ 550*550*4 vulcanizing machine |
Total pressure MN | 0.50 (50 tons) |
Hot plate size MM | 550 * 550 * 60 |
Board clearance MM | 150 |
working layer | 4 |
Number of Hot Plates Piece | 5 |
Piston stroke mm | 400 |
Number of Pistons Set | 1 |
Piston diameter mm | 200 |
structural model | four columns |
Working pressure Mpa | 1.65 (16.5kg/cm2) |
Motor power KW | 2.2 |
Note: This vulcanizing machine is mainly used to produce rubber tiles, and each working layer is equipped with two sets of molds, which can be vulcanized in turn. Thereby improving production efficiency. |
