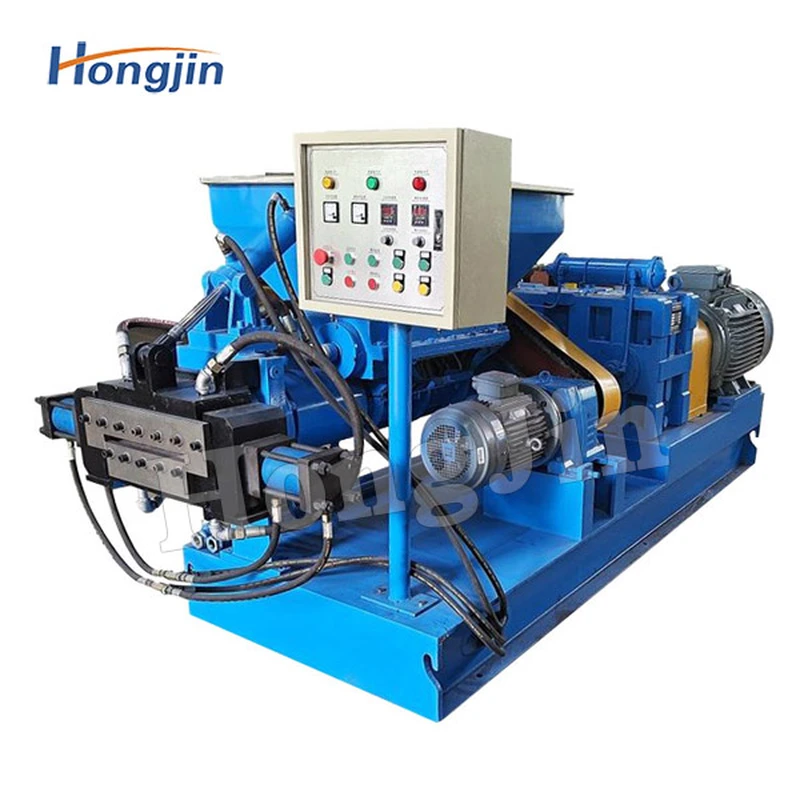

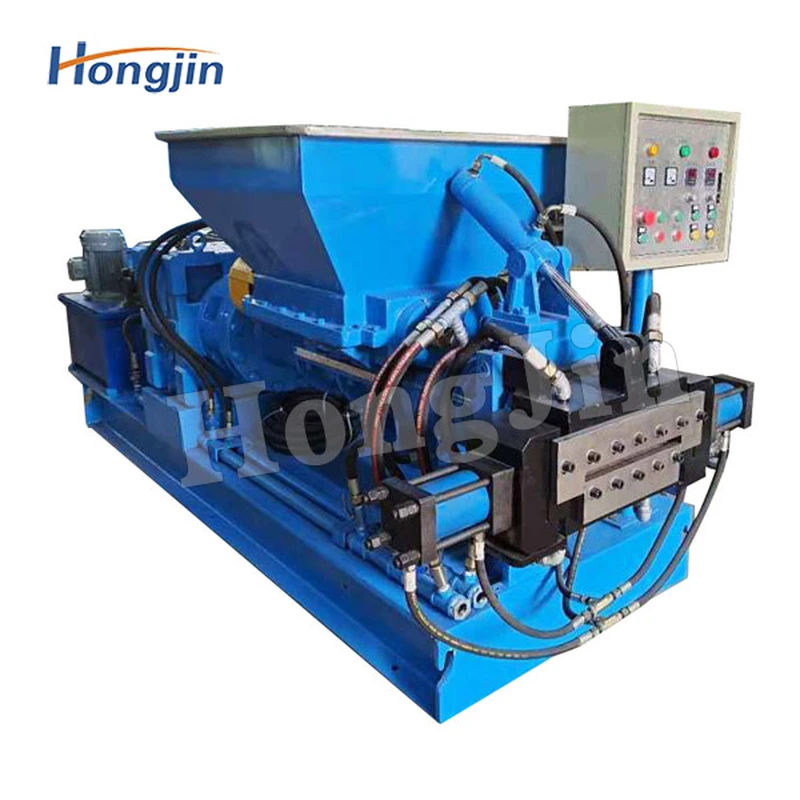

Rubber extruder

Scope Of Application: Widely Used In Cable Industry, Reclaimed Rubber Industry, Inner Tube Industry, Rubber Hose Industry And Other Rubber Product Manufacturers. It Can Make The Rubber Mixed By The Internal Mixer, Without The Old Process Of Feeding The Rubber Strips From The Open Mill To The Old-Fashioned Rubber Filter, And The Rubber Can Be Directly Fed To The Double-Pull Feeding Mechanism. Utilize The Pushing And Conveying Function Of The Screw To Remove The Impurities In The Mixed Rubber Or Reclaimed Rubber. It Is Mainly Composed Of A Lifting Feeder, A Rubber Feeding Mechanism, A Screw, A Machine Barrel, A Film Discharge Head, An Automatic Rubber Cutting Device, A Temperature Control System And A Transmission Device.

описание

Product Features:

1. The Rubber Feeding Machine Has Good Feeding Effect And Strong Film Output Ability, Which Greatly Reduces The Work Intensity Of Workers And Investment Cost. Compared With The Old Model, It Reduces Labor Intensity And Investment Cost.

2. Hydraulic Screen Changing Device, Fast Operation, No Glue Leakage, Time-Saving And Labor-Saving.

3. The Electronic Control System Uses Frequency Converters To Improve Resource Utilization, Safety And Energy Saving.

4. It Adopts Special Gear Box For Extruder With Hard Tooth Surface, Which Has Low Noise And Long Service Life.

5. The Barrel And Screw Are Made Of High-Quality Alloy Steel, Which Is Wear-Resistant And Durable After Quenching, Tempering And Nitriding Treatment.


Product parameter table


modelHJ-150HJ-200HJ-250HJ-300
Screw diameter150200250300
Screw aspect ratio L/D6.365.45.3
Barrel mouth length500600600700
Maximum screw speed60504030
Main motor power Kw45KW75KW110KW160KW
Feeding motor power5.5 KW7.5 KW7.5 KW11KW
Yield500 KG/h900 KG/h1300 KG/h2000KG/h
