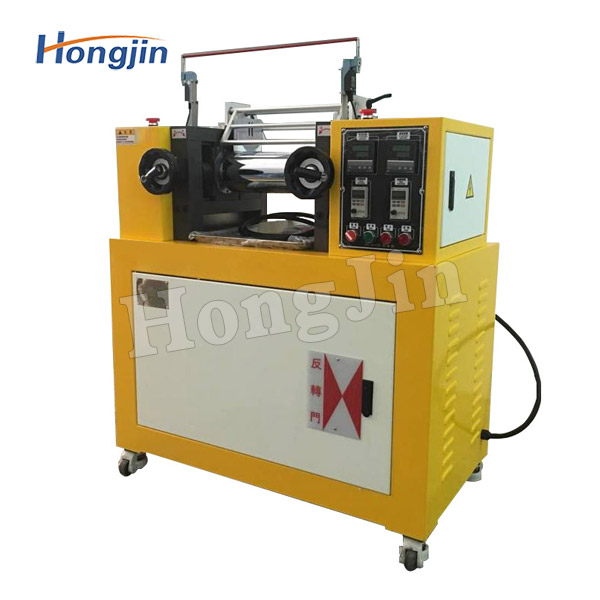

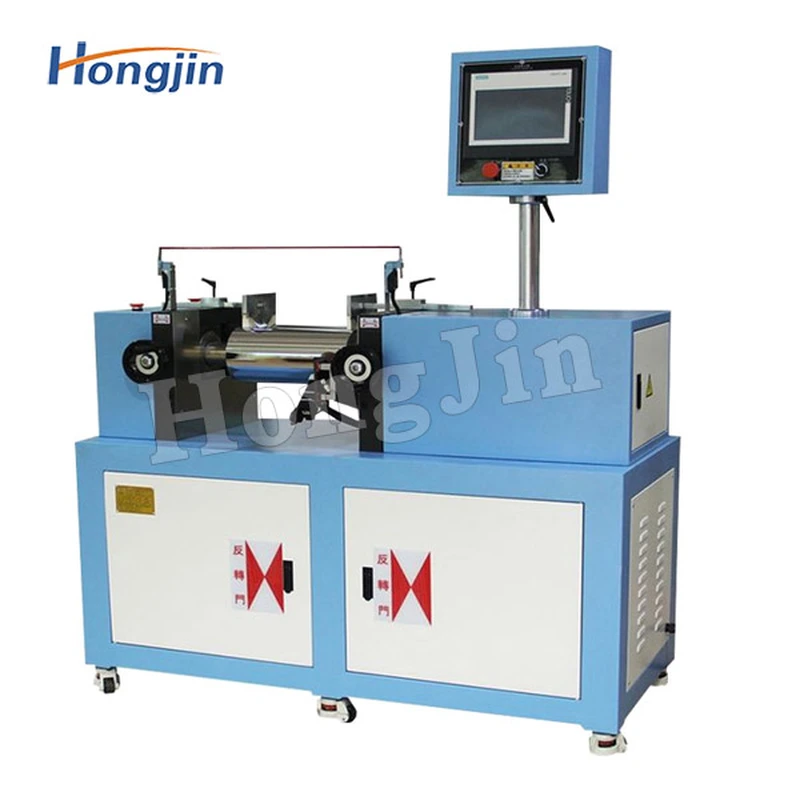

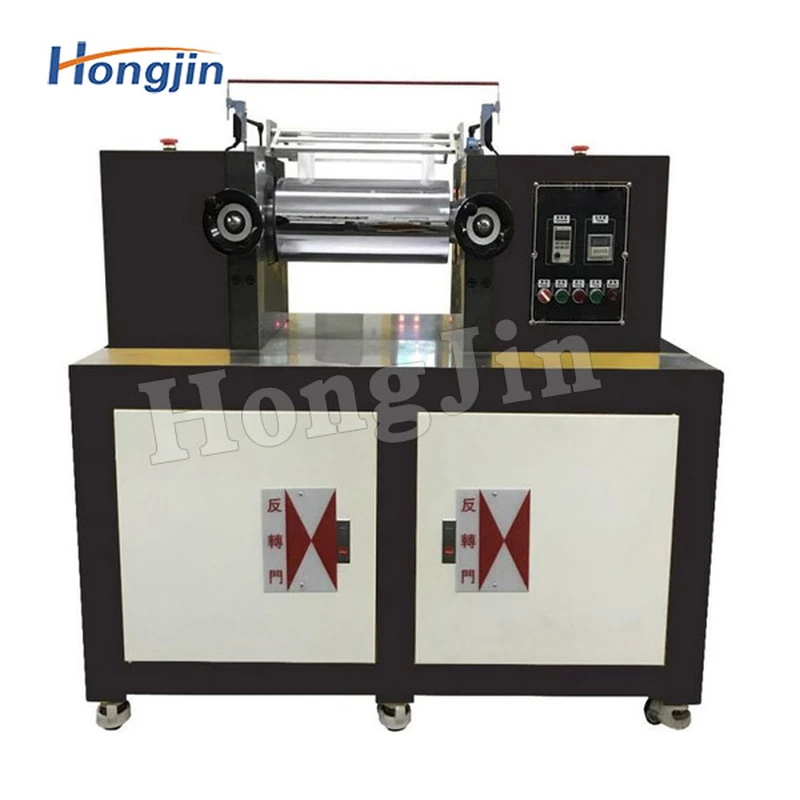

Rubber calender

It Is Suitable For Rubber Products Companies, Tire Factories, And Conveyor Belt Companies To Produce Rubber Sheets, Cord Fabrics, Etc.

Product parameter table

Item/Model	HJ-320	HJ-630	HJ-900	HJ-1500	HJ-1830	HJ-1730
Roller diameter mm	160	230	360	450	550	610
Working length mm	320	630	900	1500	1830	1730
Roller speed ratio	1:01:00
Roller speed r/min	7.79	14.8	3-20.2	2.5-24.8	2-18.7	4-36
Distance adjustment range mm	0-4.5	0-5.5	0-10		0-12	0-15
Product minimum thickness mm	0.2
Product width Mm	250	580	920	1250	1600	1500
Motor power kW	5.5	15	37	45	75	90
