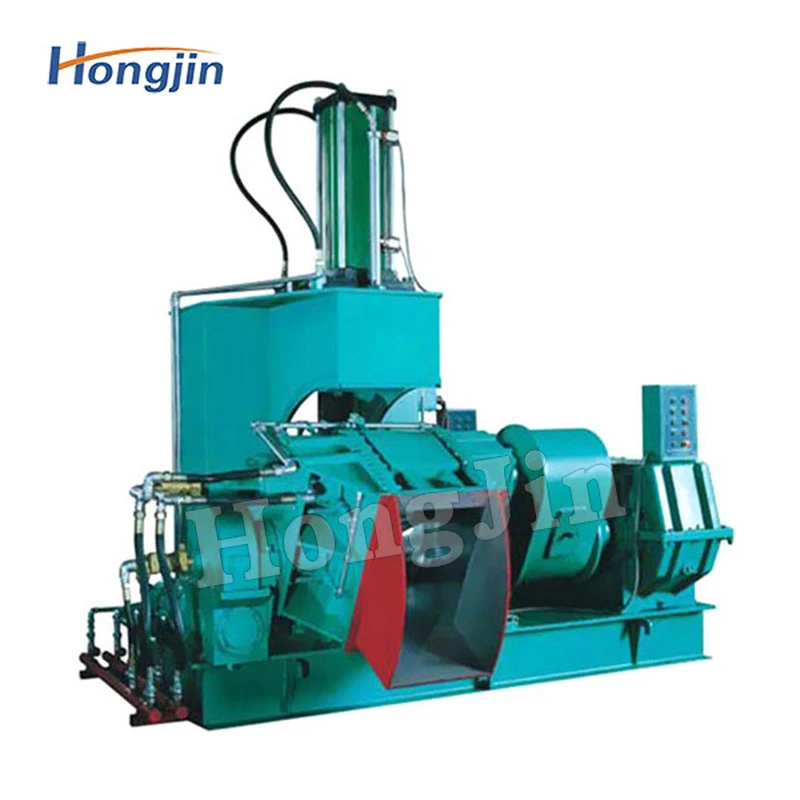

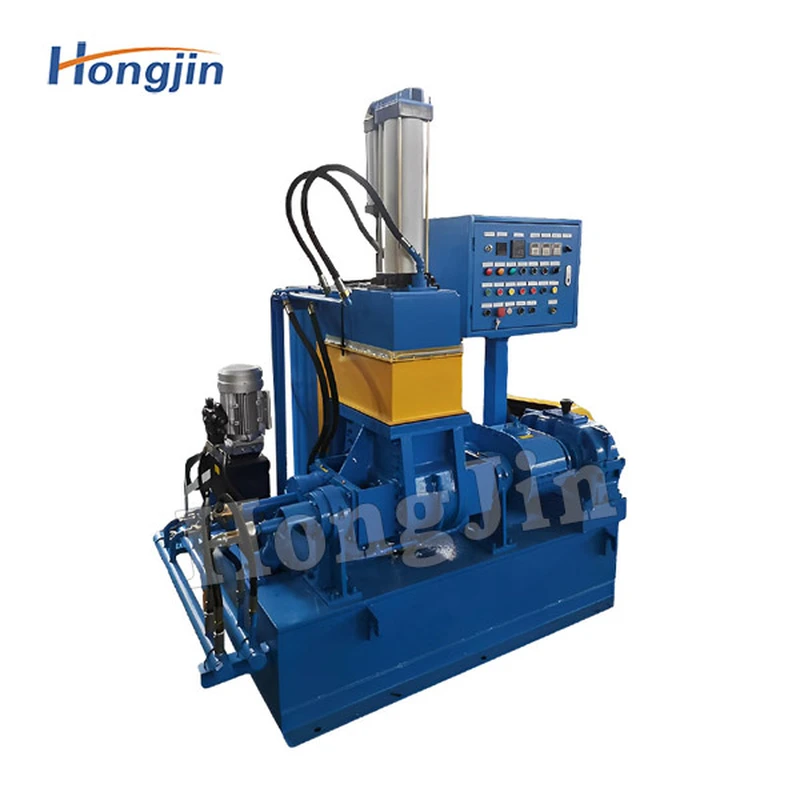

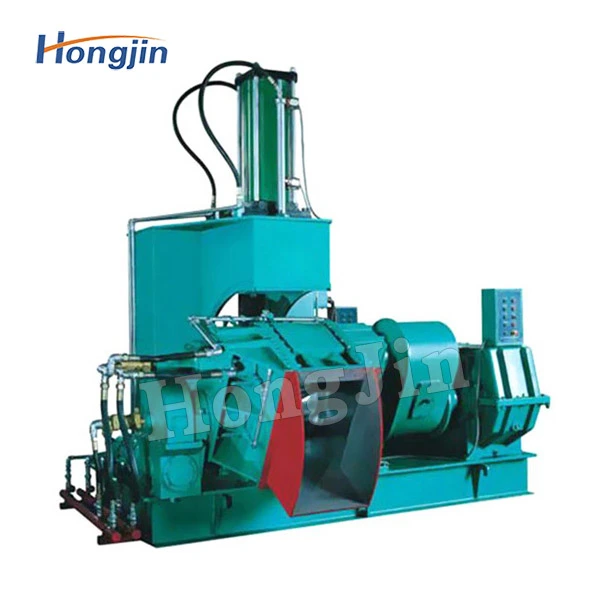

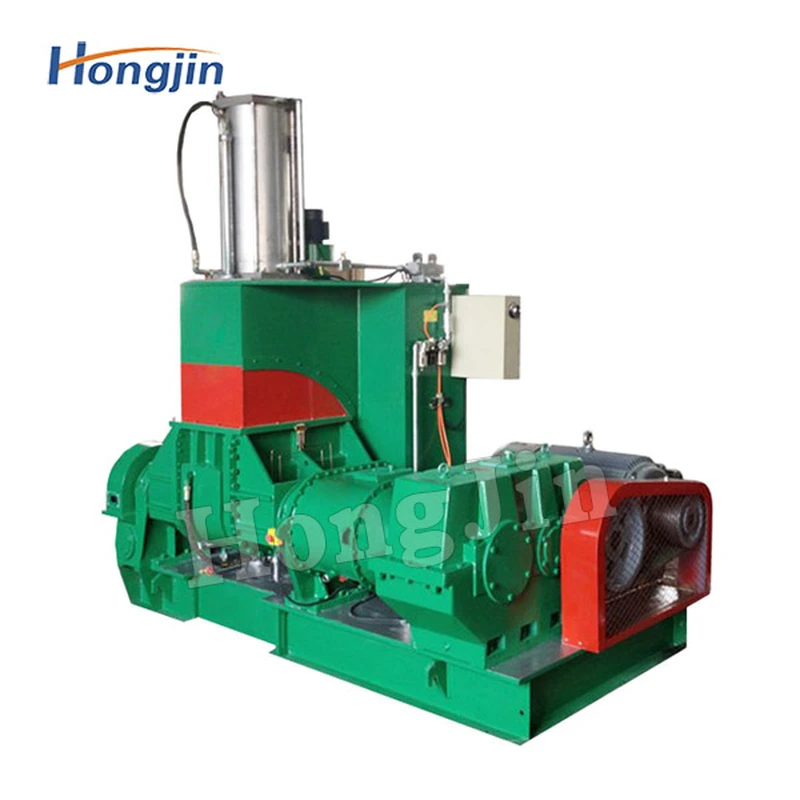

Pressurized kneading machine

Scope Of Application: The Pressurized Kneader Is Suitable For Mastication Of Rubber And Plastic And Mixing Of Various Rubber Materials. The Pressurized Kneader Is Composed Of A Motor, A Pressing Device, A Frame, A Mixing Chamber And A Rotor Mechanism, A Plastic Reducing Machine, An Air Control System, A Turning Device, A Heating And Cooling System, A Belt Drive And A Base.

описание

Product parameter table

modelHJ-35/30HJ-55/30HJ-75/30HJ - 110
The total volume of the mixing room L75125175250
The total working volume of the mixing room L355575110
Front and rear rotor speed ratio0.00070833301:01.201:01.21.22
Main motor power KW5575110160
Main motor speed rpm985985980985
flip angle140°140°140°140°
Dimensions length × width × height (mm)3200×1900×29503750×1950×30503760×2143×36503930×3000×3660
Weight Kg650078001000016000
