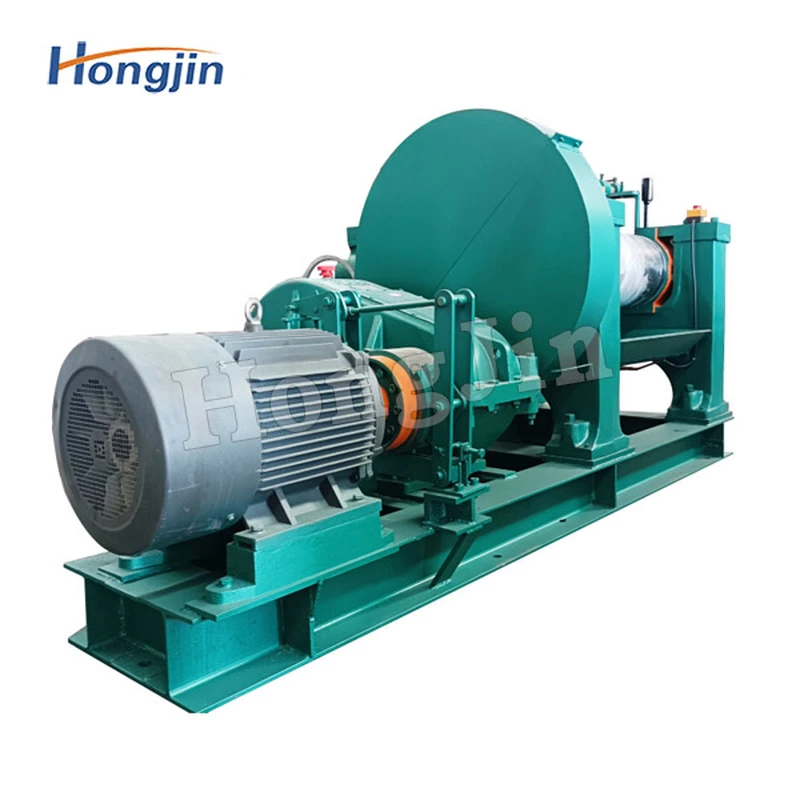

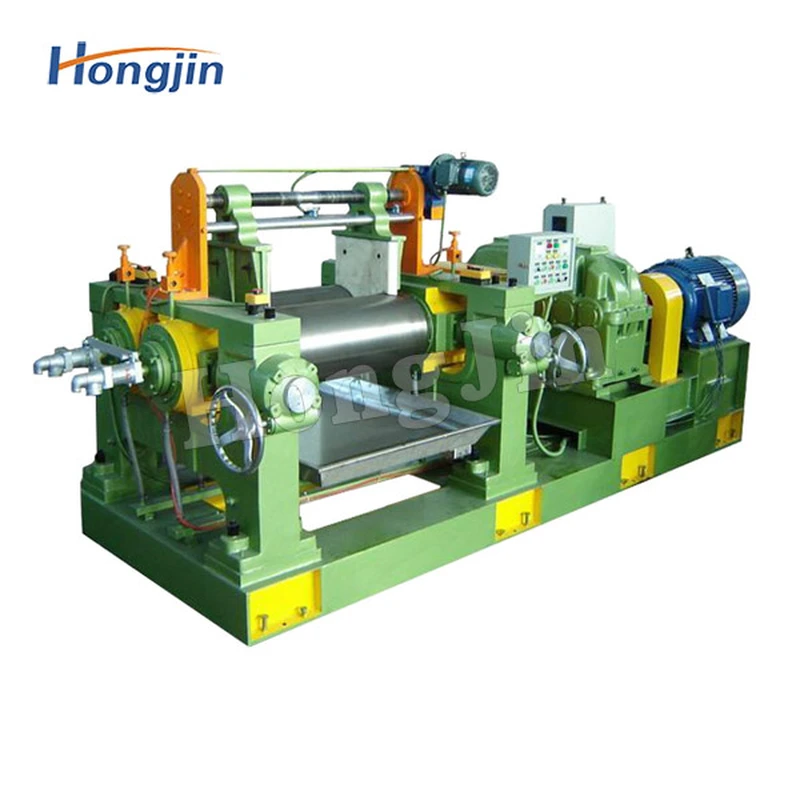

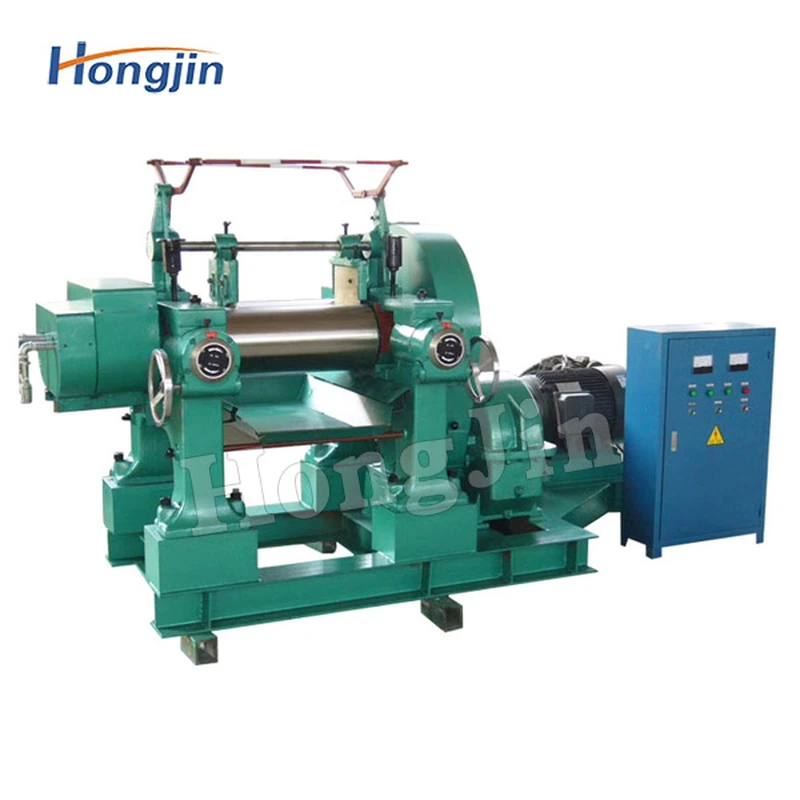

Open rubber mixing machine

Scope Of Application: This Series Of Machines Is Mainly Used For Heat Refining, Molding, Plasticizing And Mixing Of Rubber. The Structure Type Is Open Gear Transmission.

описание

Product parameter table

Product number	HJ-160	HJ-250	HJ-400	HJ-450	HJ-560
Roller working diameter(mm)	160	250	400	450	560
Roller Working Length(mm)	320	620	1000	1200	1530
Front roller speed (m/min)	8.89	15.3	18.65	24.32	27.72
Roller speed ratio	1:1.35	1:1.1	1:1.27	1:1.27	1:1.2
Maximum roller distance(min)	4	8	10	15	15
Amount of glue added at one time (kg)	1-2	10-15	18- 35	25-50	35-50
Motor power (kw)	5.5	18.5	37	55	90
Dimensions: length X width X height (mm)	1160x920x1370	3120×1322×1500	4350×1850×1780	5670x2390x1670	5845x2284x1978
Product weight(kg)	1000	4000	7600	12000	23000
