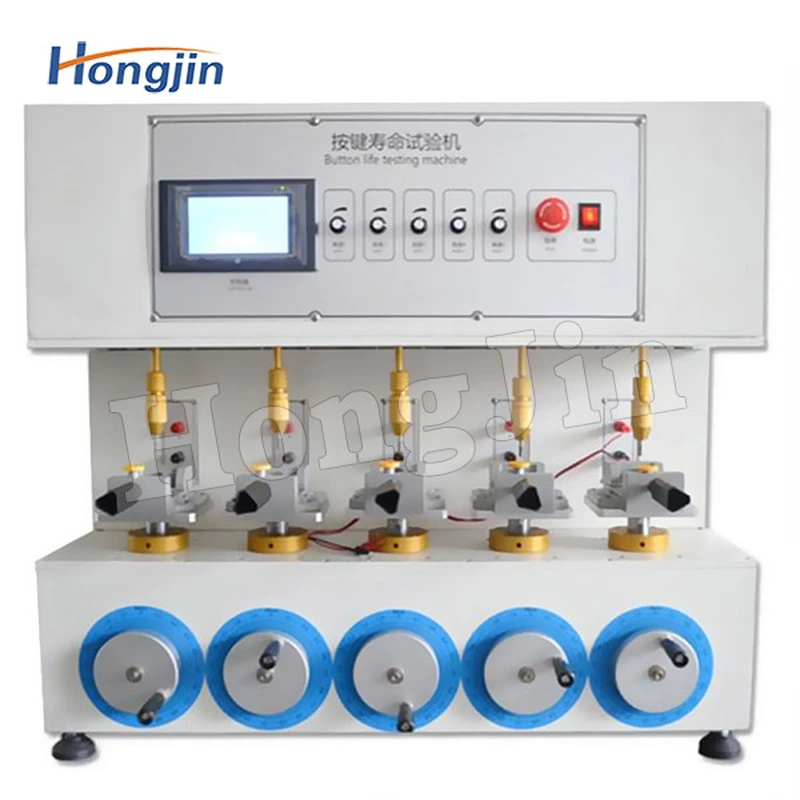

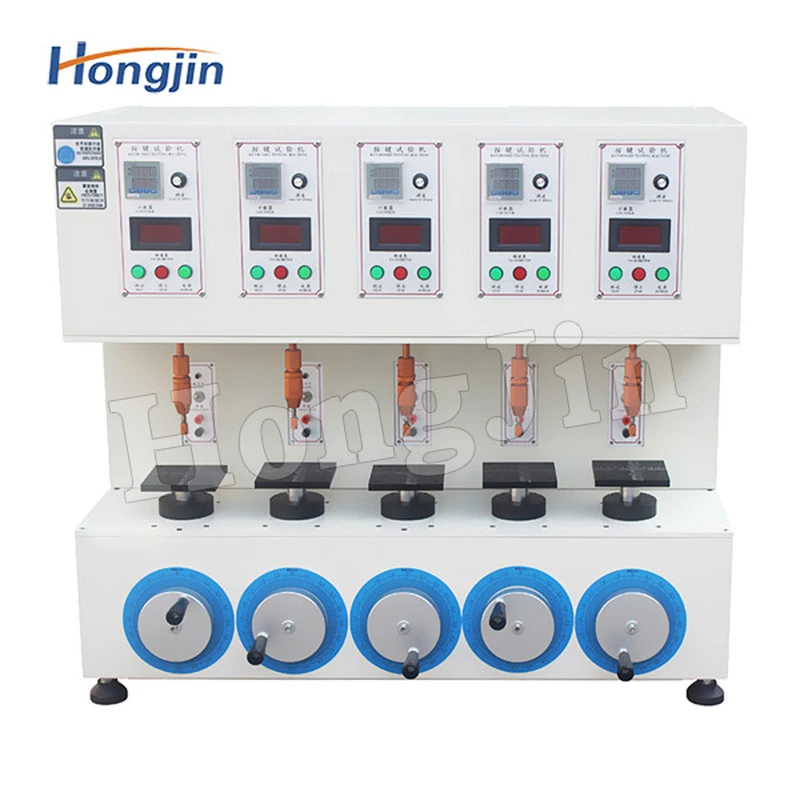

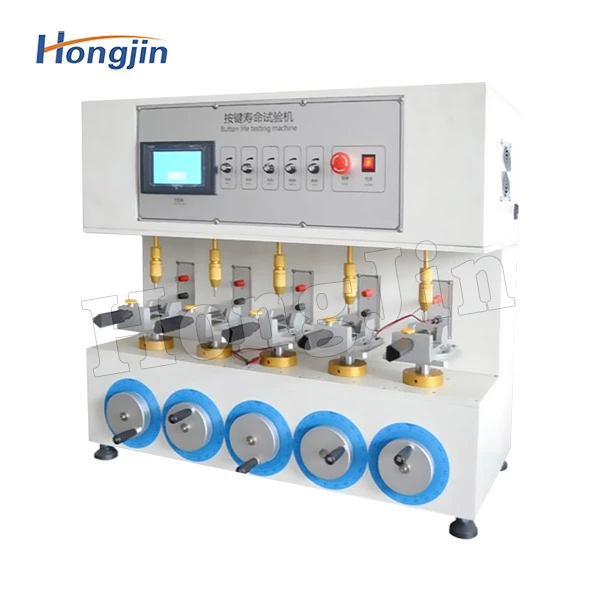

Multi-station key life testing machine

Product features:

1, the box adopts electrostatic spray painting treatment, the work surface adopts aluminum sandblasting treatment, beautiful and generous, the whole machine design is reasonable, the structure is tight, the operation is stable, safe and accurate;

2, according to all kinds of key products test manufacturing, test fixture, stroke adjustable, widely used;

3, multi-group work at the same time, greatly improve the test efficiency;

4, test speed, frequency, humanized design, easy and fast operation;

5, each station has a corresponding on-off counter, key failure, break on, the corresponding counter will automatically stop counting, convenient to timely know the product related test information.

1, test station: multiple (simultaneously working);

2, load weight: 50, 100, 200, 300, 500g four (optional)

3, test counter: 0~99999999 times (preset, LCD display)

4, test turn-on counter: 0~999999 times (multi-station turn-on automatic count, disconnect automatic stop count);

5, test speed: 5~60 times/min (adjustable knob, LCD display);

6, test stroke: 0~60mm (manual adjustable);

7, the test fixture conventional clamping range: 60×70mm (manual adjustable);

8, the test rod fixed device adjustable range: 0~180mm;

9, overall size (LxWxH) : 500×400×550mm;

10, machine weight: 25kg;

11. Working power supply: AC220V, 50HZ.
