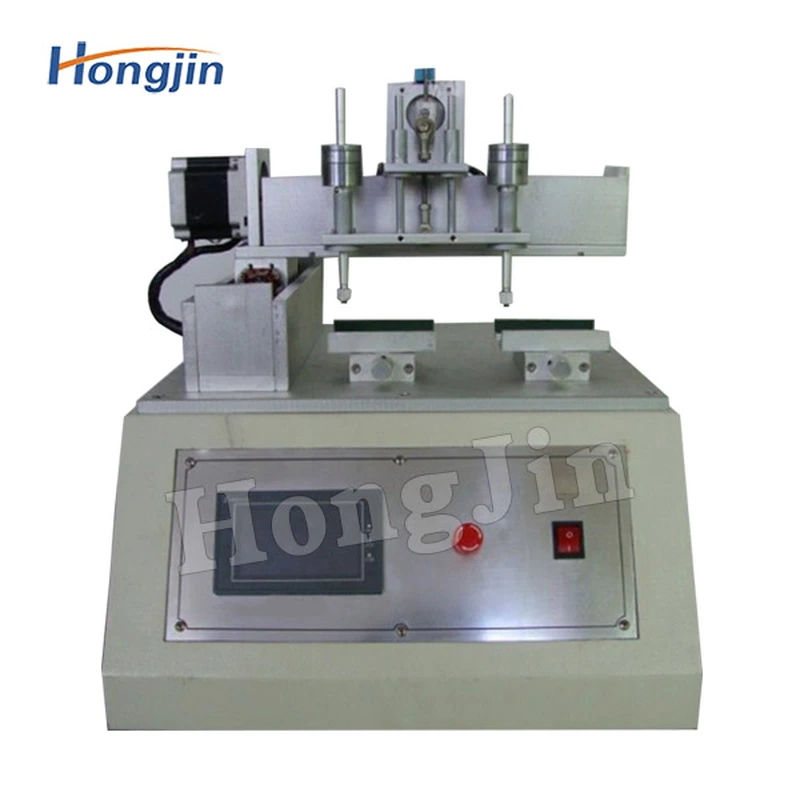

Mobile phone touch screen scratch testing machine

1. Durability of touch screen.

2. Wear resistance of touch screen.

3. Other functional tests.

Test process description:

Simulate the user in the process of using the touch screen with the stylus operation of the action test. The mobile phone is fixed in the horizontal (adjustable Angle) fixture → the stylus is fixed in the vertical direction of the touch screen fixture (vertical floating, can be balanced)→ The motor drives the mobile phone fixture, driving the mobile phone to and from the linear movement → The stylus is scratched on the touch screen test.

Function implementation:

1. Servo motor to achieve action; PLC control.

2. Large touch screen interface control.

3. Test distance, speed automatic input adjustment.

Product parameter table
