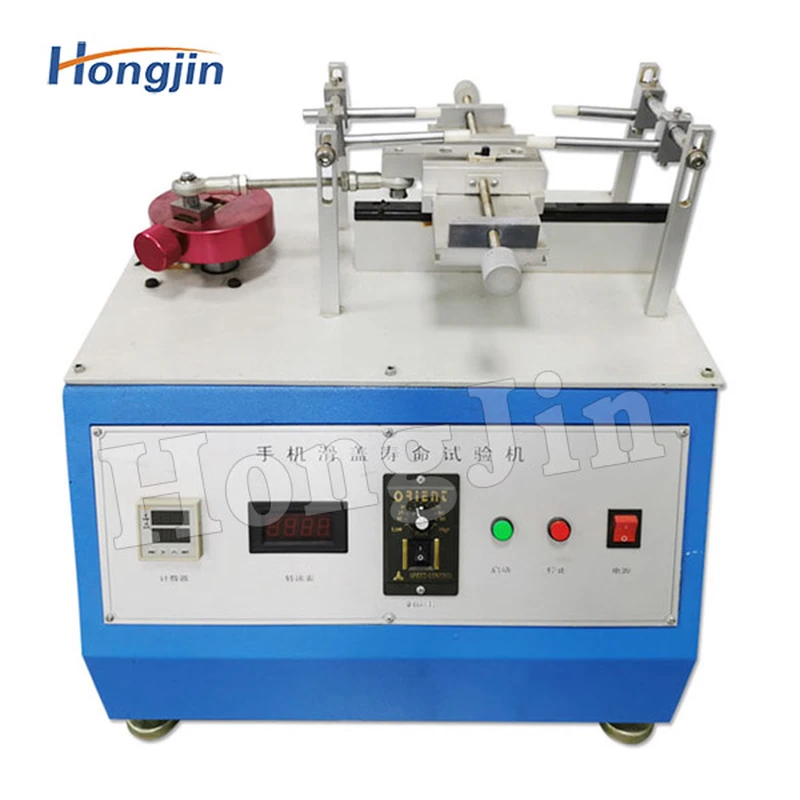

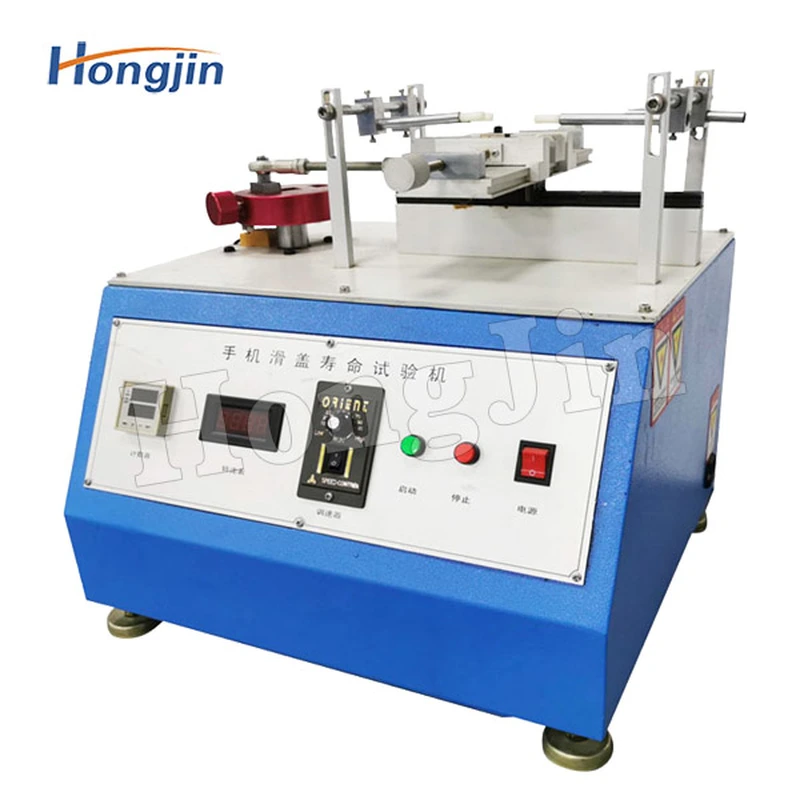

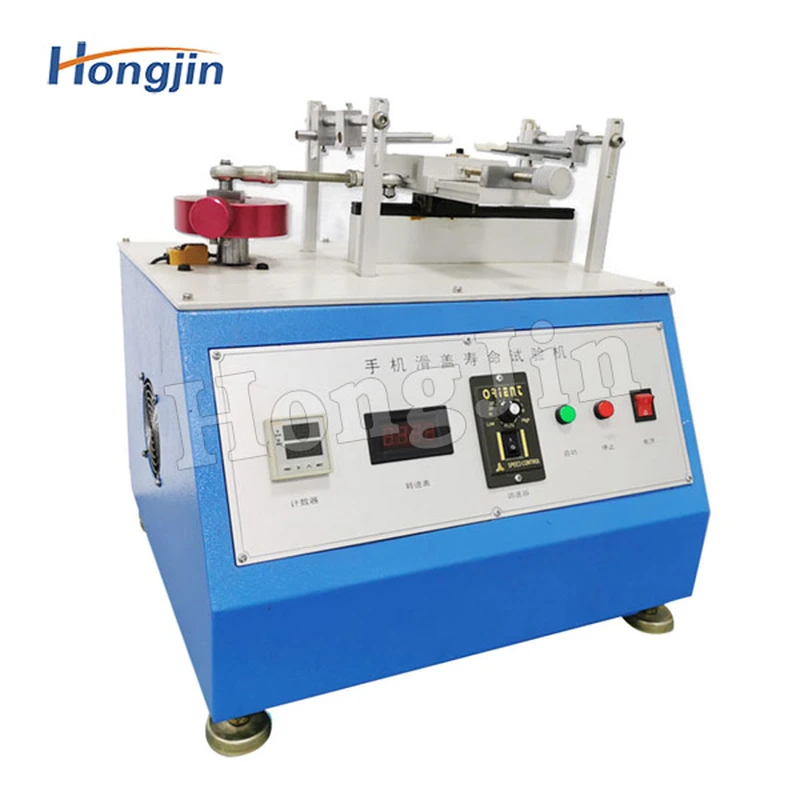

Mobile phone slide life testing machine

The mobile phone slide cover life testing machine can simulate the action when the hand opens and closes the mobile phone slide cover, and can push the slide cover for a long time to do front and back movement to test the mobile phone slide spring and slide flexible circuit board after N times of sliding, the quality of slide spring and slide flexible circuit board is reliable.

описание

Product features:

1, mobile phone slide cover testing machine is a special equipment for fatigue test of mobile phone slide cover.

2, the structure design is reasonable and unique, and it has full applicability to different models of mobile phones.

3, using the sensor to directly detect the slide count.

4, equipment stable operation, low noise, maintenance-free.

Product parameter table

Test station	one set of individual movements
Tontrol method	Using PLC controller, program control
Man-machine interface	Adopt super large touch screen imported from Taiwan, the interface is clear and easy to operate
Drive source	Linear motion cylinder
Slider stroke	1-70mm
Bottom pressure	Max 500g (adjustable)
Slider speed	1-100 times/min
Test phone thickness	10-60mm
Test phone width	10-80mm
Times setting	0-999999
Counting method	Full stroke count once
Test progress	The bar graph is dynamically displayed, and the machine movement is automatically recorded.
Slide cover sliding mode	Can simulate finger push method or key start method
Fixture	Up and down clamping, can clamp various mobile phone arc surfaces, stable clamping
Air pressure	Factory air pipe or another air compressor (5 kg/cm^2)
Power supply	AC220V (or specified)
