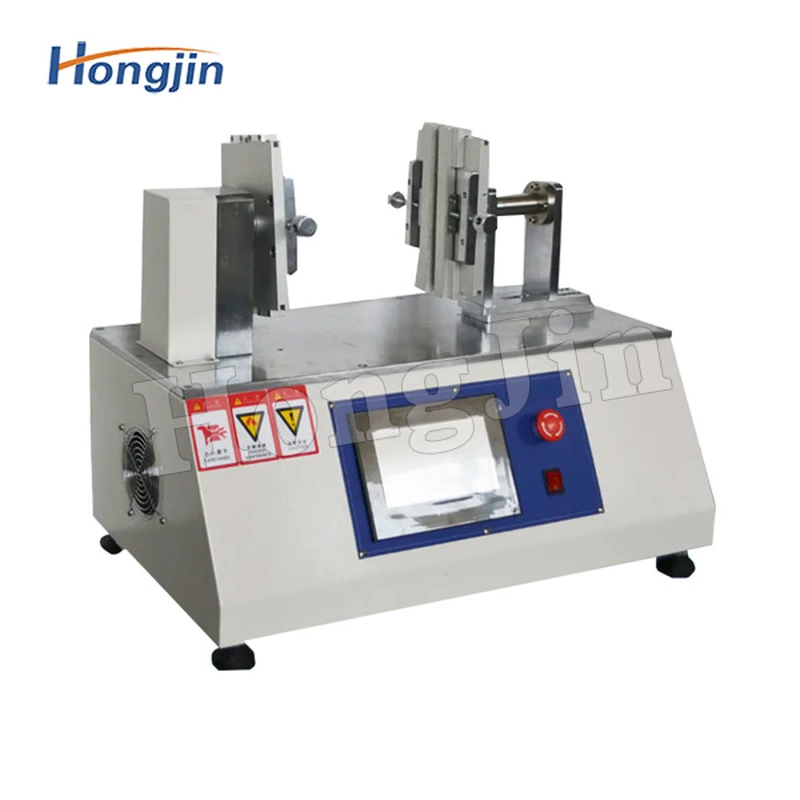

Mobile phone distortion testing machine

1, mobile phone distortion tester testing mobile phone anti-distortion performance equipment.

2, the structure design is reasonable and unique, and it has full applicability to different models of mobile phones.

3. Stable operation, low noise, maintenance free.

описание

Test purpose:

1. The durability of the mobile phone shell.

Test process:

Simulation of the user in the process of use, the mobile phone by the distortion of the action of the test. One end of the length direction of the phone is fixed in the twisting fixture, and the other end is floating (the bilateral gap is about 1mm) in the fixed fixture → the motor drives the twisting fixture to rotate forward and backward.

Product parameter table

Number of workstations	1/set
Operation method	Touch screen
Action actuator	Stepper motor
torque	2N.m (adjustable)
Rotation angle	±90°
Warp frequency (beat)	1～30 times/min (adjustable)
counter	6 bits (built-in)
Voltage	220V
power	50W
Overall dimension	480㎜×480㎜×500㎜
weight	50kg
