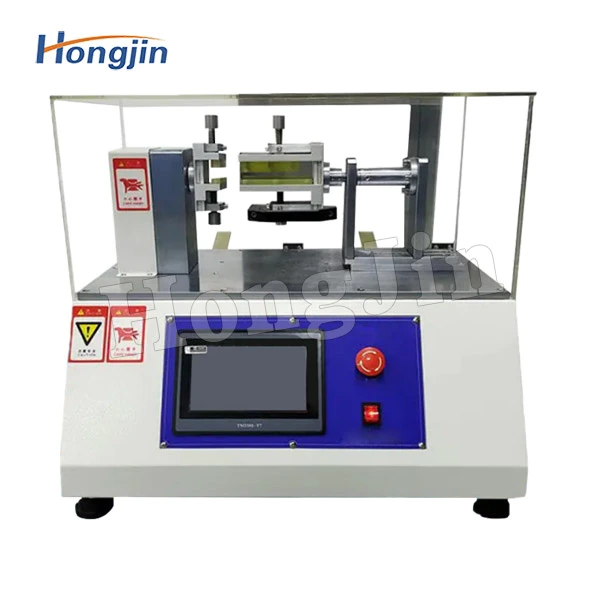

Mobile phone case torsion testing machine

Mobile phone shell torsion testing machine, used to test mobile phone shell torsion test, using PLC and HJ control system, can set the torsion value to test the number of torsion life, the mobile phone shell shape is normal, positive and negative turn once count one times. Touch screen screen coordination display, easy to operate. Meet YD/T 1539-2006 standards.

описание

Equipment features:

1. Mobile phone (shell) torsion tester A device for testing the anti-distortion performance of mobile phone/mobile phone shell.

2. The structure design is reasonable and unique, and it has full applicability to different models of mobile phones/mobile phone cases.

3. Stable operation, low noise, maintenance free.

Product parameter table

Test station	1
Test speed	0-60 times/min
Testing frequency	0-9999999 times (can be set arbitrarily)
Torque setting range	0-10kgf.cm
AC Servo Motor	220V/750W
Overall size of the machine	380560580mm
Power supply	AC220/50HZ
Weight	About 35kg
Twisted at a certain angle for dwell time	1 second to 5 minutes
