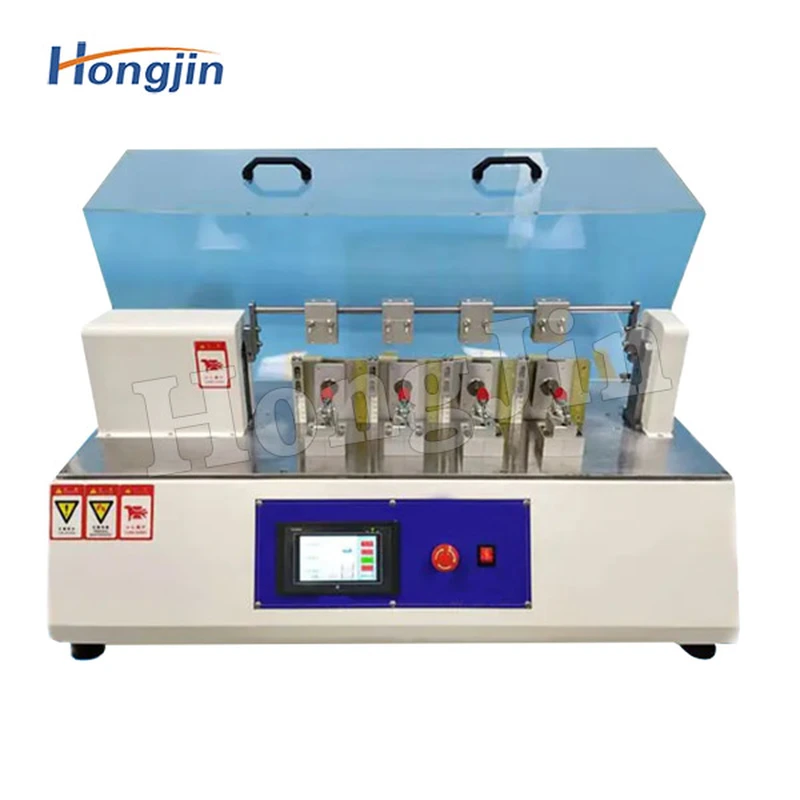

Mobile phone case bending testing machine

Equipment features:

1. The machine adopts servo motor closed-loop control to make the test data more accurate.

2. Four stations, the upper part is fixed with screws, the lower part is fixed with quick fixture, easy to operate and save time.

3. The machine adopts touch screen control, the operation is more convenient and intuitive, and the test times and angles can be set arbitrarily, easy to operate.

4. The body adopts electroplating electrostatic paint treatment, which makes the appearance more beautiful and generous.

Mode of operation:

1. First, put the mobile phone shell to be tested under the jig and lock the shell.

2. Select the Angle to be tested according to the actual requirements. At this time, click the "Operation screen" on the screen to enter the operation screen to complete the setting of bending Angle, bending speed and other parameters.

3. Click the "Start" button after setting, the instrument begins to press down the housing for bending, and the pressure rod of the device automatically resets after the test is completed.

4. Take out the tested sample and determine the test result.

5. In case of emergency, press the emergency stop button directly.

6. After the test, power off the machine.
