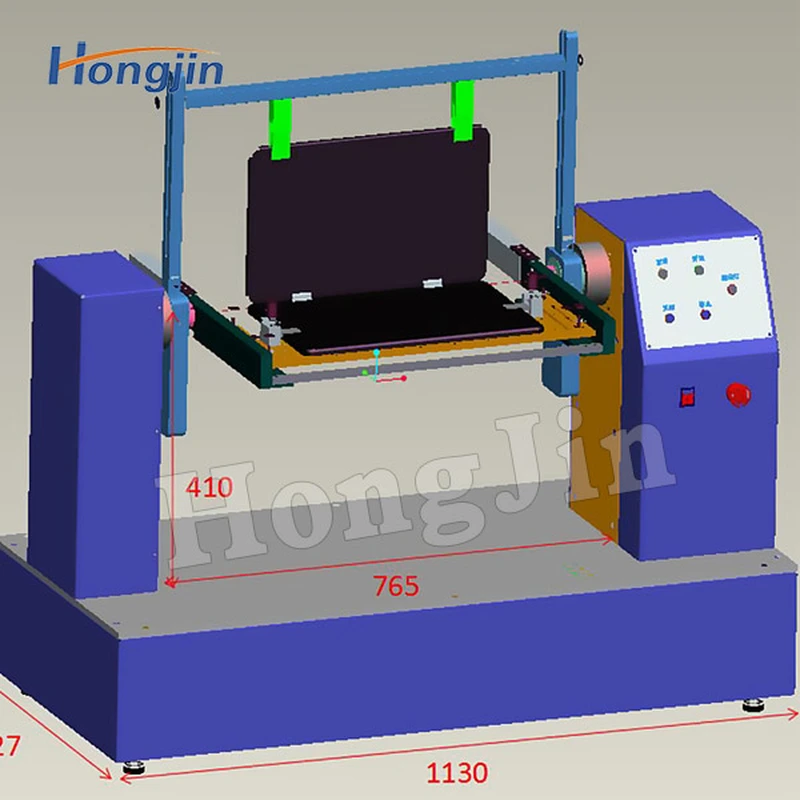

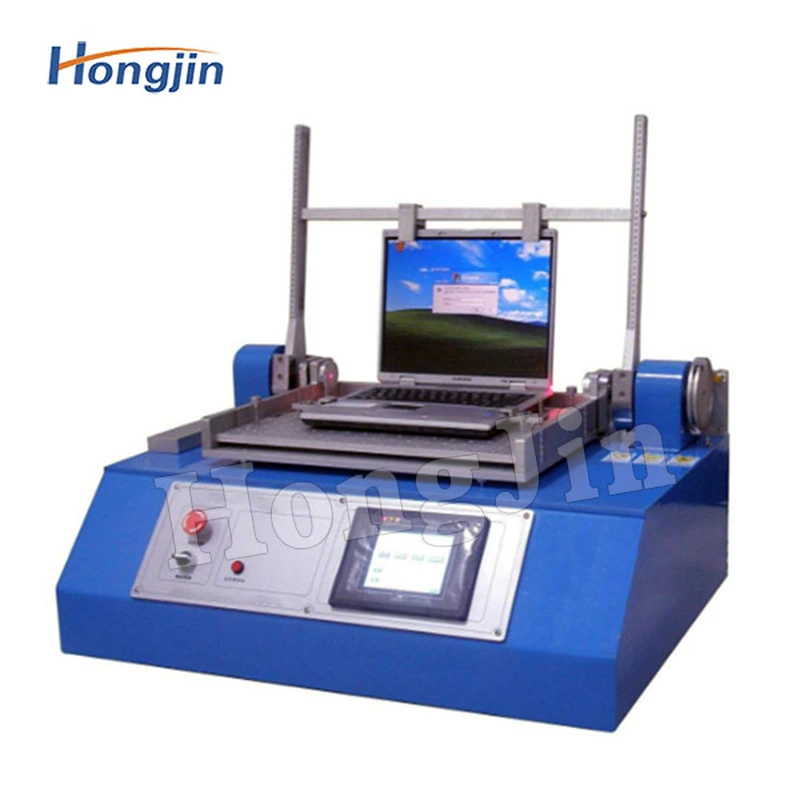

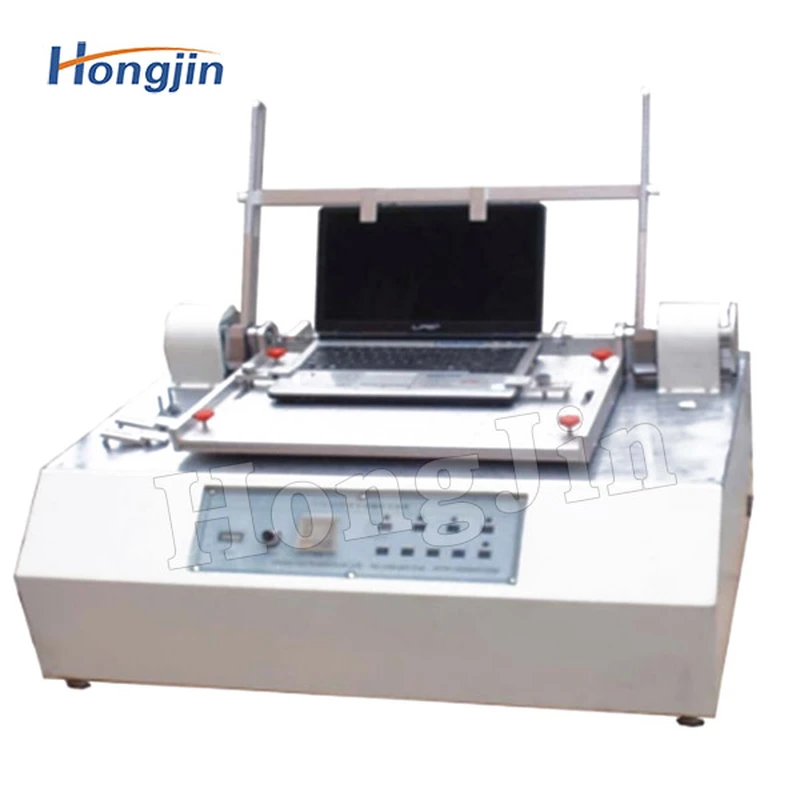

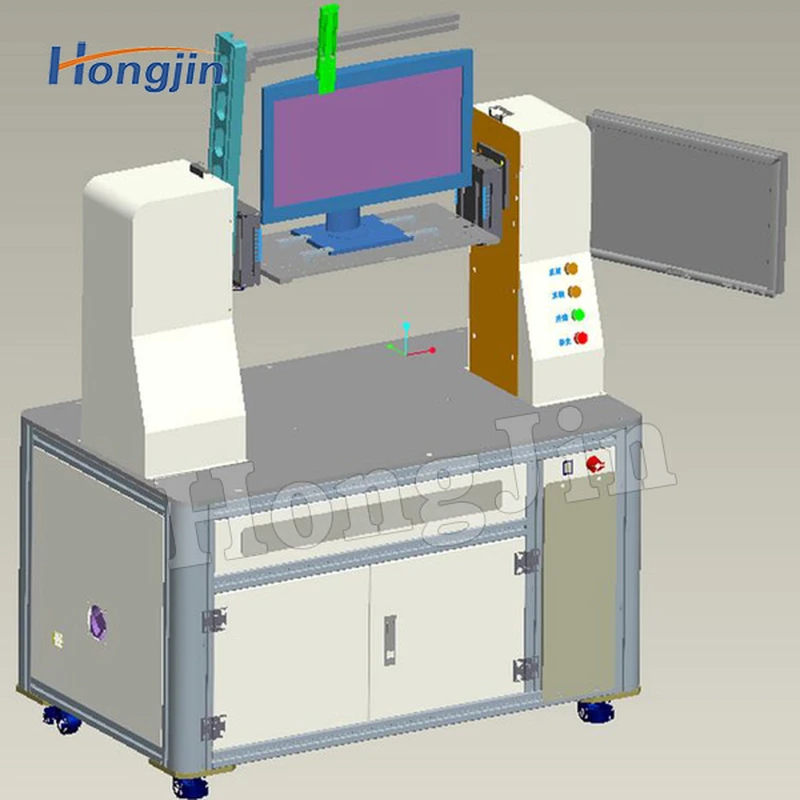

Laptop shaft life testing machine

The laptop spindle life tester is used for the opening and closing process life test and torque test of the laptop LCD screen, which is used to verify the operation life of the spindle and FPC, and also to test the mechanical stability of the connection structure. Advanced PLC touch screen is used to control the whole process of rollover life test. With adjustable speed, adjustable stroke, adjustable Angle, arbitrary quantity setting; Save data after arrival time or power failure. And equipped with high-precision motor for detection; It can realize high-speed and high-precision rollover life test of NOTE products.

описание

Product features:

1. Can set rotation Angle, speed, test times and adjust the height of the test bed. The test position of NOTE-BOOK can be adjusted freely;

2. Opening gap time can be set;

3. Can directly display the swing rate (times/per minute);

Product parameter table:

Angle setting	5～180 degrees
Times setting (MAX)	999999
Swing speed (MAX)	15 times/min (when the angle is 180 degrees)
Speed setting	stepless speed regulation
Machine size	730×635×790mm
Machine weight	85Kg
Power supply	1∮220V, 5A or specified
