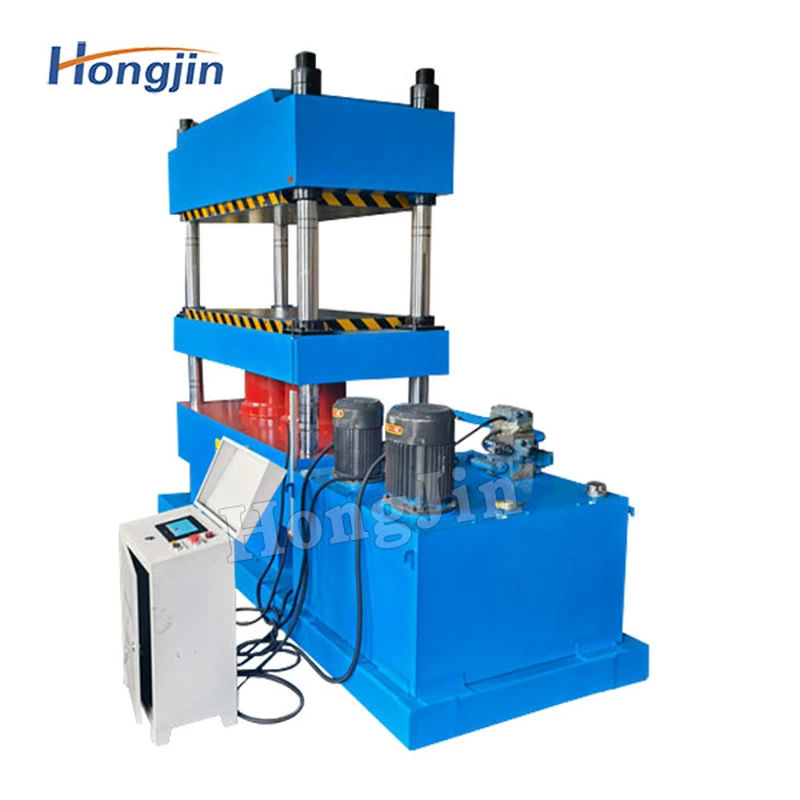

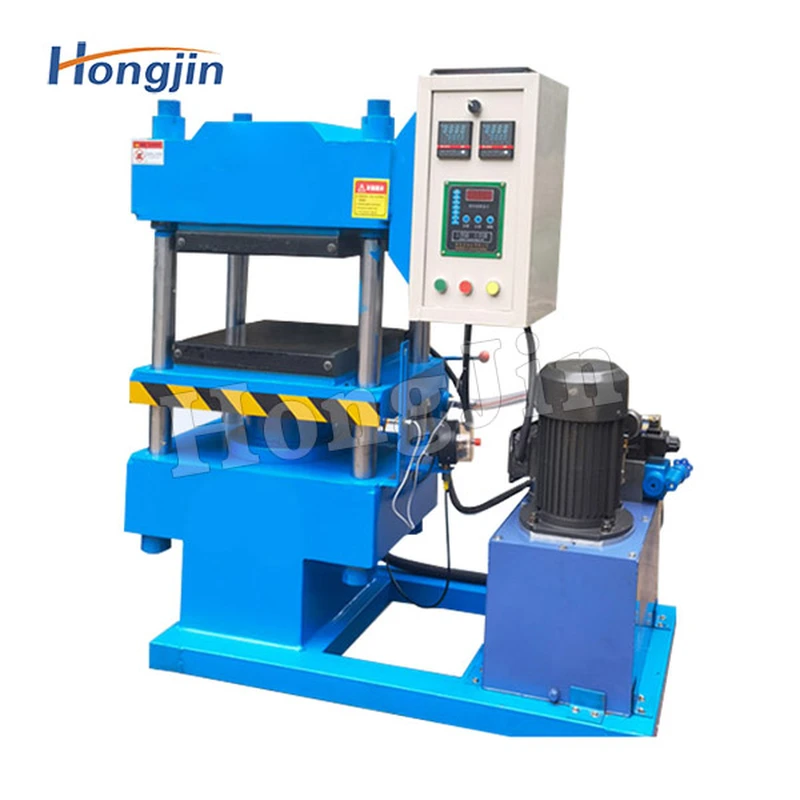

Hydraulic tire vulcanizer

Hydraulic Vulcanizing Machine Is A Kind Of Vulcanizing Mechanical Equipment Using Hydraulic System, Which Is Mainly Used For Vulcanizing Rubber In Industries Such As Tire Manufacturing And Rubber Product Production. Its Main Features Are Simple Structure, Convenient Operation, High Efficiency, And Controllable Molding Quality.

описание

Scope Of Application:

Hydraulic Vulcanizers Are Also Widely Used In The Production Of Rubber Products. Whether It Is Auto Parts, Commercial Rubber, Medical Equipment, Or Electronic Product Casings, Fire-Fighting Equipment, Mechanical Parts, Etc., Hydraulic Vulcanizing Machines Can Vulcanize Rubber Products Efficiently And Stably. During The Production Process, The Hydraulic Vulcanizer Can Adjust The Parameters Such As Vulcanization Temperature, Time And Pressure According To The Product Requirements, So As To Realize The Regulation Of The Molding, Hardness, Toughness And Other Properties Of Rubber Products, And Ensure The Quality And Service Life Of The Products.


Product parameter table


Parameter/ModelHJ-600HJ-1000HJ-1200HJ-1400
Working layers2
Steam inner diameter8208308401050
Total pressure kn600100012001400
Plunger diameter mm250300360360
high pressure mpa1314
low pressure mpa1.5
Airbag pressure mpa1.52.1
steam working pressure mpa0.6-0.8
Dimensions length * width * height (mm)1200*900*24001200*842*23581200*900*25001360*1050*3820
Weight (T)3.24.55.58
