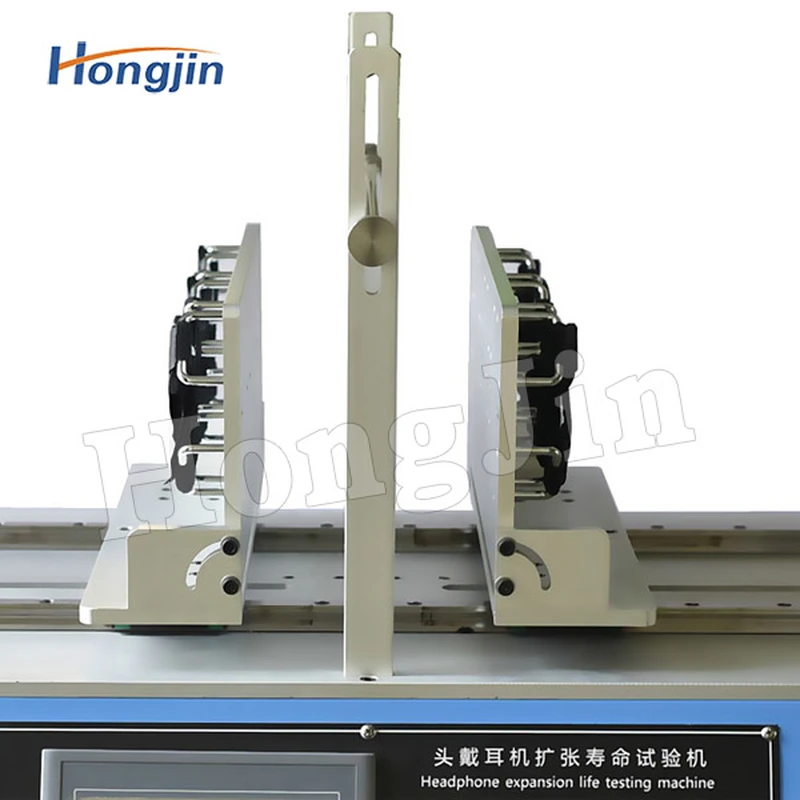

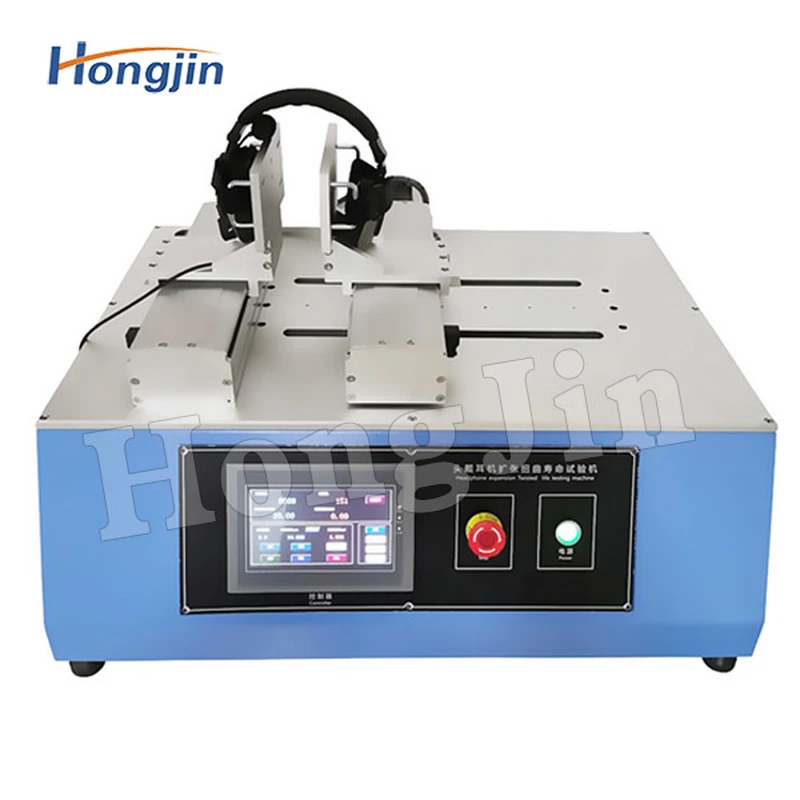

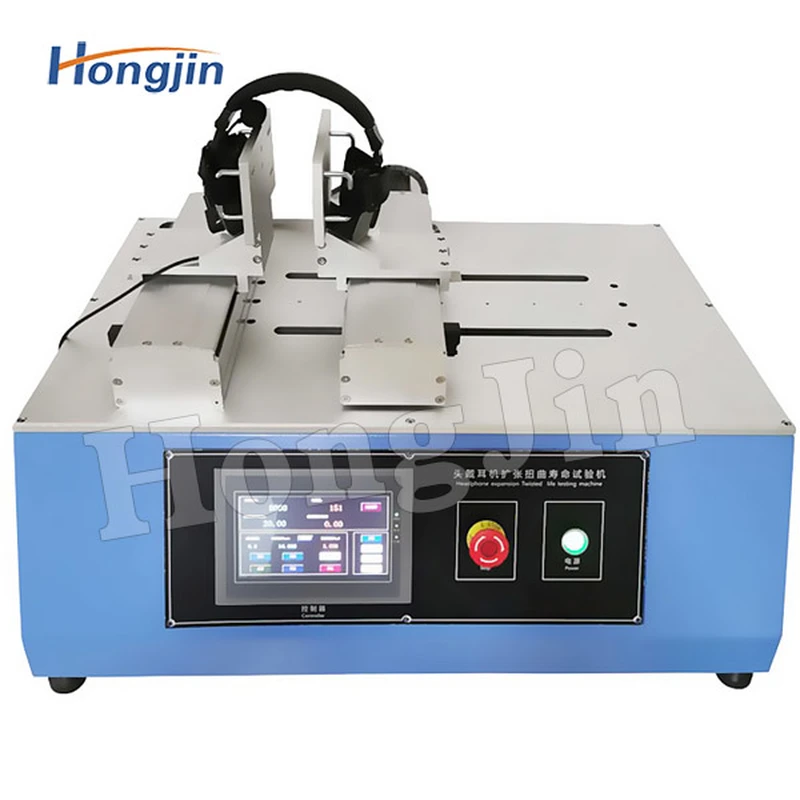

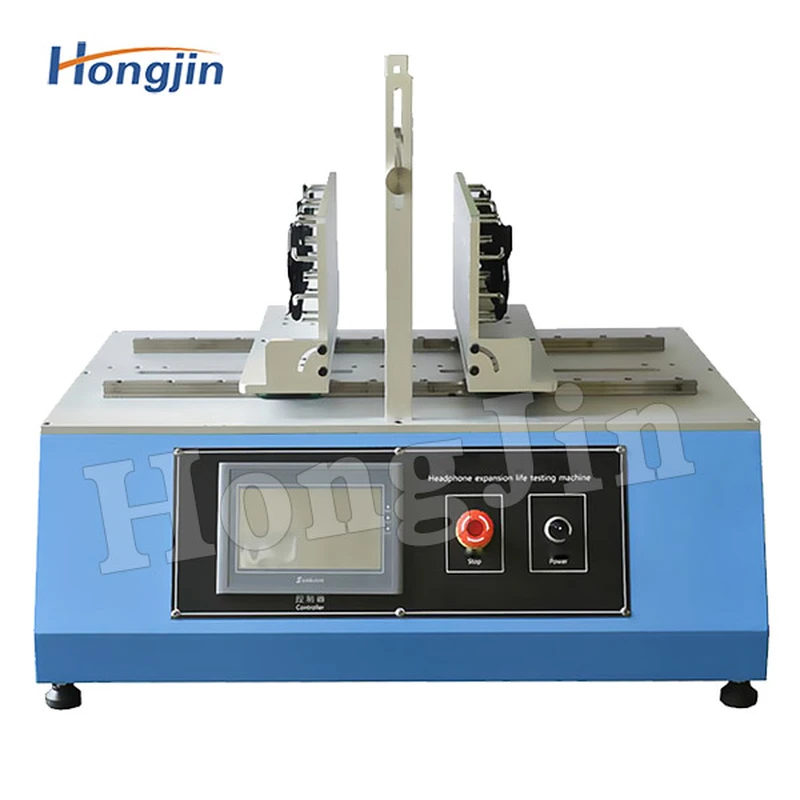

Headphone expansion life testing machine

Headphone expansion life testing machine

The expansion life tester is suitable for the expansion life test of the headset. The expansion test method is: after the headset is fixed by the left and right clamp, it is stretched to a certain distance in the left and right direction and then returned to the starting position. Its test trip can be set, after N tests, remove the headset to detect the headband performance.

описание

Equipment features:

1. Stepper servo motor as power source, precise positioning, stable torque output, low noise.

2. Linear guide rail, stable, reliable and durable performance.

3. Use 7-inch true color LCD touch screen and programmable controller to do motion positioning control.

4. Touch screen to set expansion travel, test speed, test times.

5. Extended life test of 3 sets of headsets can be tested simultaneously. (Can increase the force measurement system, real-time acquisition of test expansion tension)

control method	touch screen control
test station	Three-station linkage or customized according to customers
Frequency setting range	0-999999 arbitrary settings
Speed setting range	0-40 times/min can be set arbitrarily
Expand the setting range	One side 5-200mm can be set arbitrarily
Center hanging column height	50-350mm manual adjustment
Earpiece fixed angle	0-50° can be manually adjusted
Displacement resolution	0.01mm
Overall dimension	850600520mm
equipment weight	85KG
power supply	AC220V/50Hz
