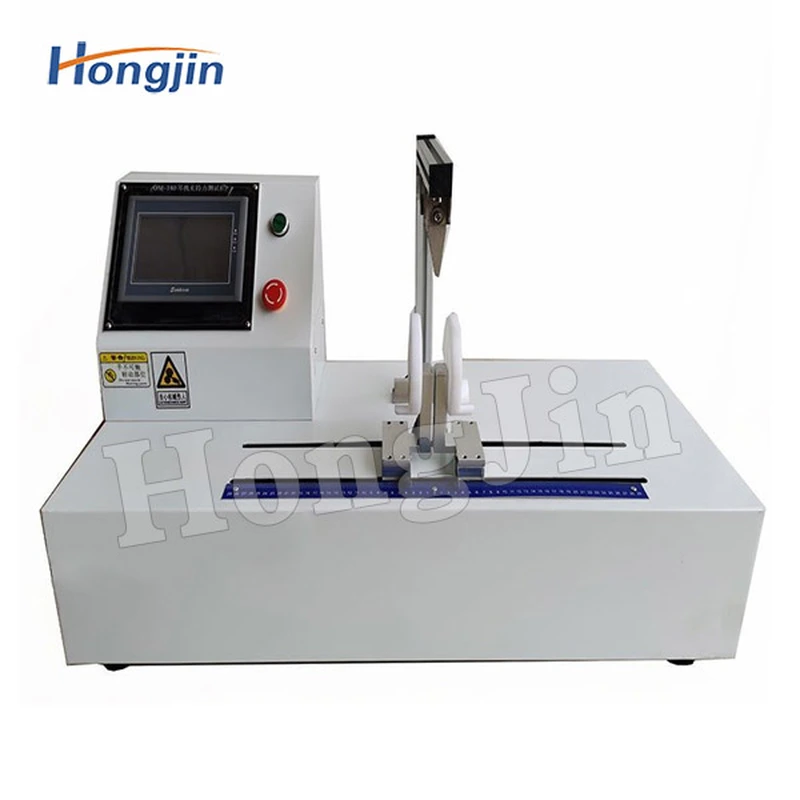

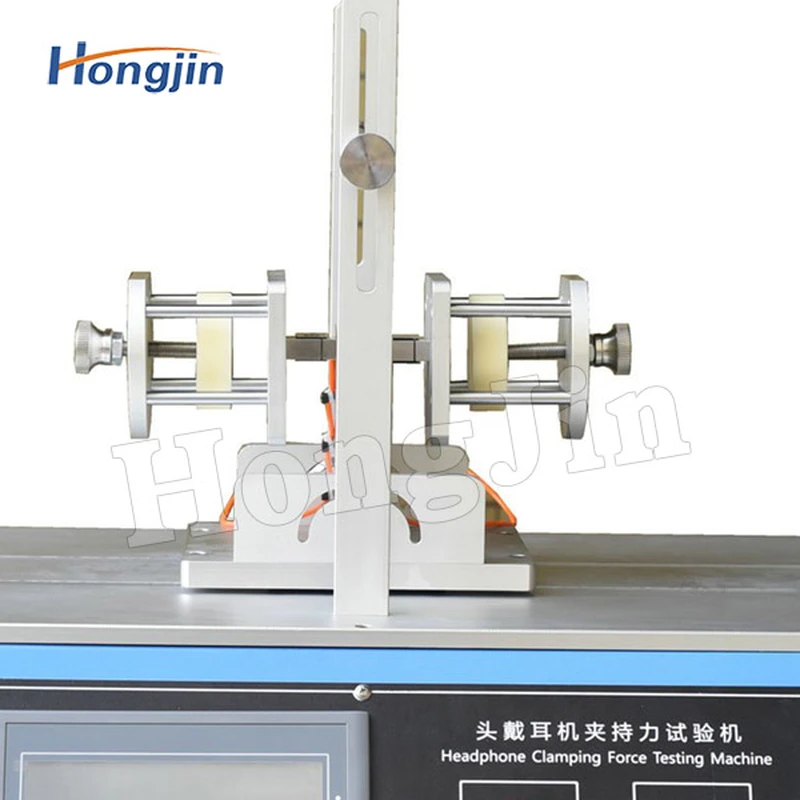

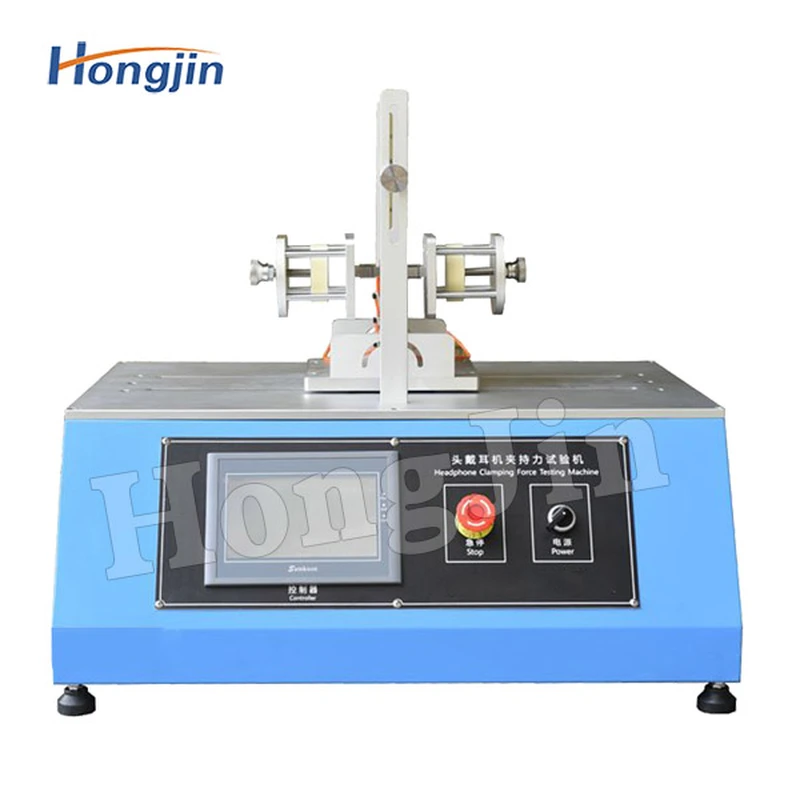

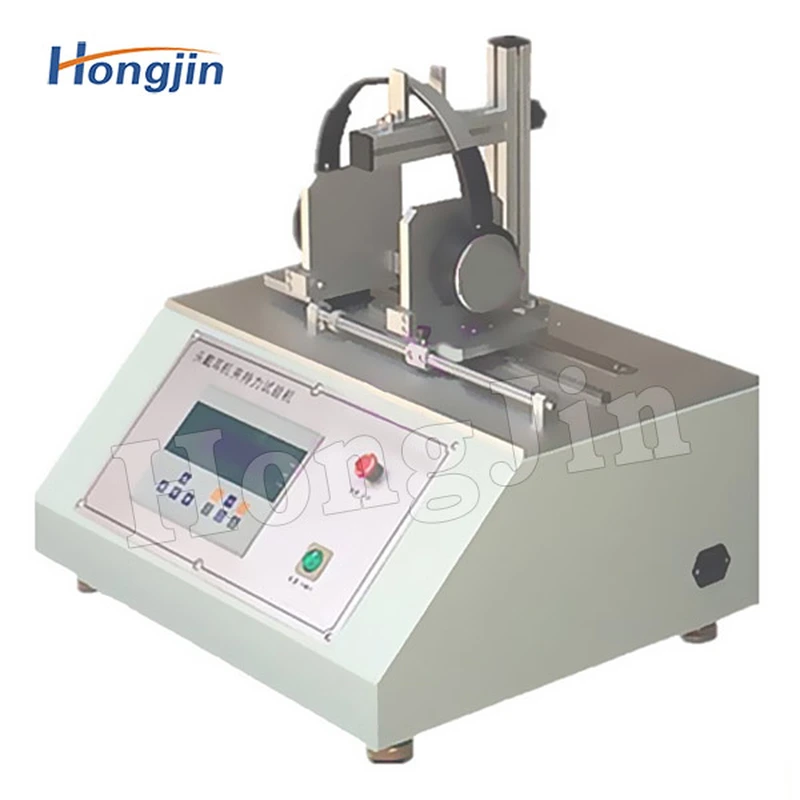

Headphone clamping force testing machine

The headphone clamping force tester is a test of the headphone contraction clamp force tester, which is a force value tester between the real open specimens, and the relationship between the distance placed on the head and the force after opening. It is a necessary testing equipment for each manufacturer to analyze the contraction force of headphones.

описание

Product parameter table


Determination of the maximum clamping force value5KG, 10KG, 20KG, 50KG
This machine is composed of sensor system, manual displacement control and liquid crystal display
Show maximum force hold0.01kg.f (or as the case may be)
unit displaymultiple forces
unit displayLB, N, KG (LCD screen)
standard distance80mm left and right
controlScrew + guide rail
Displacement rulersteel ruler
Machine Weight (Approx.)45kg
Machine size (L*W*H)760*230*530mm
