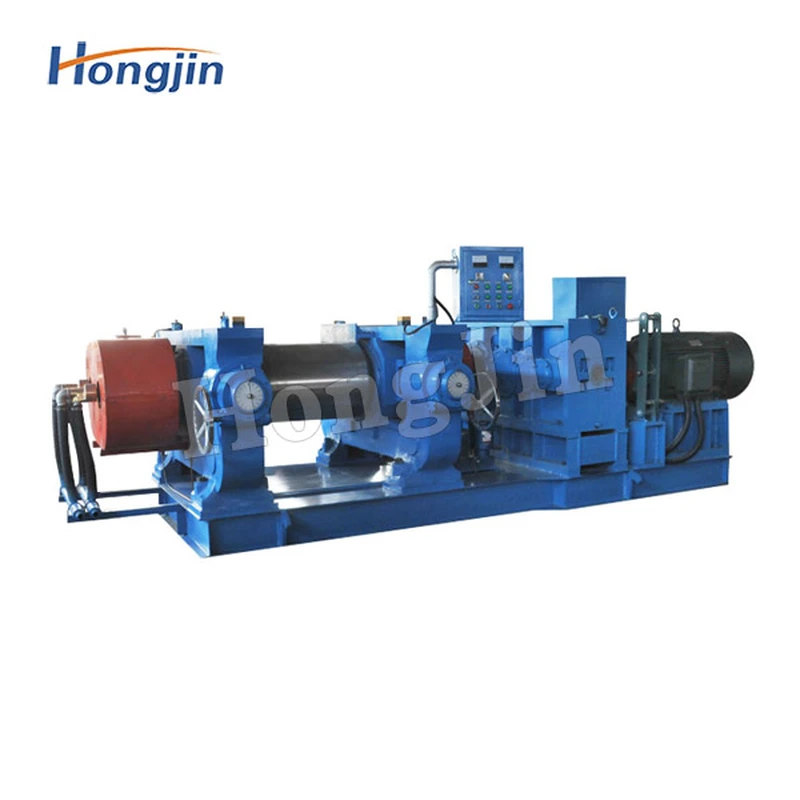

Gel breaking machines and refining machines

This machine series is mainly used for hot refining, flaking, plasticizing and mixing of rubber. The structural type is open gear transmission.

Product parameter table

Product number	HJ-400	HJ-450	HJ-560	HJ-400	HJ- 480
Working diameter of front roller (mm)	400	450	560	400(waist drum）	480（waist drum）
Rear roller working diameter(mm)	400 (Groove Roll）	450（Groove Roll）	510 （Groove Roll）	480（waist drum）	612(waist drum）
Roller Working Length(mm)	600	650	800	650	800
Front roller speed (m/min)	17.32	23.2	25.56	18.01	26.6
Roller speed ratio	1: 1.38	1: 1.38	1:1.30	1:1.88	1：1.75
Maximum roller distance (min)	8	8	15	10	15
Amount of glue added at one time (kg)	200 - 300	600-800	-1500	-300	-500
Motor power (kw)	45	55	75	55	75
Dimensions: length X width X height (mm)	3950×1800×1780	4770×1846×1835	5064×2284×1978	4770×2300×1835	5070×2800×1978
Product weight(kg)	7000	12000	19000	12800	20000
