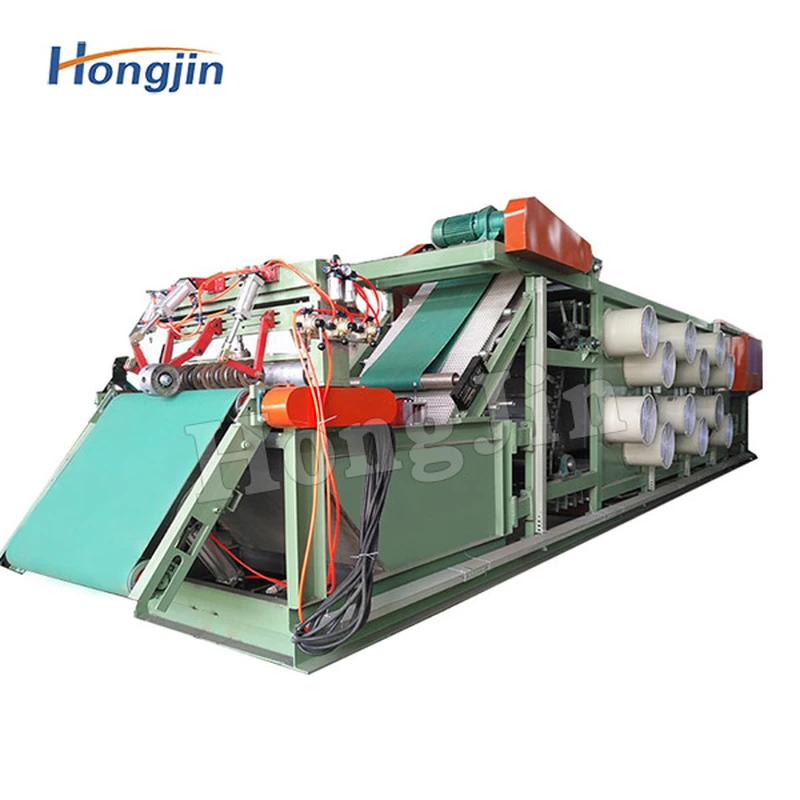

Film cooling machine

Product parameter table

Product number	HJ-600-700	HJ-800-900
Applicable film specifications	(4-12) ×600-700mm	(4-12) ×800-900mm
The maximum line speed of the front access conveyor belt	400m/min	400m/min
Hanging rod moving speed	0.117- 2.2 m/min	400m/min
axial fan	0.37kw 5760m³/h	0.37kw 5760m³/h
Pendulum amplitude and frequency	1.3m 10-16 times/min	1.3m 10-16 times/min
Film temperature after cooling	≤room temperature+5℃	≤room temperature+5℃
Lifting device variable frequency motor	XWD1.5-3-1/11	XWD7.5-7-1/43
Variable frequency motor for pendulum glue device	XWD1.1-5-1/87	XWD1.1-5-1/87
Hanging rod spacing	160 or 101.6	160 or 101.6
The maximum hanging height of the film	1400mm	1400mm
