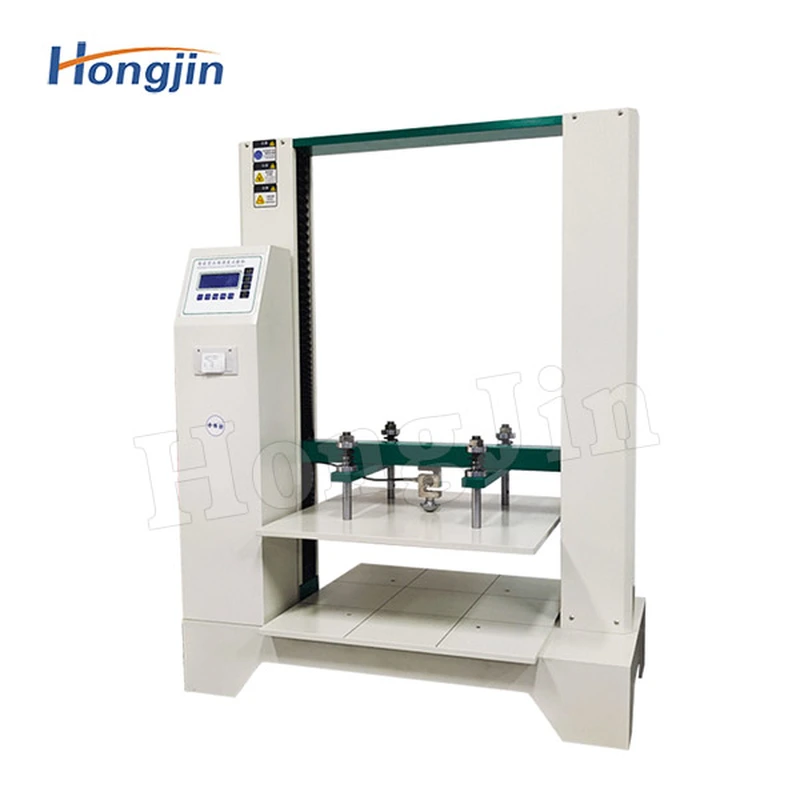

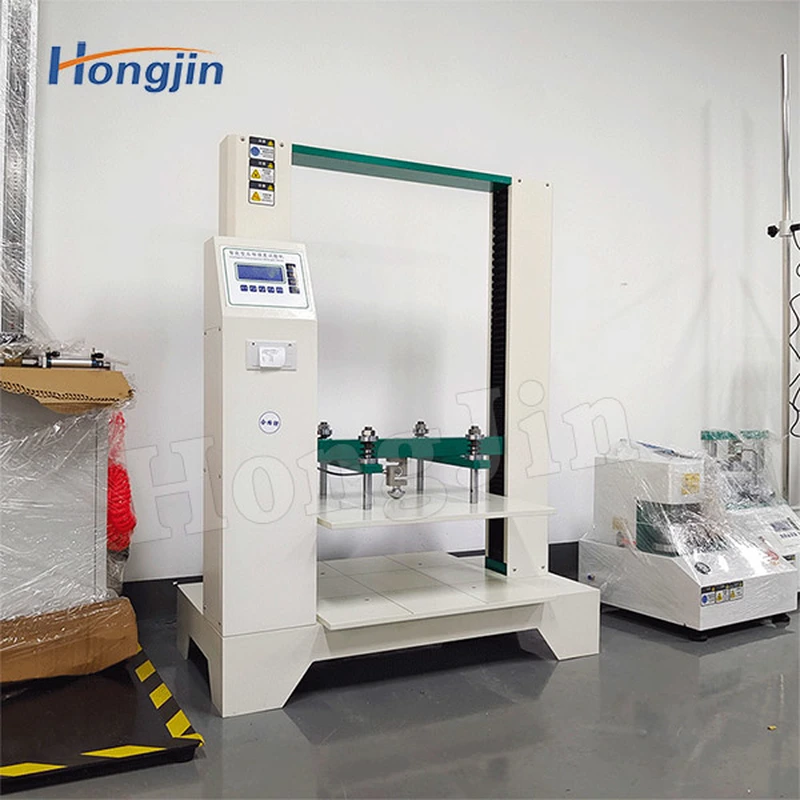

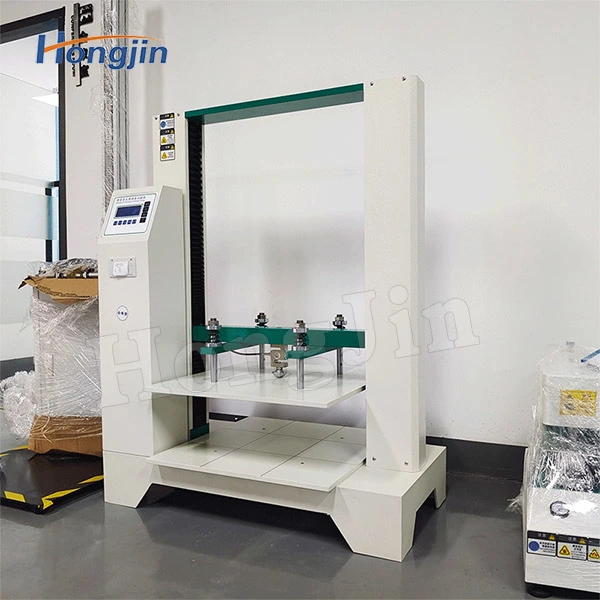

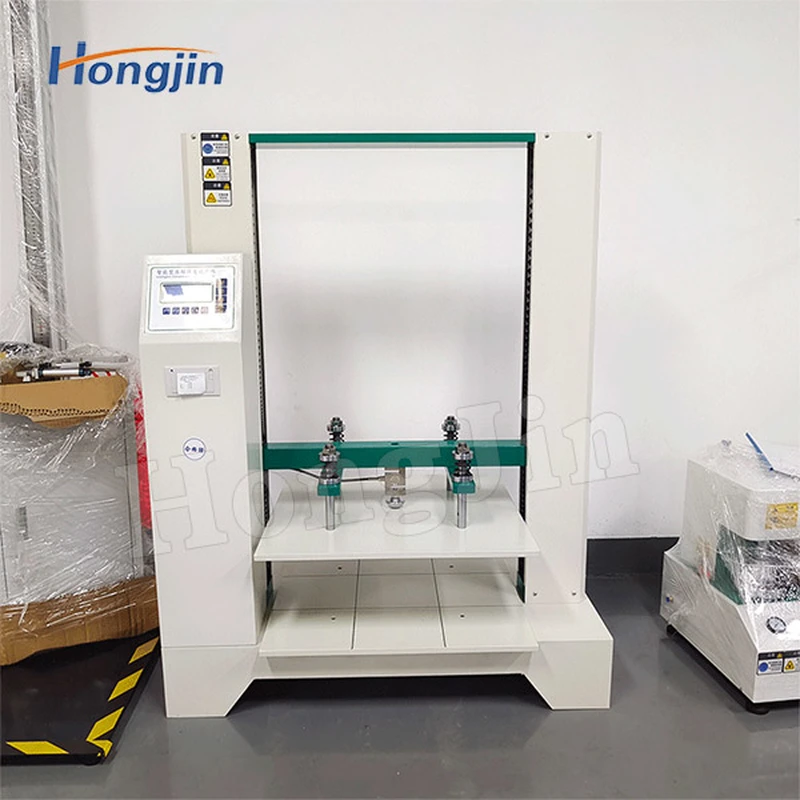

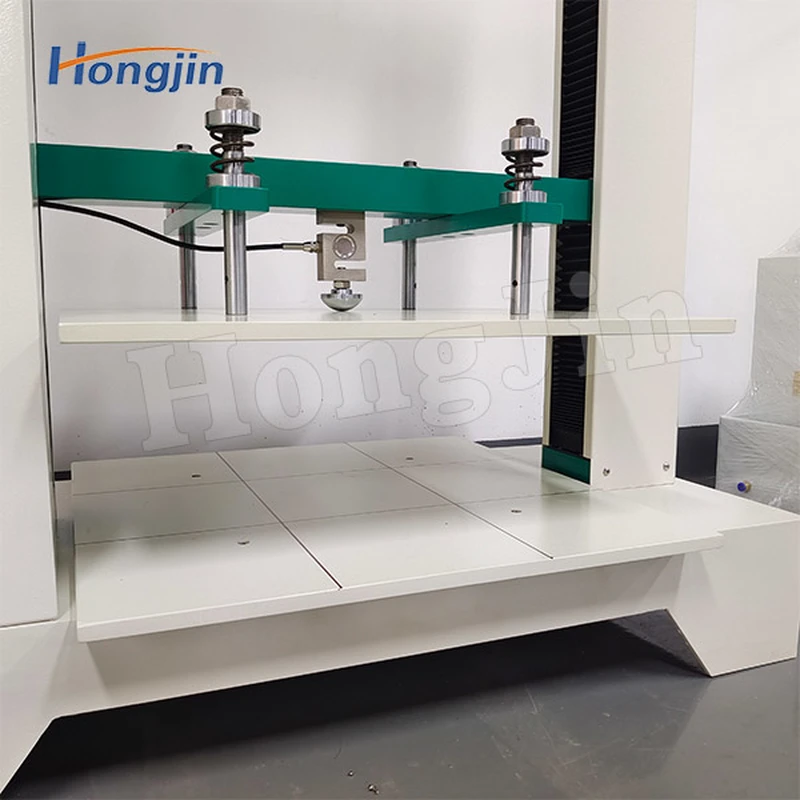

The testing machine used to test the compressive performance of carton is suitable for the compression, deformation and stacking test of corrugated carton, honeycomb panel box and other packaging. Taking into account the compression test of plastic buckets (edible oil, mineral water), paper buckets, paper boxes, paper cans, container buckets (IBC buckets), and other containers, used to determine the compression resistance of cartons, and can be used to test the pressure stacking, the test results can be used as an important reference for the height of the factory stacking finished products or an important basis for the design of packaging boxes.
Product features
1, after the completion of the test, automatic return function, automatically judge the crushing force and automatically save the test data.
2, three kinds of speed can be set, all Chinese LCD operating interface, a variety of units to choose from.
3, can input the relevant data and automatically convert the compressive strength, with packaging stacking test function; Can directly set the force, time, after the completion of the test automatically stop.
4. Three working modes:
Strength test: can measure the maximum pressure resistance of the box;
Fixed value test: according to the set pressure to detect the overall performance of the box;
Stacking test: According to the requirements of the national standard, the stacking test can be carried out under different conditions such as 12 hours, 24 hours.
Parameter table
| Capacity selection | 0-1T (can be customized according to customer requirements) |
| Accuracy level | Level 1 |
| Control mode | Microcomputer control (optional computer operating system) |
| Display mode | Electronic LCD display (or computer display) |
| Force unit switching | kgf, gf, N, kN, Ibf |
| Stress unit switching | MPa, kPa, kgf/cm2, lbf/in2 |
| Displacement unit | mm, cm, in |
| Force resolution | 1/100000 |
| Display resolution | 0.001 N |
| Machine travel | 600 |
| Platen size | 600 * 600 * 600 |
| Test speed | 5mm to 100mm/min can be any input speed |
| Software function | Chinese and English language exchange |
| Stop mode | Overload stop, emergency stop key, specimen damage automatic stop, upper and lower limit setting automatic stop safety device overload protection, limit protection device. |
| Engine power | AC variable frequency motor drive controller |
| Mechanical system | High precision ball screw |
| Power supply | AC220V/50HZ-60HZ 4A |
| Machine weight | About 350KG |
| Performance characteristics | You can set the percentage breaking value and automatically stop the machine. You can enter the menu and select four different speeds, and you can check the average value of all test results and the single result. |
